PORTABLE SCREENING PLANT

PROVIDE MAXIMUM UPTIME AND LOW COST PER TONNE OPERATION

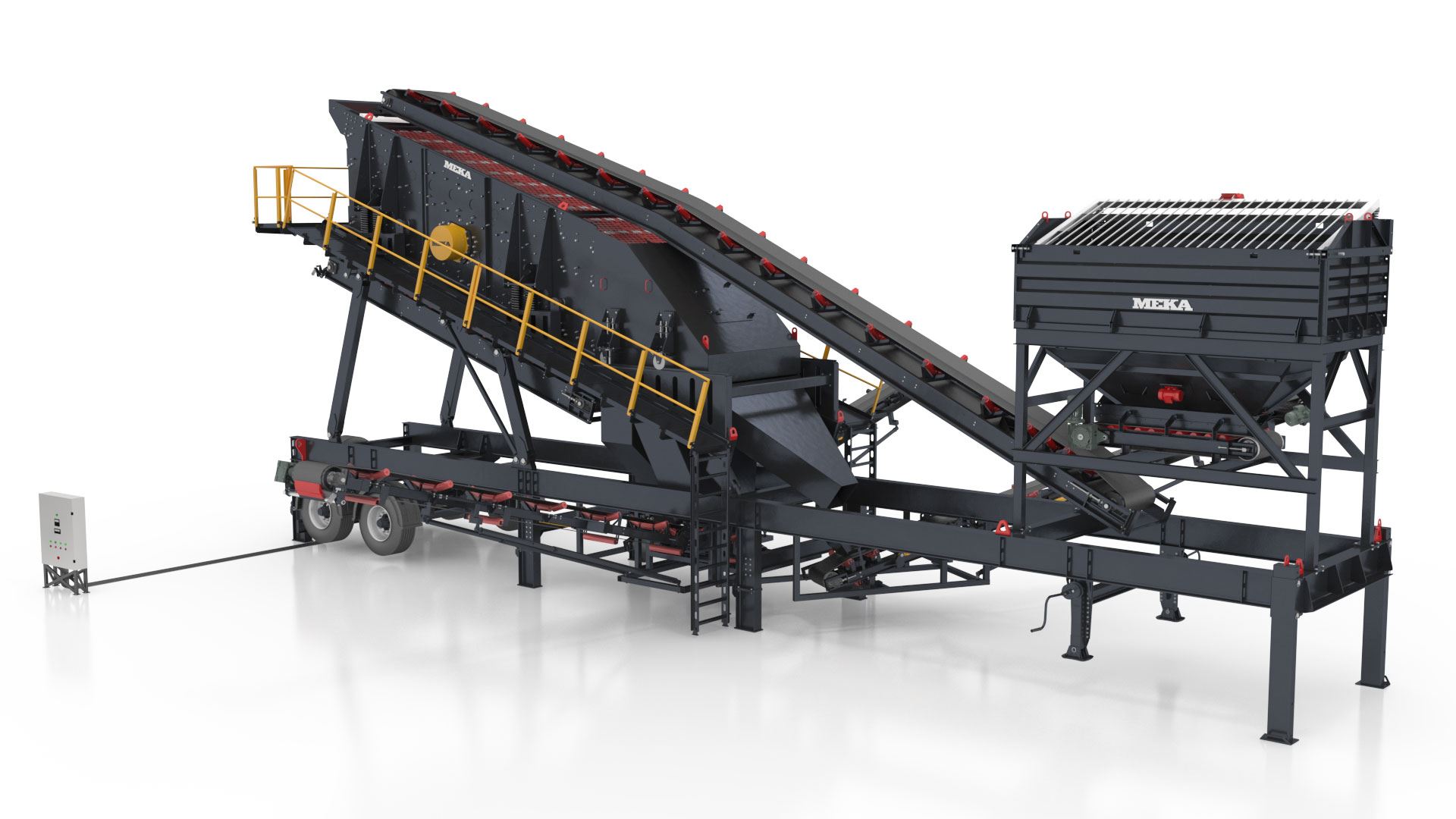

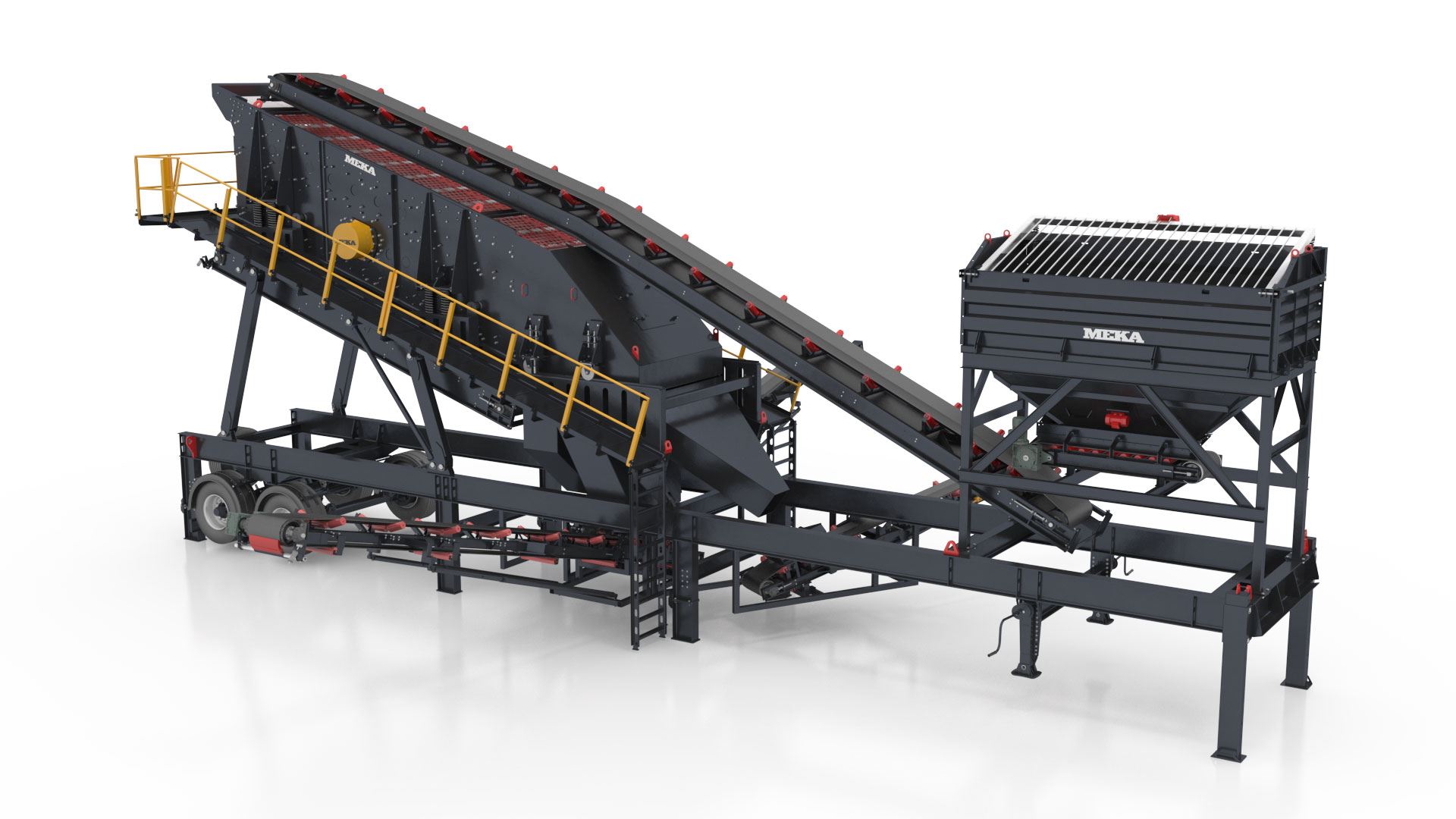

Portable Inclined screening plants are wheel-mounted and include a feed hopper with belt feeder, feed conveyor, screen and product conveyors. With many advanced design features common throughout this range, all models combine mobility and flexibility, with high quality production, maximum uptime and low cost per tonne operation

APPLICATIONS
These plants have been designed for small to medium sized operations for splitting of up to 4 products.
Powered by electricity, they are the optimal choice if you want to move the plant from one site to another periodically.

WHY Crash Crusher PORTABLE SCREENING PLANT?
•   Compact layout and excellent stability
•   Highly efficient and accurate on board screen for product classification, produces up to 3 grades of aggregate and 1 grade of sand
•   Feed hopper and belt feeder providing the desired, continous feed rate to screen
•   Operator-friendly unit with spacious and accessible platforms

HIGHLIGHTS
•   Washing system for wet processing, including wash screen and fine/coarse material washers(Optional)
•   Rubber and Polyurethane screen media for the screening of highly corrosive materials(Optional)
•   Manual or hydraulic tipping reject grid (Optional)
•   Hydraulic support legs, which enable yet quicker and easier set-up (Optional)

PORTABLE SCREENING PLANT / TECHNICAL SPECIFICATIONS

metric imperial	MP 1650/3-F	MP 2050/3-F	MP 2060/3-F
	HOPPER
Volume Volume	10 m³ 13 yd³	10 m³ 13 yd³	10 m³ 13 yd³
	BELT FEEDER
Belt Width Belt Width	800 mm 31"	1 000 mm 39"	1 000 mm 39"
Length Length	2 000 mm 6 ft 7 in	2 000 mm 6 ft 7 in	2 000 mm 6 ft 7 in
Motor Power Motor Power	5.5 kW 7.5 HP	5.5 kW 7.5 HP	5.5 kW 7.5 HP
	FEEDING CONVEYOR
Belt Width Belt Width	800 mm 47"	1 000 mm 63"	1 000 mm 63"
Length Length	11 000 mm 36' 1"	11 000 mm 36' 1"	12 000 mm 36' 1"
Motor Power Motor Power	2 x 5.5 kW 2 x 5.5 HP	2 x 7.5 kW 2 x 7.5 HP	2 x 7.5 kW 2 x 7.5 HP
	SCREEN
Model	MS 1650/3 MS 1650/3	MS 2050/3 MS 2050/3	MS 2060/3 MS 2060/3
Belt Width Belt Width	1 600 mm 5.2'	2 000 mm 6.6'	2 000 mm 6.6'
Length Length	5 000 mm 16.4'	5 000 mm 16.4'	6 000 mm 20'
Decks Decks	3 3	3 3	3 3
Motor Power Motor Power	15 kW 20 HP	18.5 kW 25 HP	22 kW 30 HP
	BOTTOM CHUTE CONVEYOR
Belt Width Belt Width	1 200 mm 47"	1 600 mm 63"	1 600 mm 63"
Length Length	5 000 mm 16' 5''	5 000 mm 16' 5''	6 000 mm 19' 8''
Motor Power Motor Power	2 x 4 kW 2 x 5.5 HP	2 x 5.5 kW 2 x 7.5 HP	2 x 5.5 kW 2 x 7.5 HP
	FRONT CHUTE CONVEYORS (2 PCS)
Belt Width Belt Width	650 mm 26"	800 mm 31"	800 mm 31"
Length Length	8 000 mm 26' 3''	8 000 mm 26' 3''	8 000 mm 26' 3''
Motor Power Motor Power	5.5 kW 7.5 HP	7.5 kW 10 HP	7.5 kW 10 HP
	TRANSPORT DIMENSIONS
Length Length	15 000 mm 49' 3''	15 000 mm 49' 3''	16 400 mm 53' 10''
Width Width	2 800 mm 9' 2''	3 200 mm 10' 6''	3 200 mm 10' 6''
Height Height	4 300 mm 14' 1''	4 300 mm 14' 1''	4 300 mm 14' 1''
Weight Weight	34 000 kg 75 000 lbs	36 000 kg 79 400 lbs	38 000 kg 83 800 lbs
	OPERATING DIMENSIONS
Length Length	15 000 mm 49' 3''	15 000 mm 49' 3''	16 400 mm 53' 10''
Width Width	2 800 mm 49' 3''	3 200 mm 51' 2''	3 200 mm 51' 2''
Height Height	4 300 mm 23' 8''	4 300 mm 23' 8''	4 300 mm 24' 11''
