TERTIARY IMPACT CRUSHER

THE SAND MAKER

Tertiary impact crushers are manufactured with different rotor sizes and the required motor power is selected according to the application. The strength of Tertiary impact crushers (MTI) makes them ideal for every kind of application in many different configurations. Tertiary impact crushers (MTI) have demonstrated their effectiveness in many missions from crushing low abrasive materials to industrial applications and recycling.

APPLICATIONS

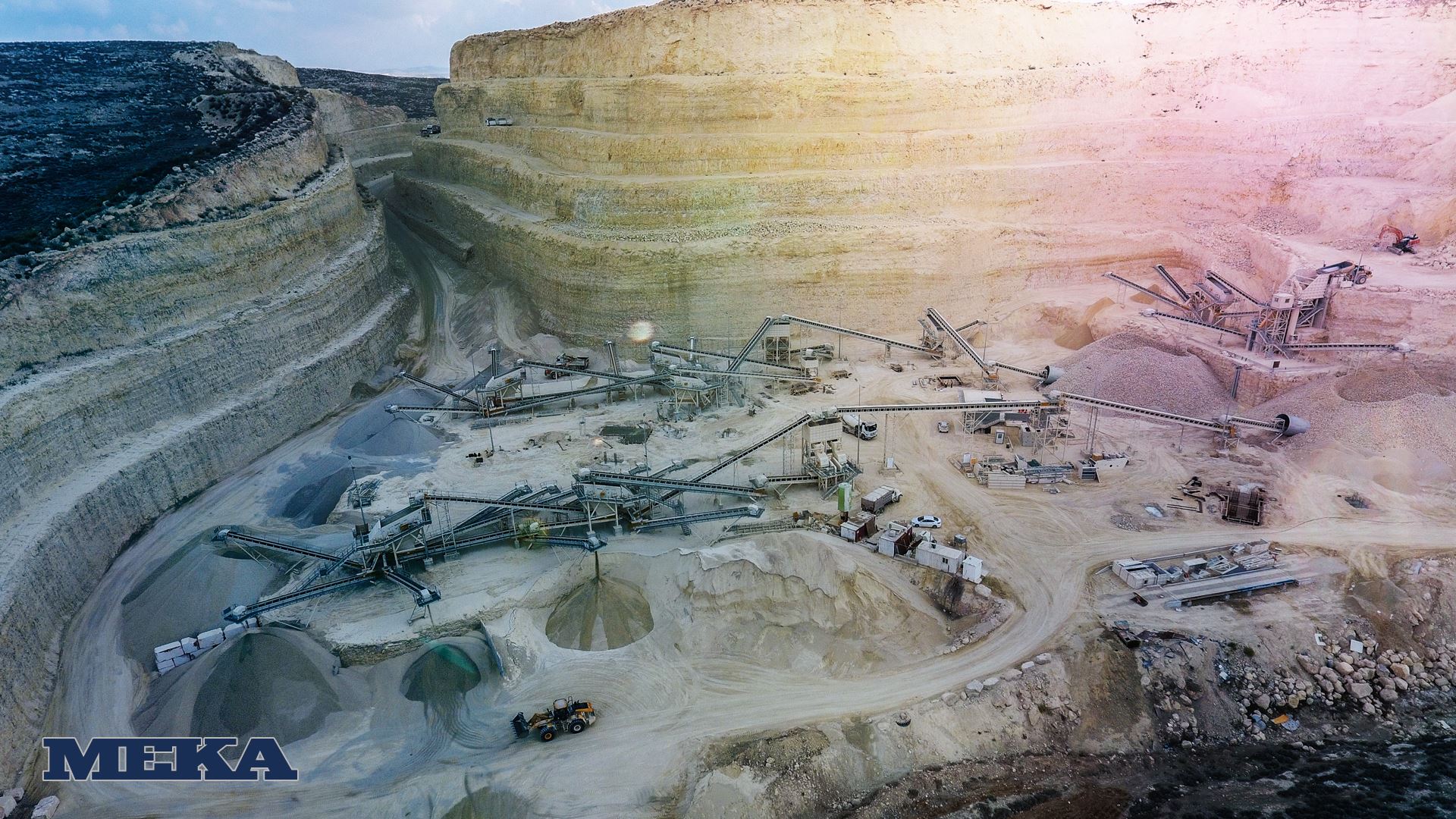

QUARRIES
•   Heat Treated, Dynamically Balanced, Hard-Surfaced Rotor
•   Production of manufactured sand
•   Shaping of flaky aggregates to obtain cubical aggregates

INDUSTRIAL MINERALS
•   With minimum capital and operational costs
•   Excellent particle shape down to micron sizes

WHY Crash Crusher TERTIARY IMPACT CRUSHER?

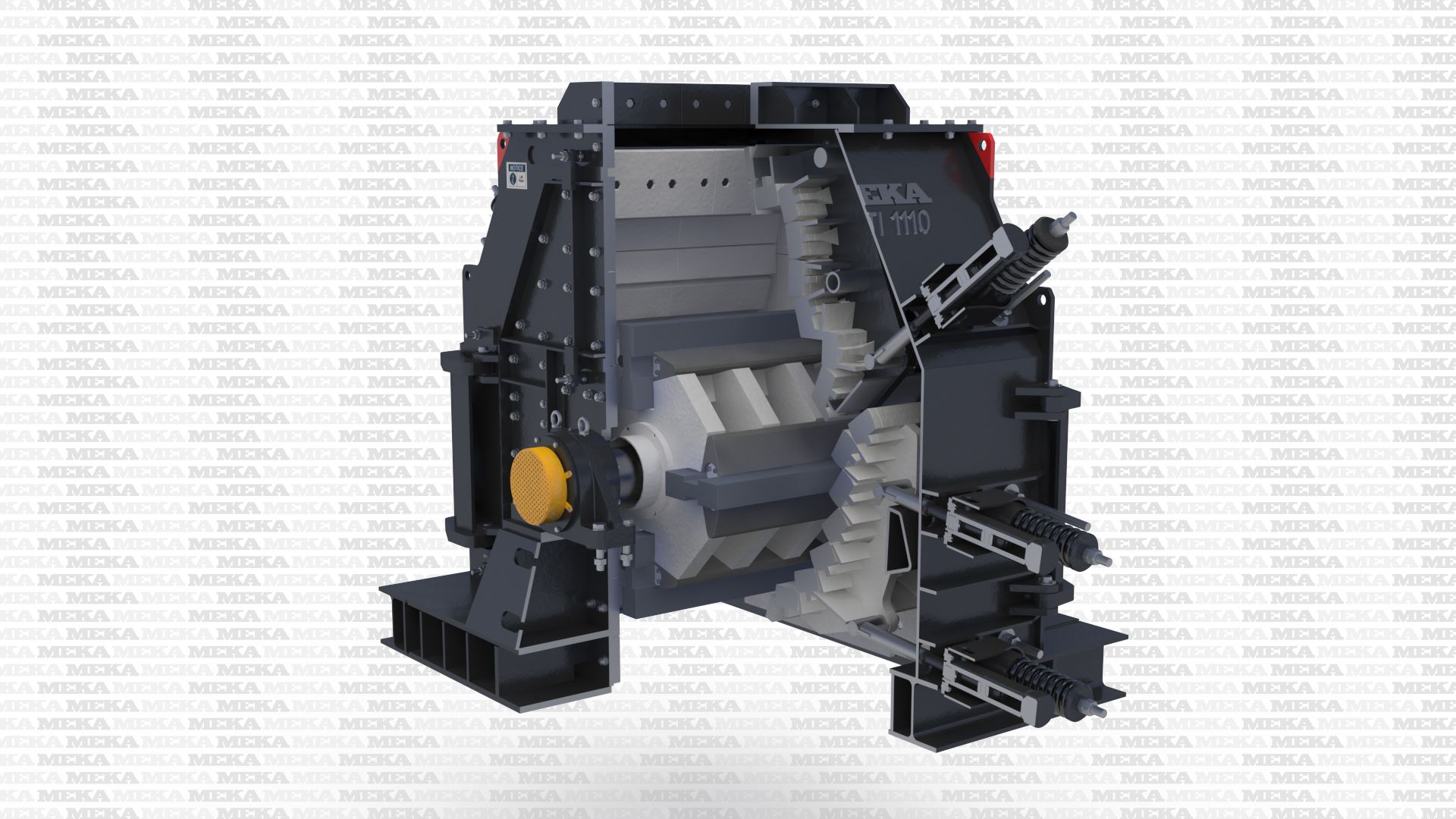

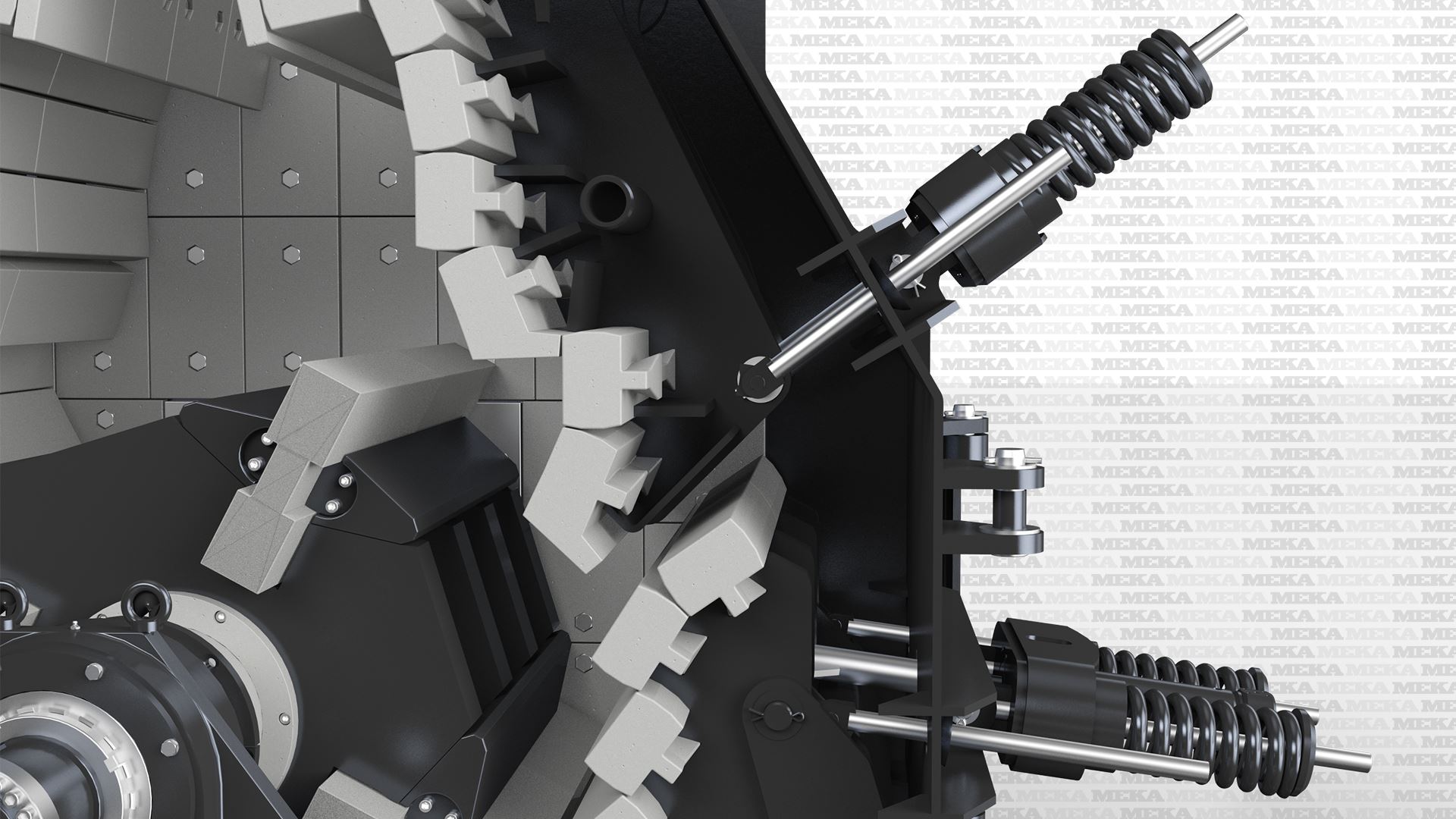

•   Symmetric Crushing Chamber Allows for better utilization of wear parts
The rotors in our MTI Series crushers are able to operate in both directions, so when the wear parts are worn out for one side of the crusher, the operators can change the rotor’s operating direction to the other side. This method decreases inventory costs for clients by reducing maintenance requirement time and parts cost

•   High-Speed Rotor Produces More Fines
The rotor with high inertia improves crushing reduction and provides stability in the process, reducing energy consumption and increasing long-term performance.

•   Manufactures sand from limestone and dolomite
High quality and cubical shape products with low filler content

•   Upto 150mm feed size
Heavy rotor and crushing chamber design in addition to materials selected for their outstanding wear resistance further reducing operating and wear costs.

HIGHLIGHTS
•   Heat Treated, Dynamically Balanced, Hard-Surfaced Rotor

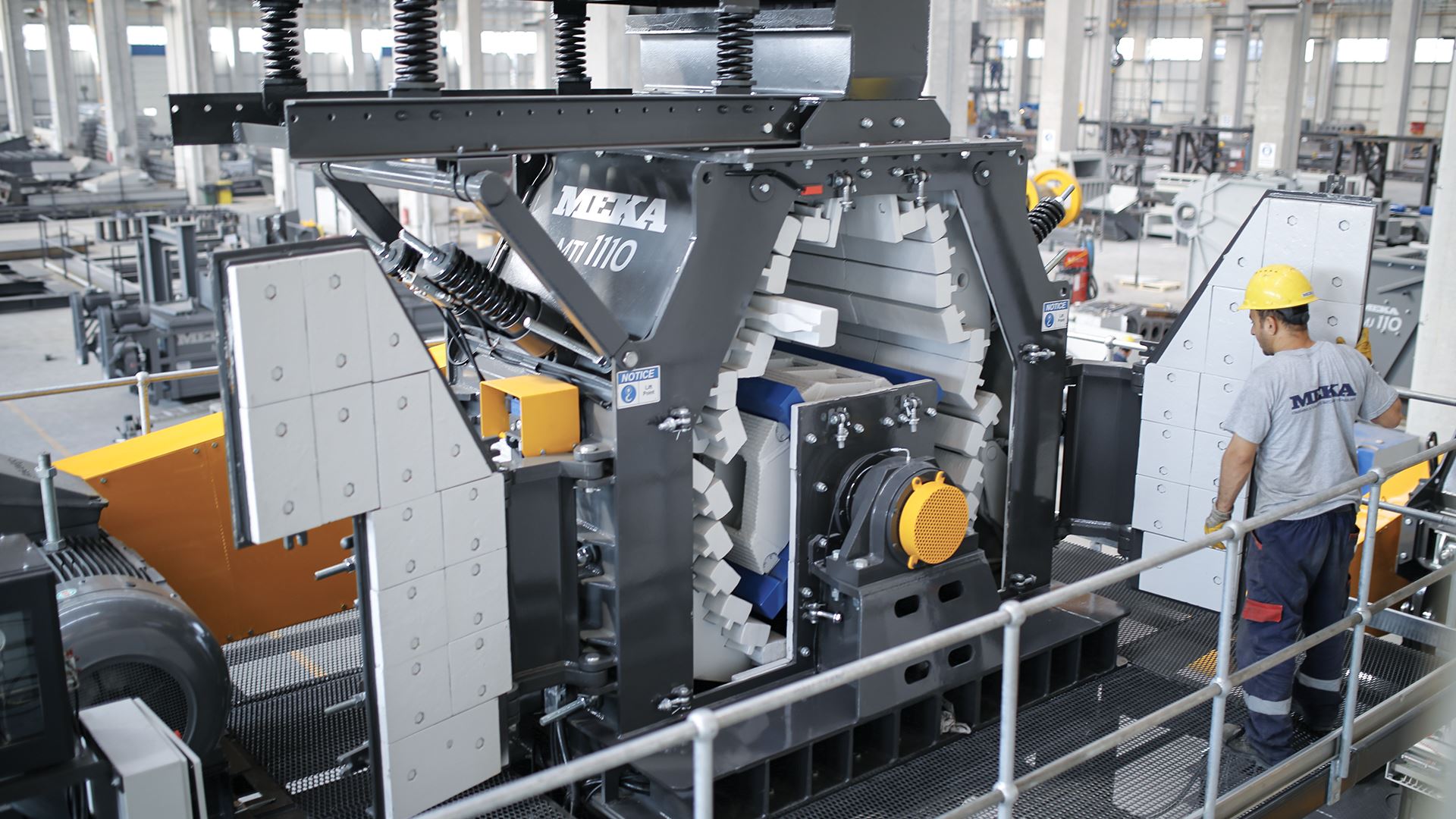

•   Opening Crushing Chamber for easy maintenance

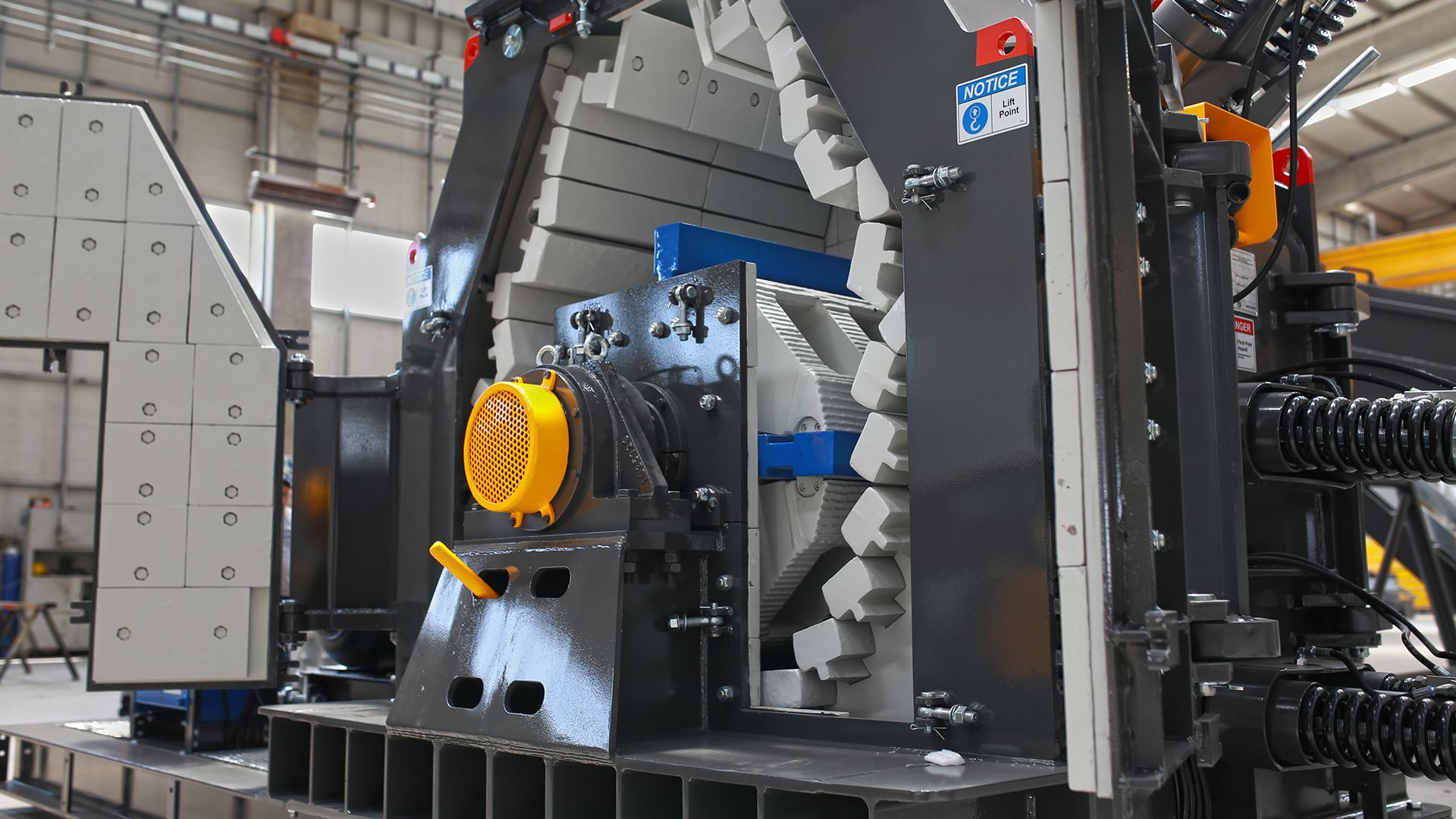

•   Easy blow bar attachment system that provides a higher degree of reliability
•   Best grain shape with high quality grain proportion

Crash Crusher Mineral Processing Solutions PDF, 4.71 MB

TERTIARY IMPACT CRUSHER / TECHNICAL SPECIFICATIONS

metric imperial	MTI 1105	MTI 1110	MTI 1115	MTI 1307	MTI 1314
Rotor Diameter (mm) Rotor Diameter (inch)	1100 43	1100 43	1100 43	1286 51	1286 51
Rotor Width (mm) Rotor Width (inch)	500 20	1000 39	1500 59	655 26	1355 53
Feed Opening (mm) Feed Opening (inch)	520x310 20x12	1020x310 40x12	1520x310 60x12	690x210 27x8	1390x210 55x8
Maximum Feed Size (mm) Maximum Feed Size (inch)	150 6	150 6	150 6	90 6	90 6
Capacity (mtph) Capacity (stph)	100-120 110-130	220-250 240-275	280-320 310-350	100-120 110-130	220-250 240-275
Power (kW) Power (HP)	110 150	200-250 275-340	315 430	90-132 125-180	160-250 220-340
Weight (kg) Weight (lbs)	8750 19290	14000 30860	17470 38510	8400 18520	13480 29720

*For material weighing 1.6 t/m³ or 100 lbs/ft³.
Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design.

** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes.

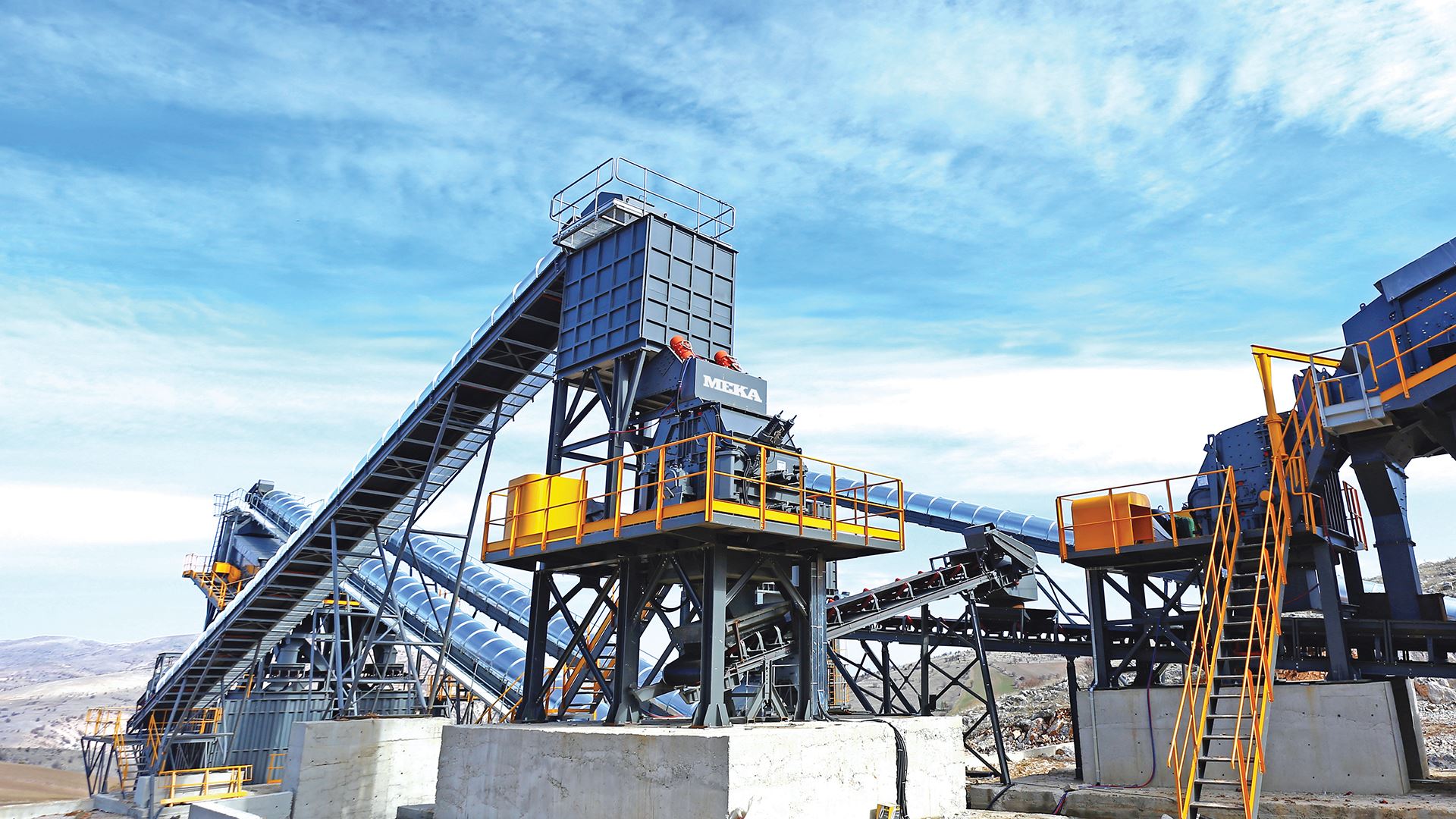

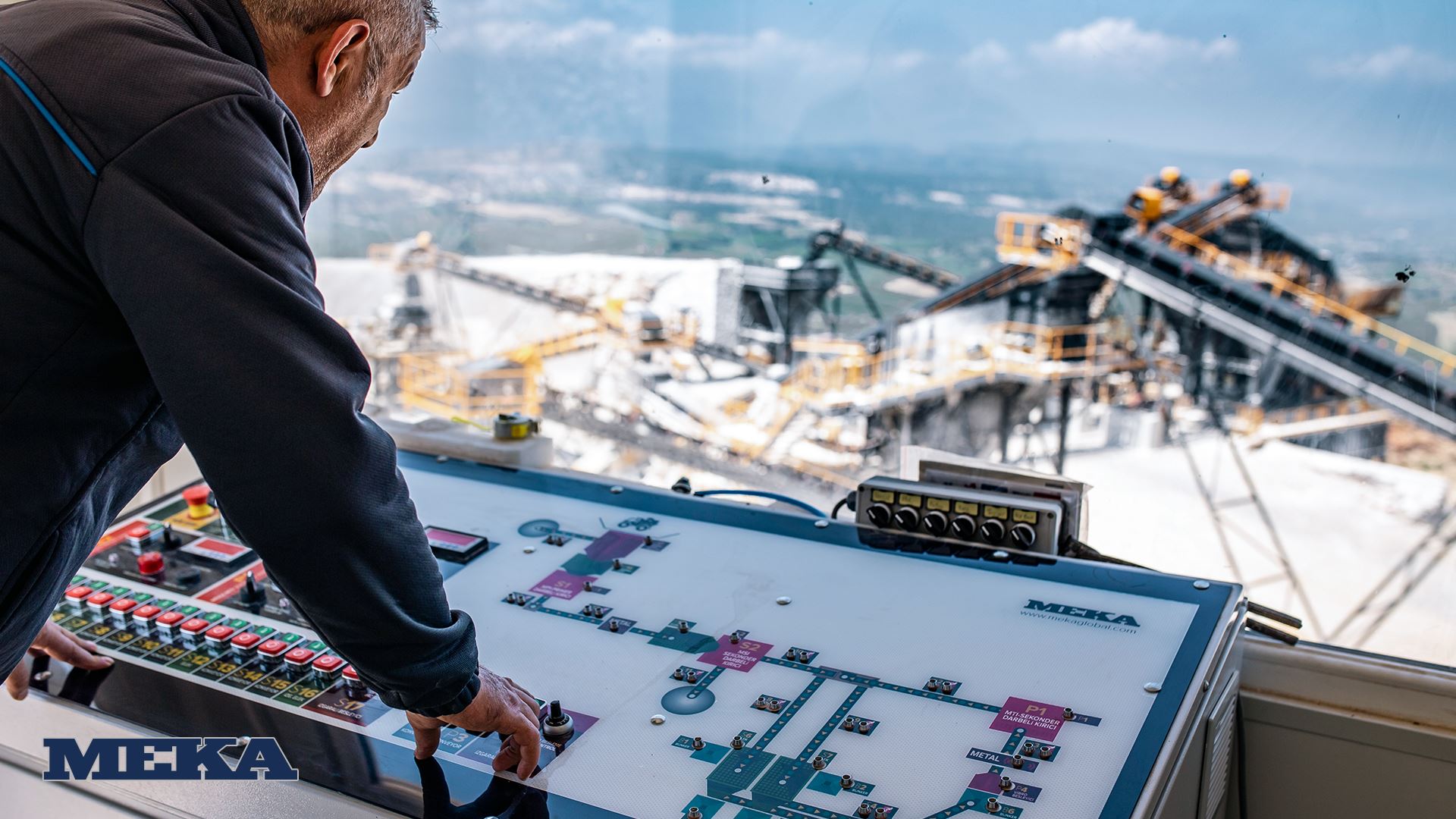

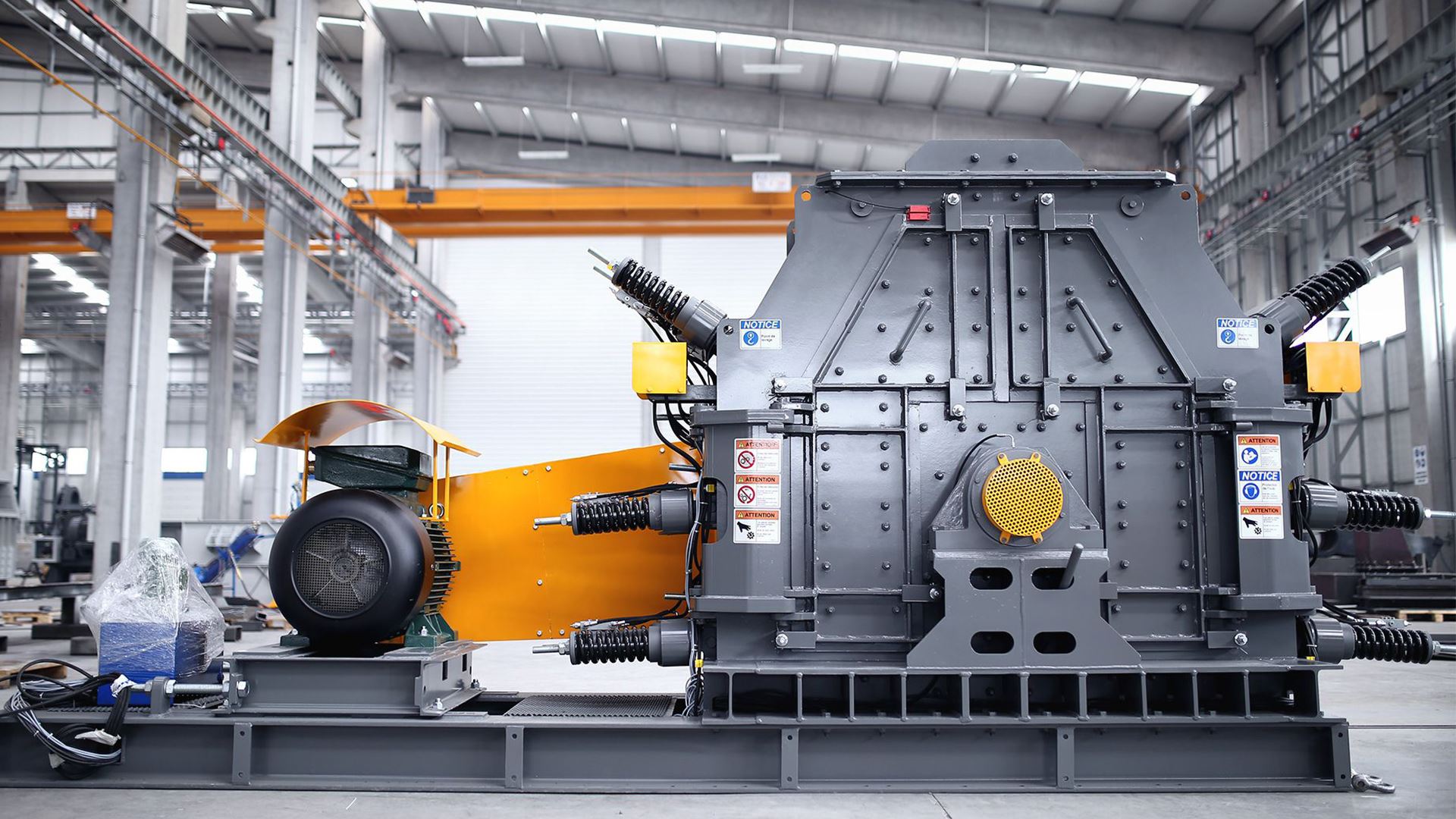

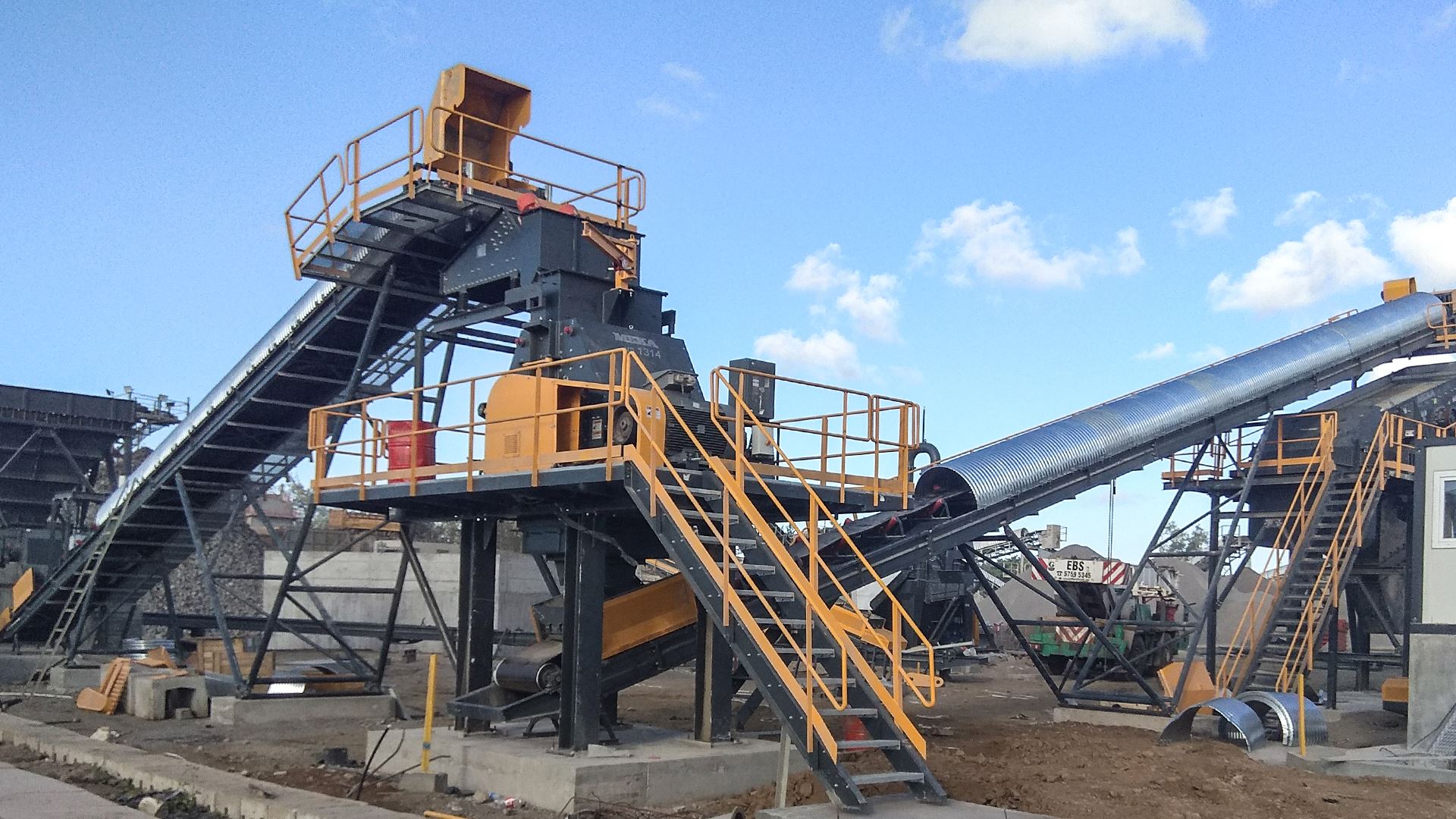

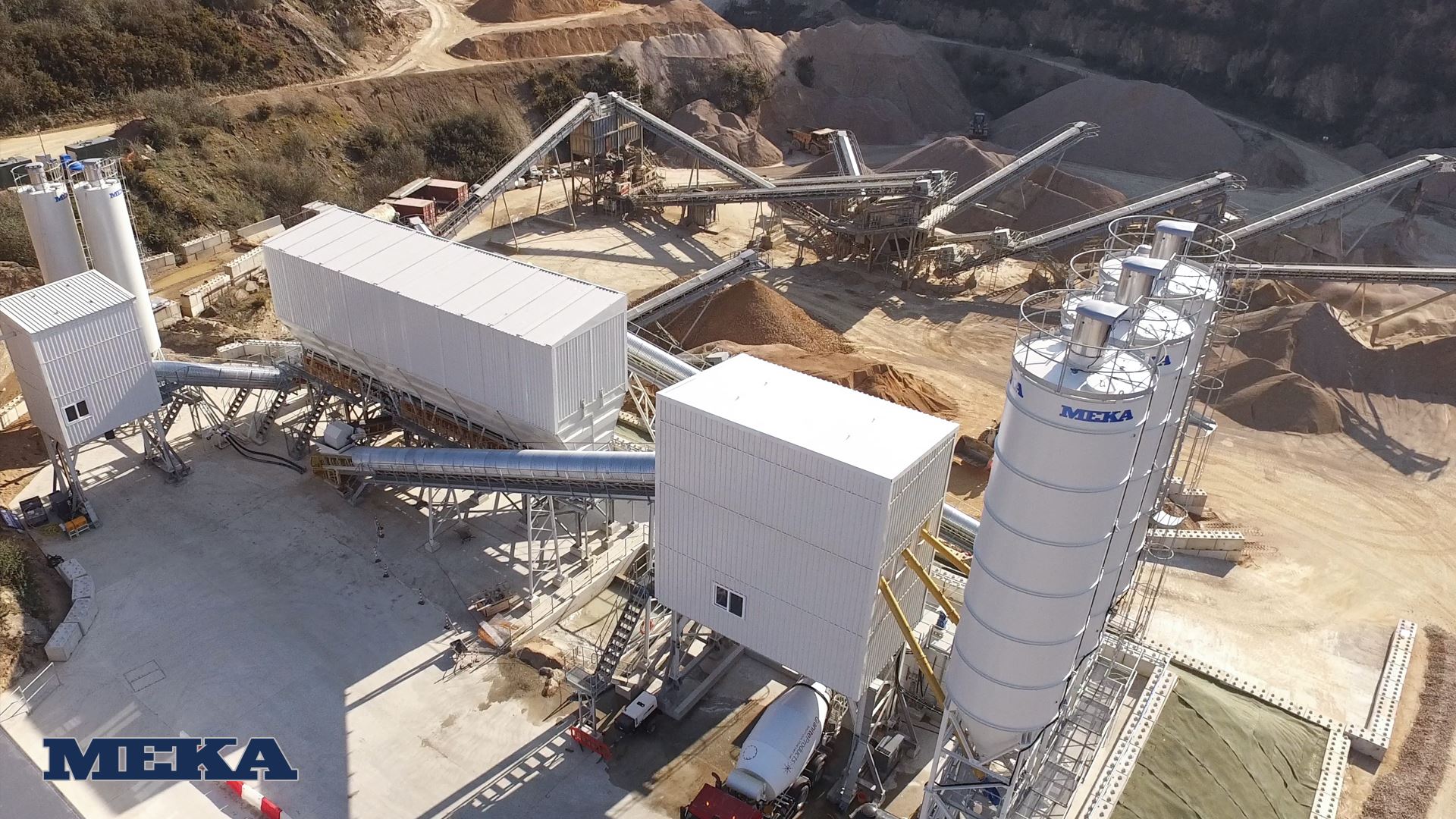

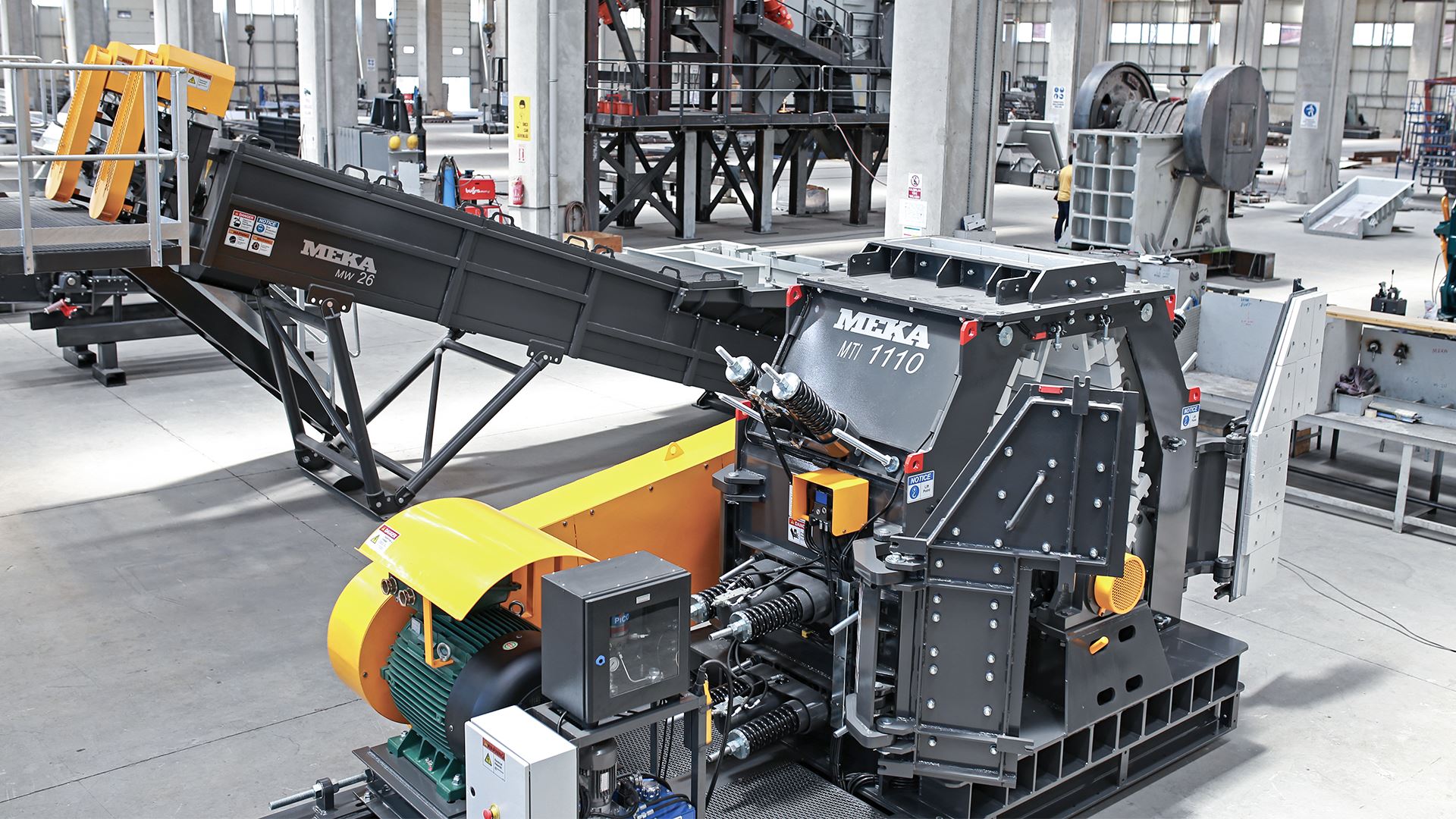

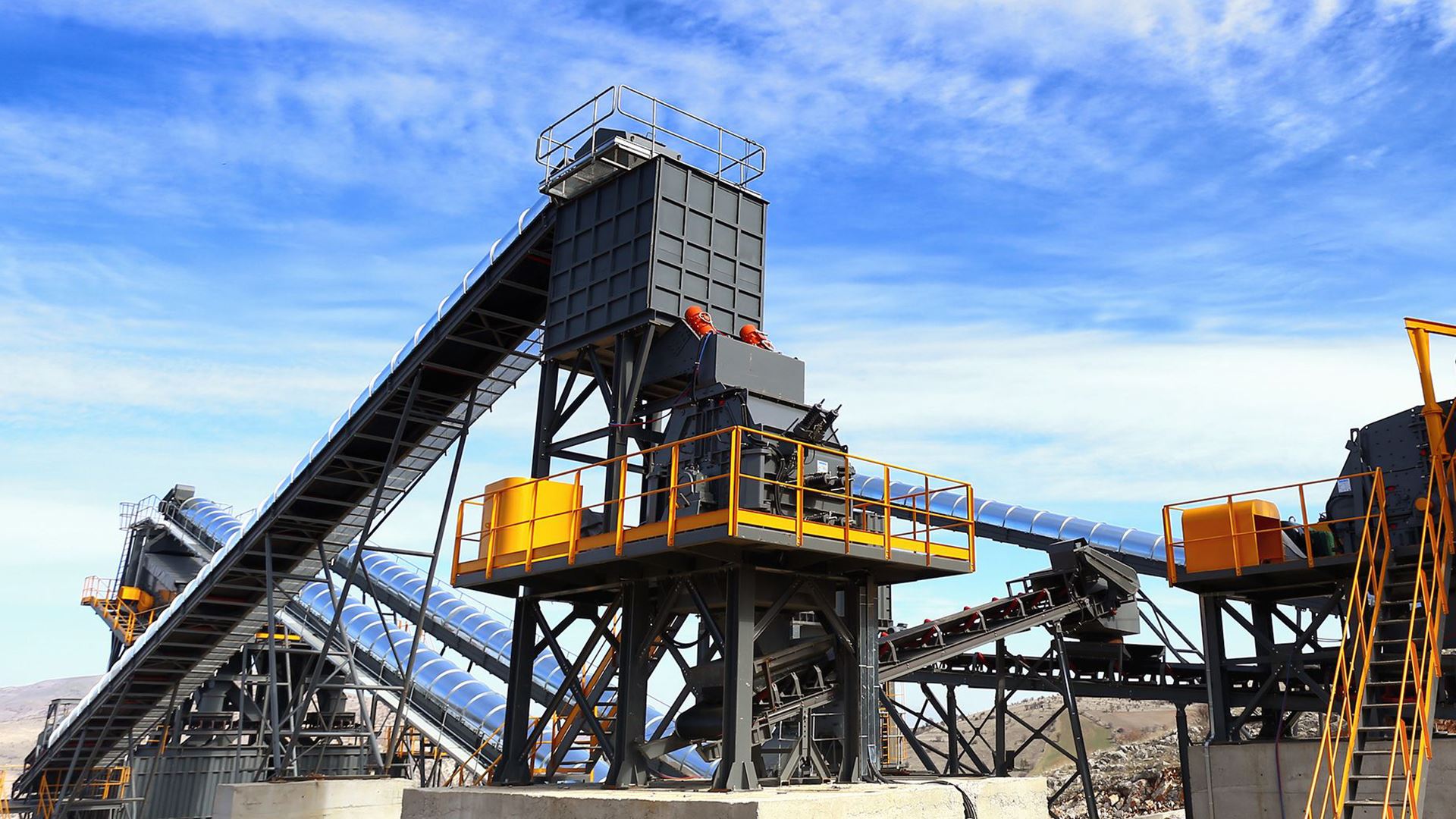

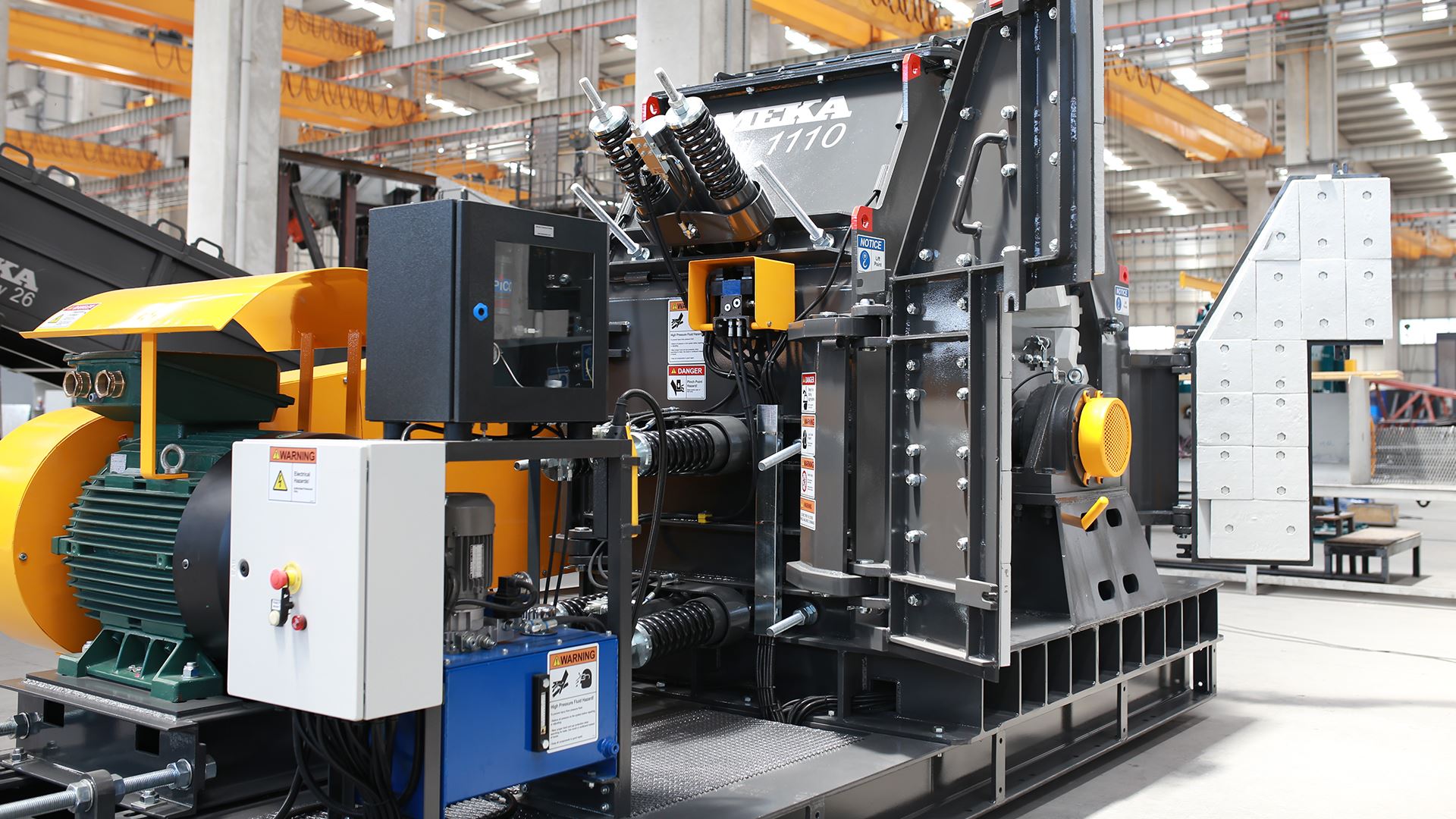

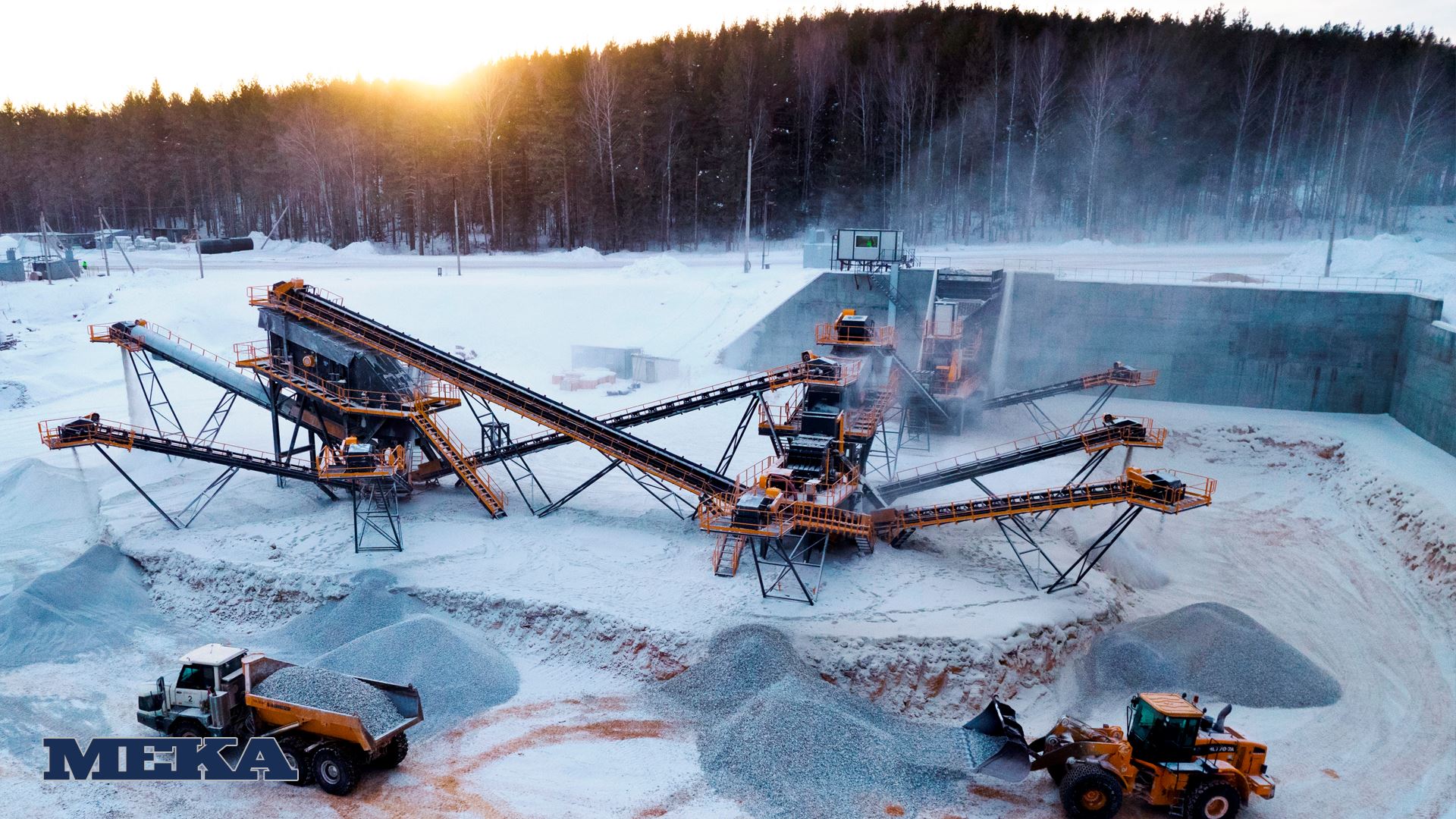

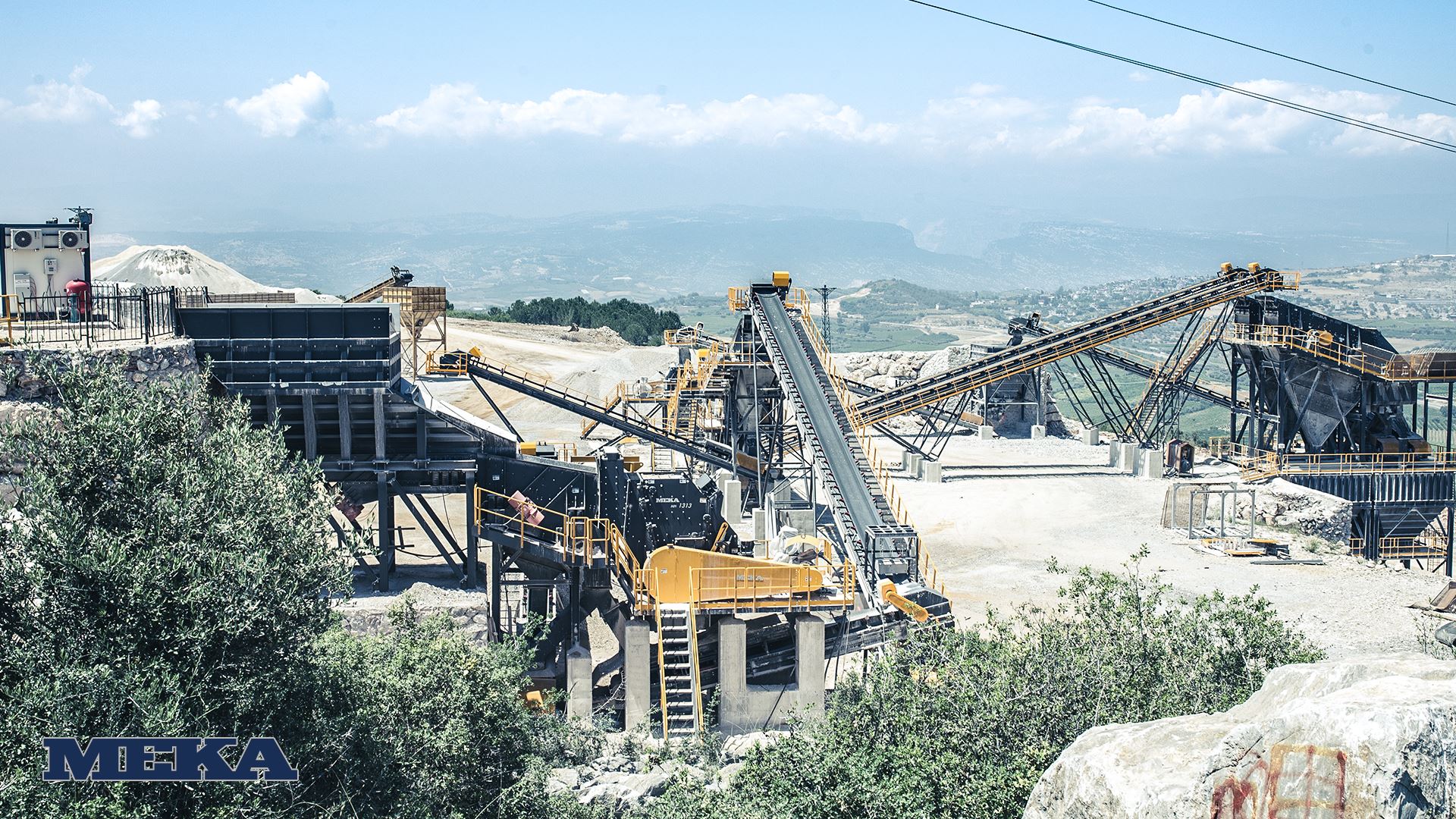

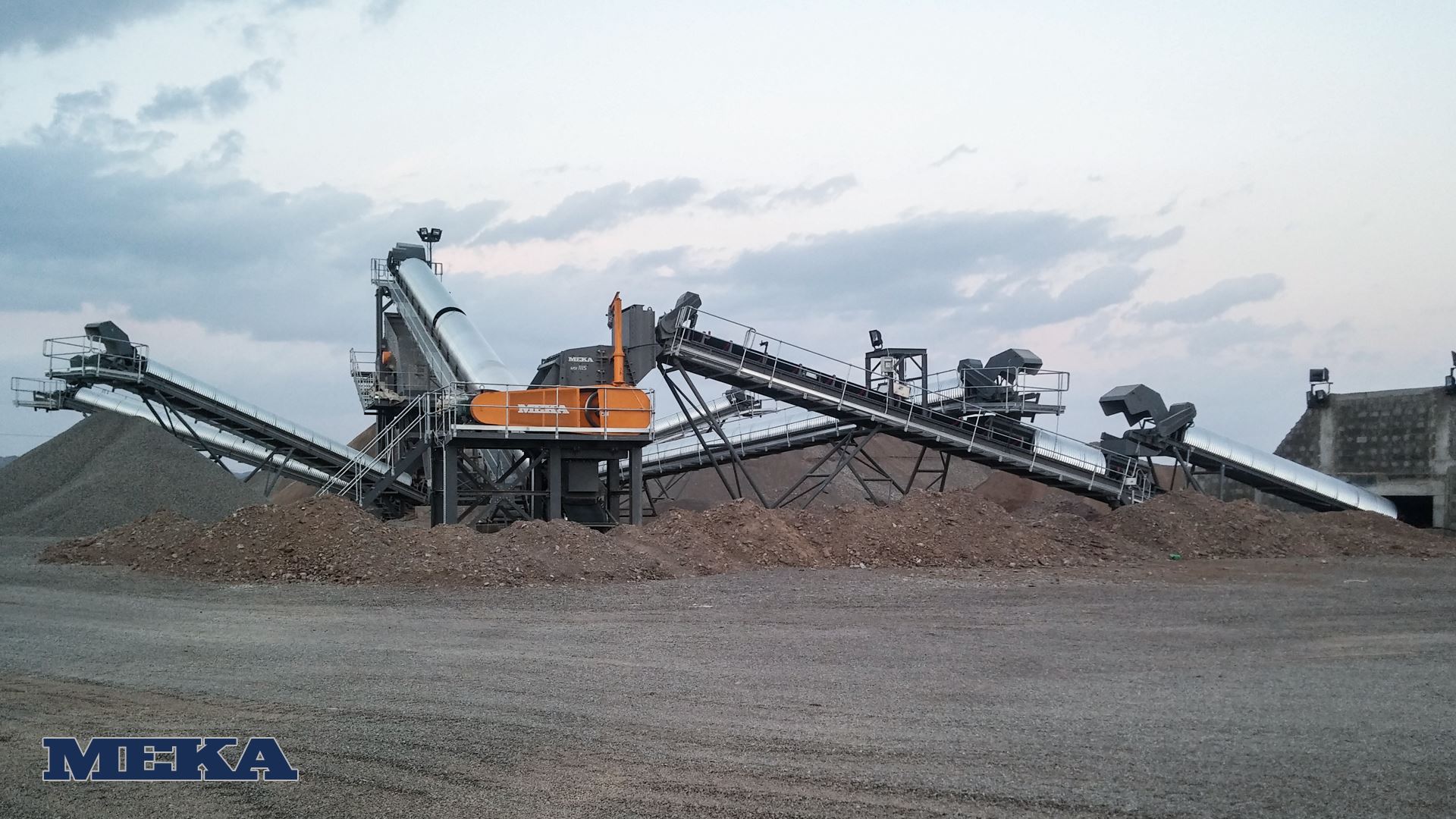

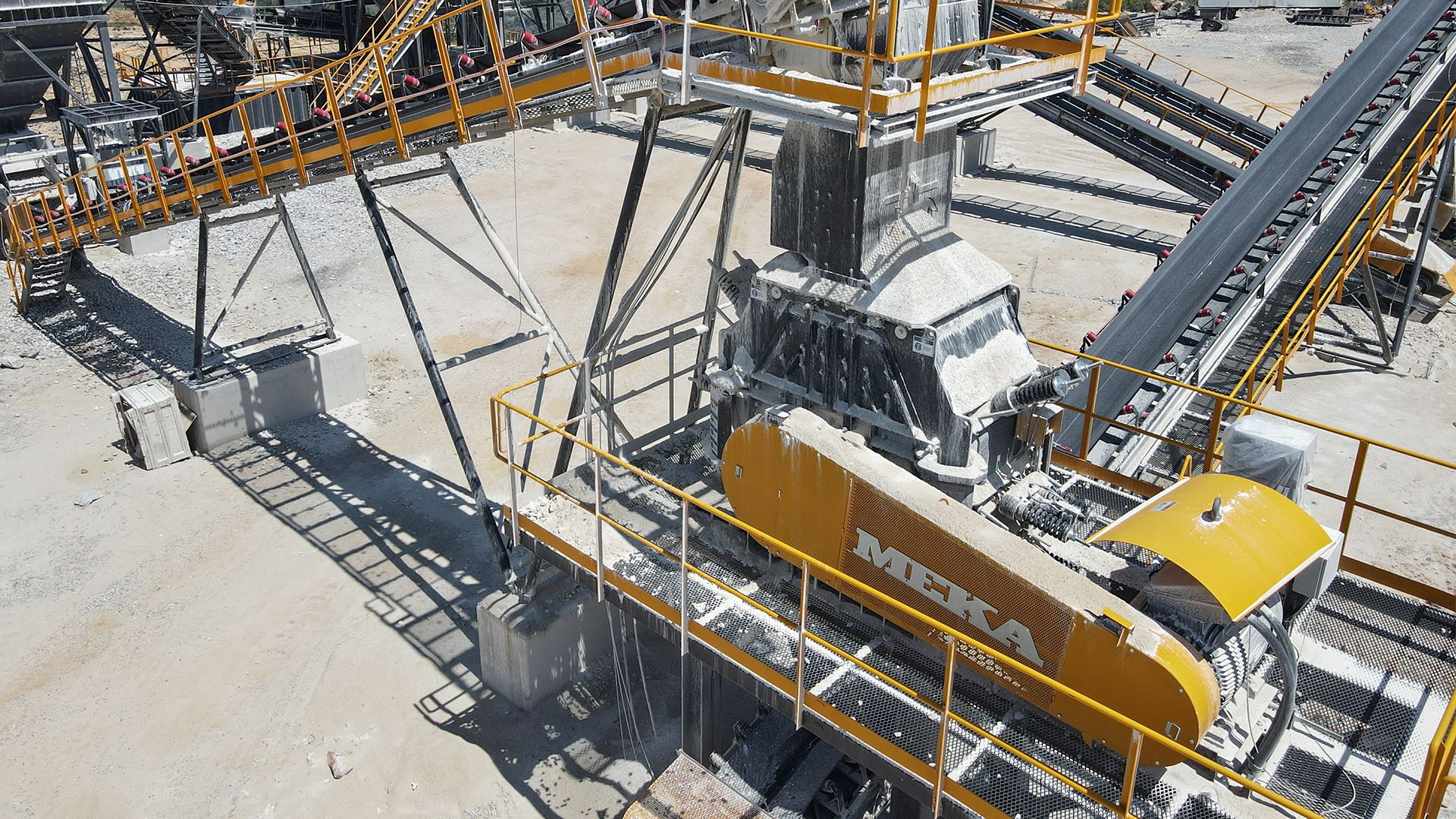

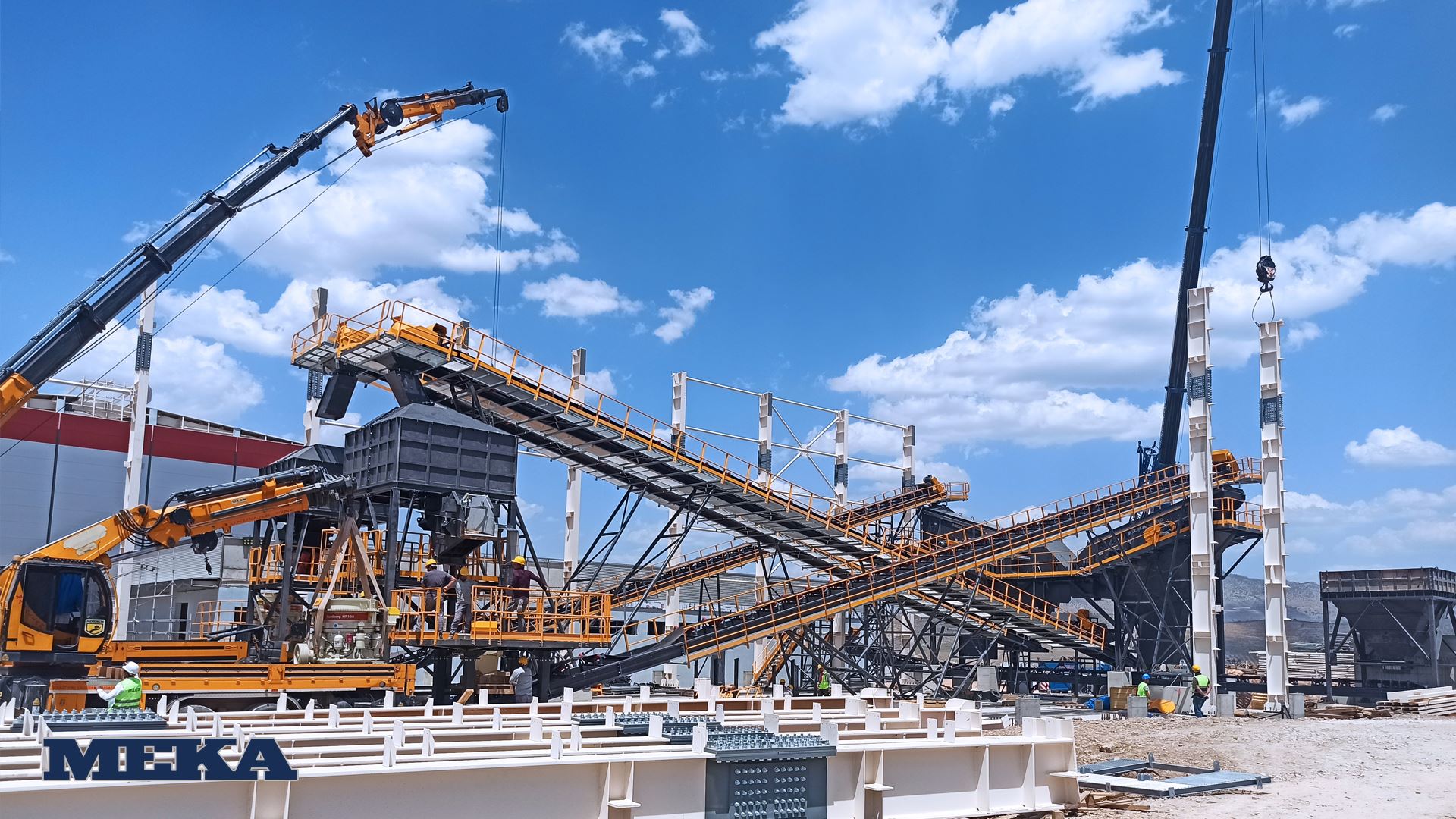

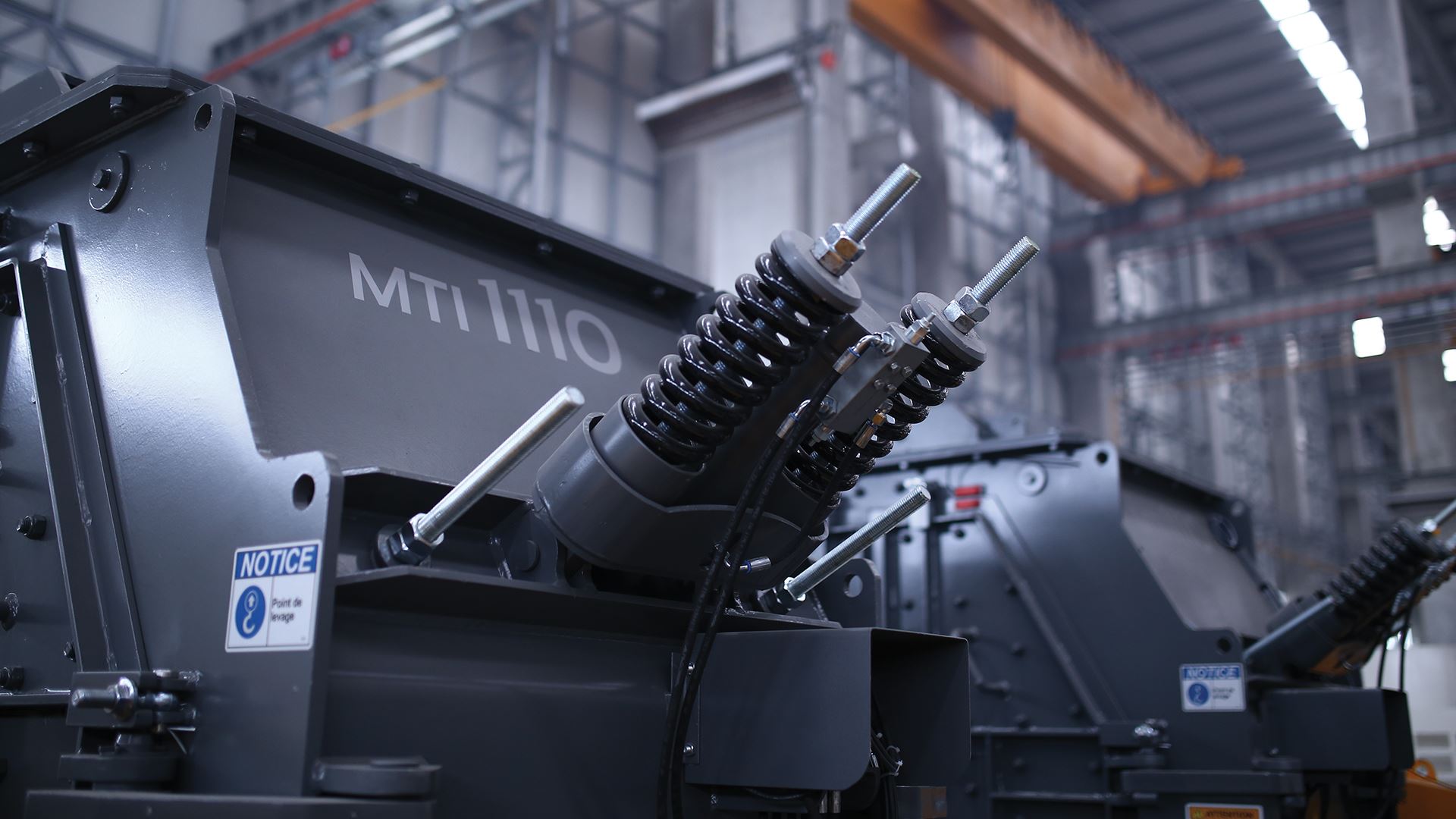

TERTIARY IMPACT CRUSHER / GALLERY
