VERTICAL SHAFT IMPACT CRUSHER - L MODEL

FLEXIBLE SOLUTIONS WITH INTERCHANGEABLE CRUSHING CHAMBERS

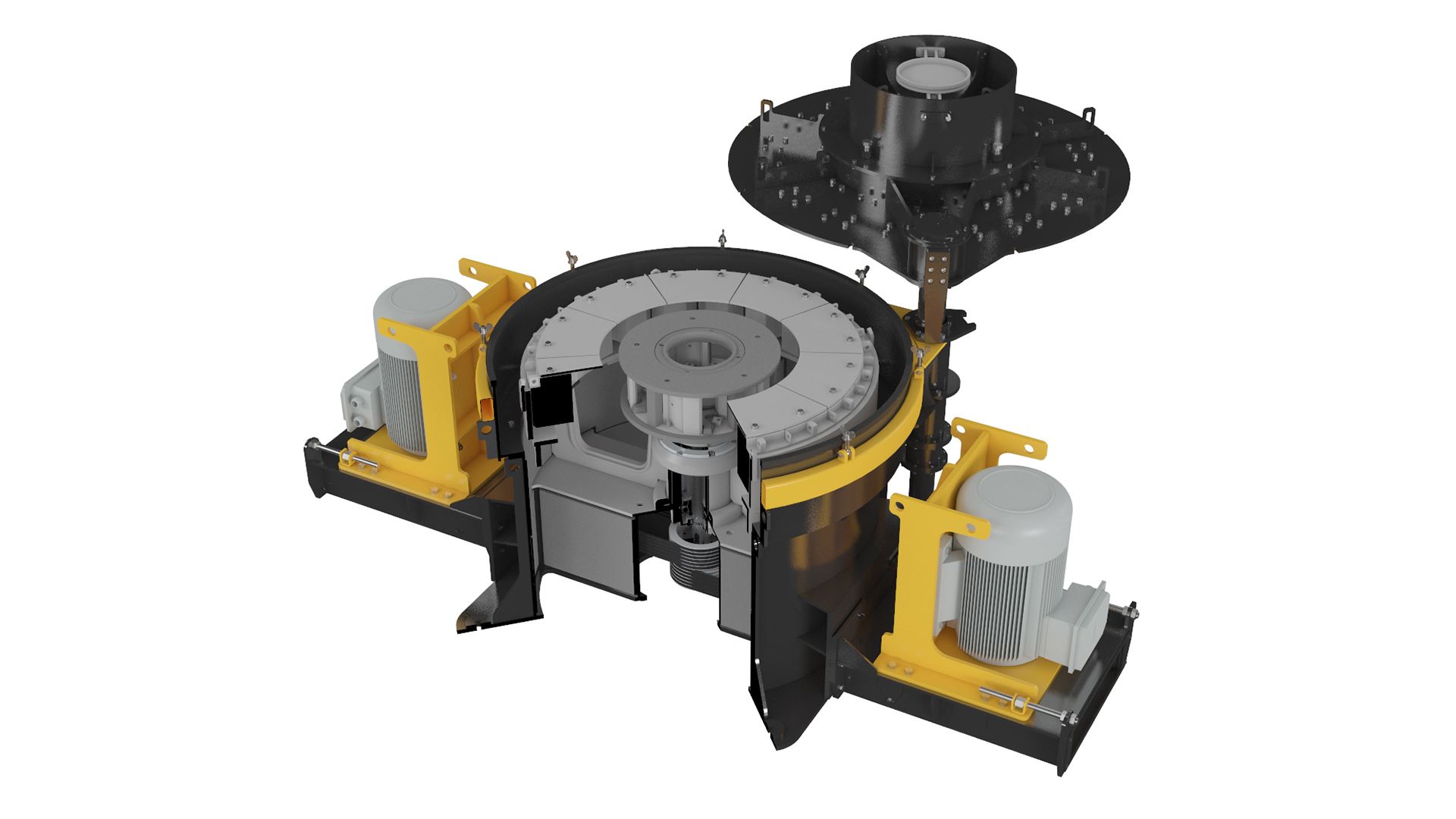

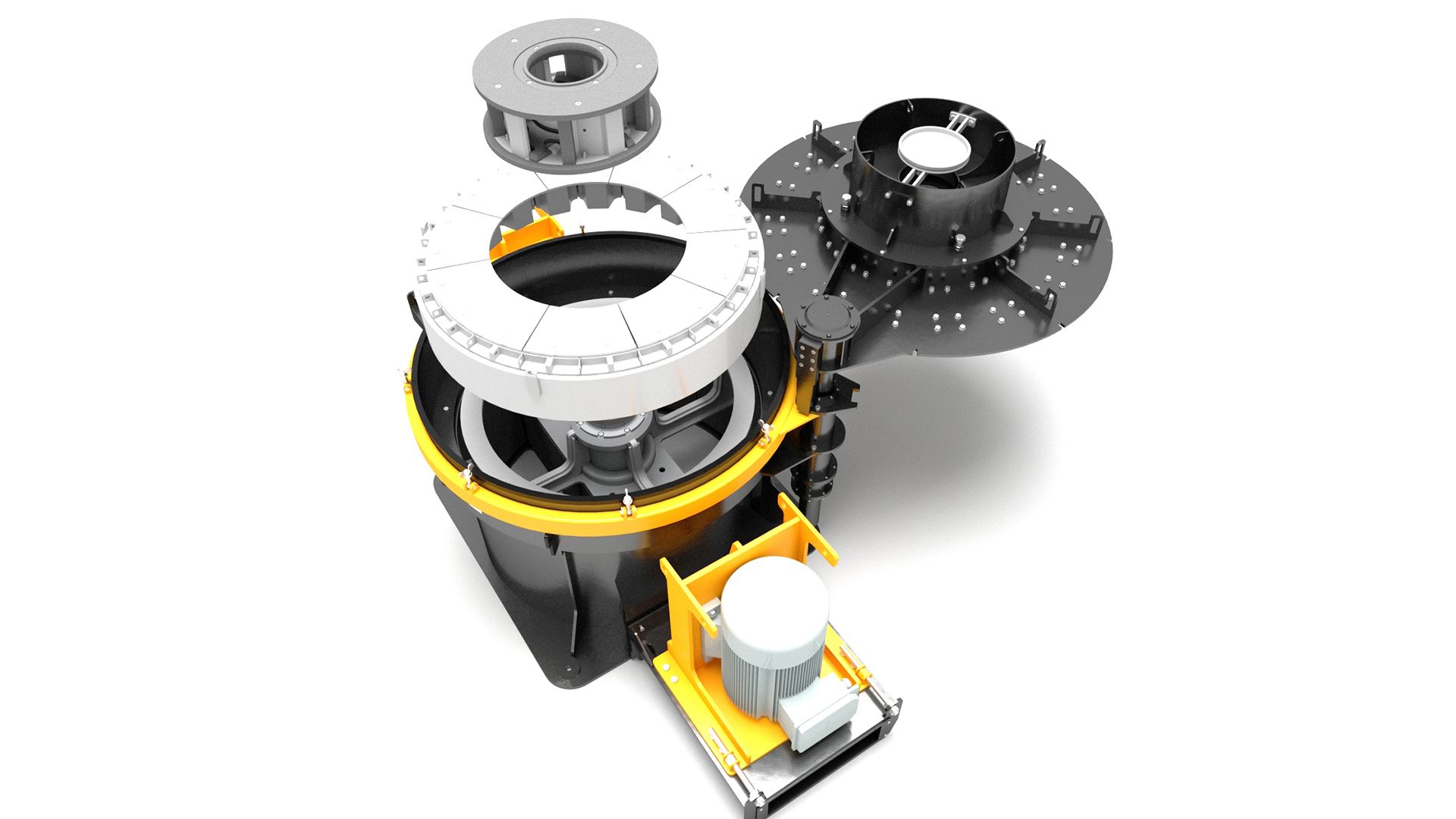

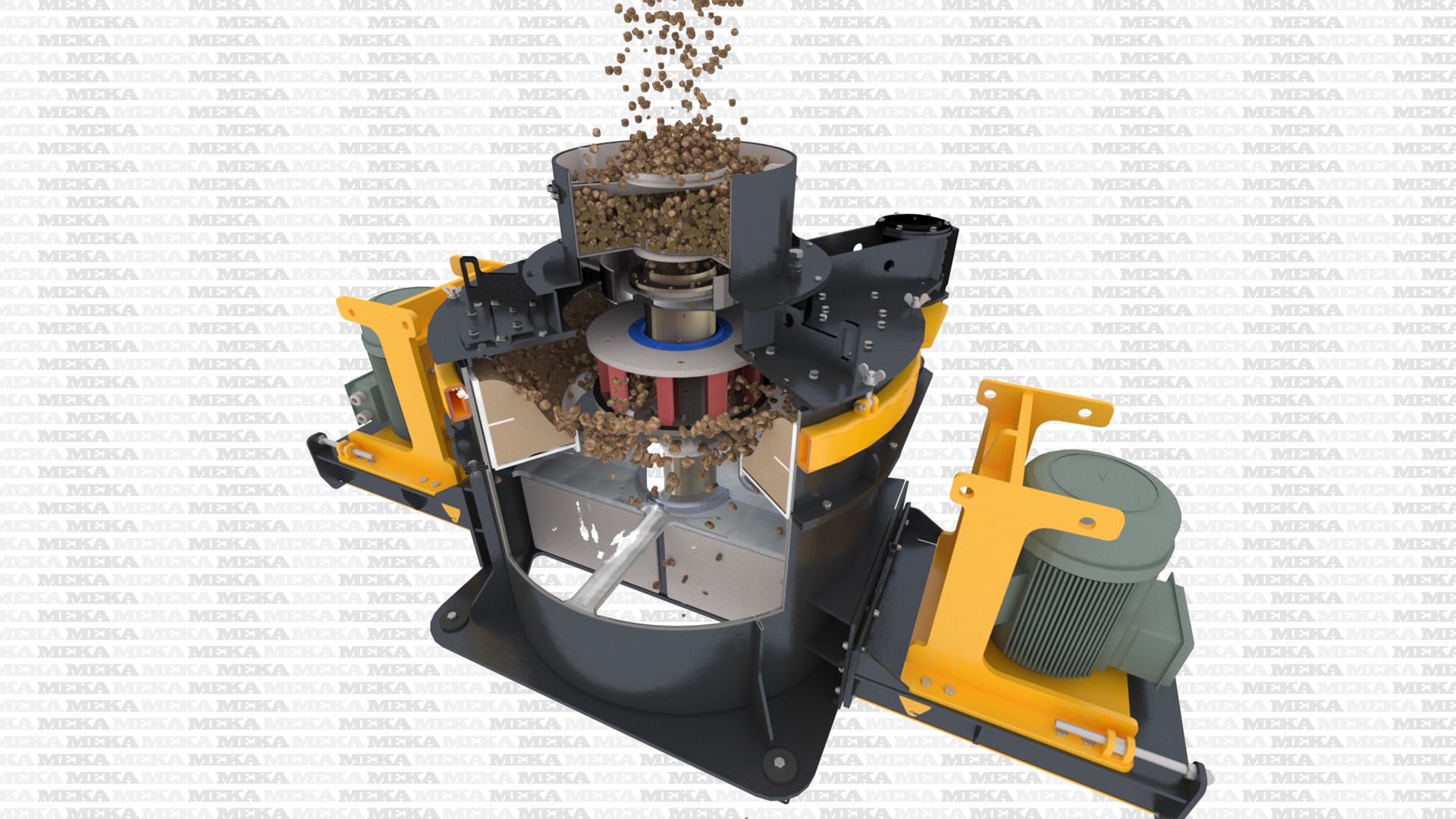

L Series vertical shaft impact crushers use high-speed rotor or heavy duty open tables. These crushers are offered in a variety of enclosed rotor or open table configurations and are convertible between three styles of crushing chamber designs for maximum flexibility. Configurations options include enclosed rotor and rock shelf (ROR), enclosed rotor and anvil ring (ROS) and open table rotor and anvil ring (SOS).This maximizes flexibility and allows the crusher to be configured as needed with the highest performance possible. This modular design offers maximum application versatility.

APPLICATIONS
These crushers are suitable for a wide range of applications including the production of high quality manufactured sand, well formed aggregates and industrial minerals.
Crushers can also be used for shaping or removal of soft stone from aggregate, crushing of cement clinker before mills and glass recycling.

WHY Crash Crusher VERTICAL SHAFT IMPACT CRUSHER - L MODEL?
•   Flexible crushing chamber options

•   Oil lubrication system comprised of tank, pump, temperature switch, flow meter, oil cooler, oil heater and valve assembly

•   Externally adjustable feed tube system with a convenient inspection door mounted on the lid, provides safe and easy inspection

•   Air transfer system enables internal air circulation and reduces dust emission

•   Dual drive design reduces the radial and thrust loading on the electric motors, resulting in an extra-long service life for the motors

HIGHLIGHTS
•   Bearing assembly with oversized high load roller bearings and alloy shaft
•   Hydraulic lifting system for the lid assembly
•   Excessive vibration alarm system that includes a maintenance alarm to alert you to potential problems.
•   Reliable parts and service from experienced after sales organization designed for easy maintenance and long service life

Crash Crusher Mineral Processing Solutions PDF, 4.71 MB

VERTICAL SHAFT IMPACT CRUSHER - L MODEL / TECHNICAL SPECIFICATIONS

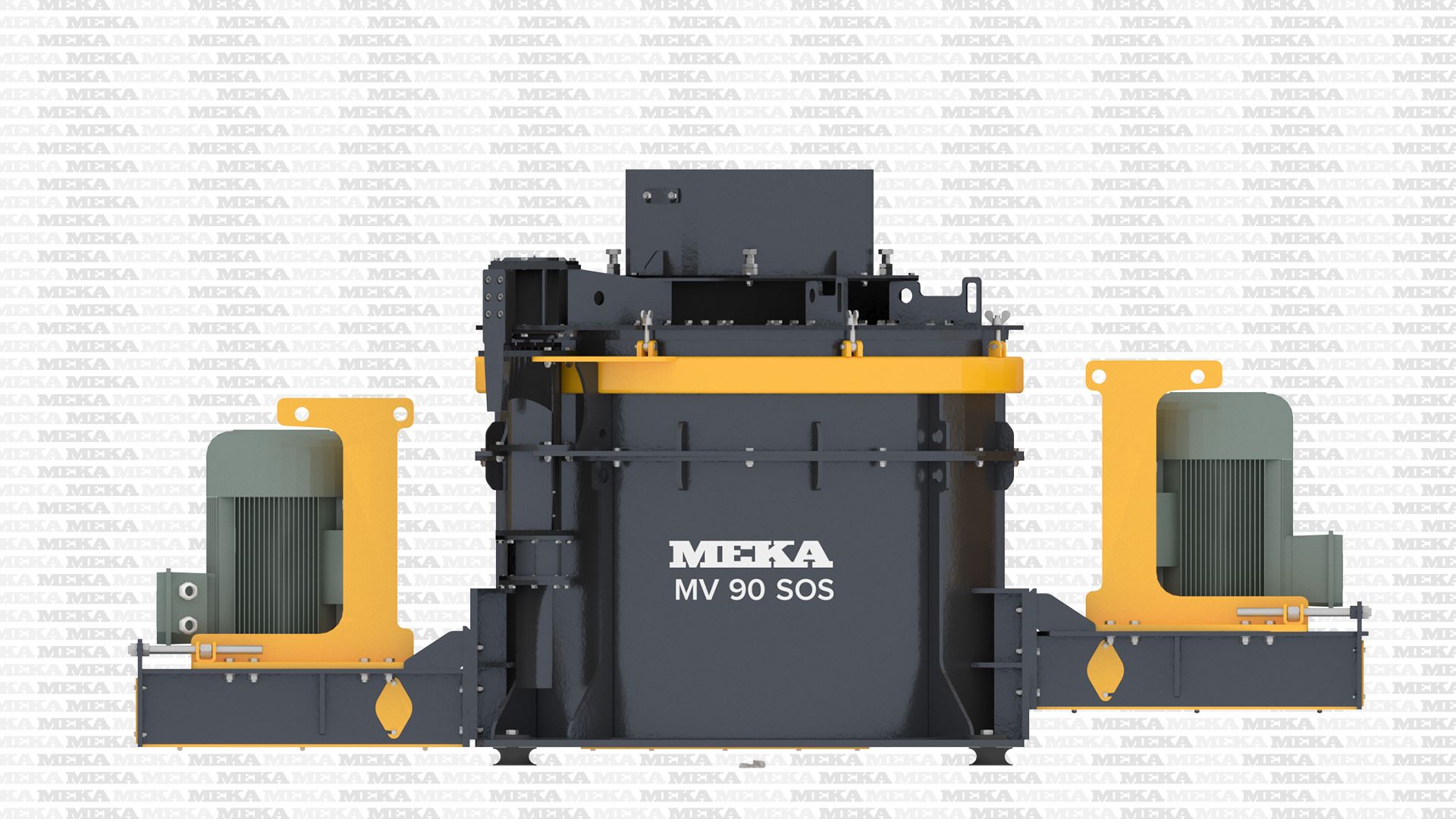

metric imperial	MVI 90L (ROR SD)	MVI 90L (ROR DD)	MVI 90L (ROS SD)	MVI 90L (ROS DD)	MVI 90L (SOS SD)	MVI 90L (SOS DD)
Max Feed Size (mm) Max Feed Size (inch)	50 2	50 2	50 2	50 2	75 3	75 3
Capacity (mtph) Capacity (stph)	200 220	300 330	250 275	300 330	250 275	400 440
Power (kW) Power (HP)	200-250 275-340	2x110-160 2x150-220	200-250 275-340	2x110-160 2x150-220	200-250 275-340	2x200 2x275
Speed (rpm) Speed (rpm)	800-1700 800-1700	800-1700 800-1700	800-1600 800-1600	800-1600 800-1600	800-1400 800-1400	800-1400 800-1400
Weight (kg) Weight (lbs)	9210 20300	10150 22371	10900 24024	11900 26228	11460 25258	12450 27440

*For material weighing 1.6 t/m³ or 100 lbs/ft³.
Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.

**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

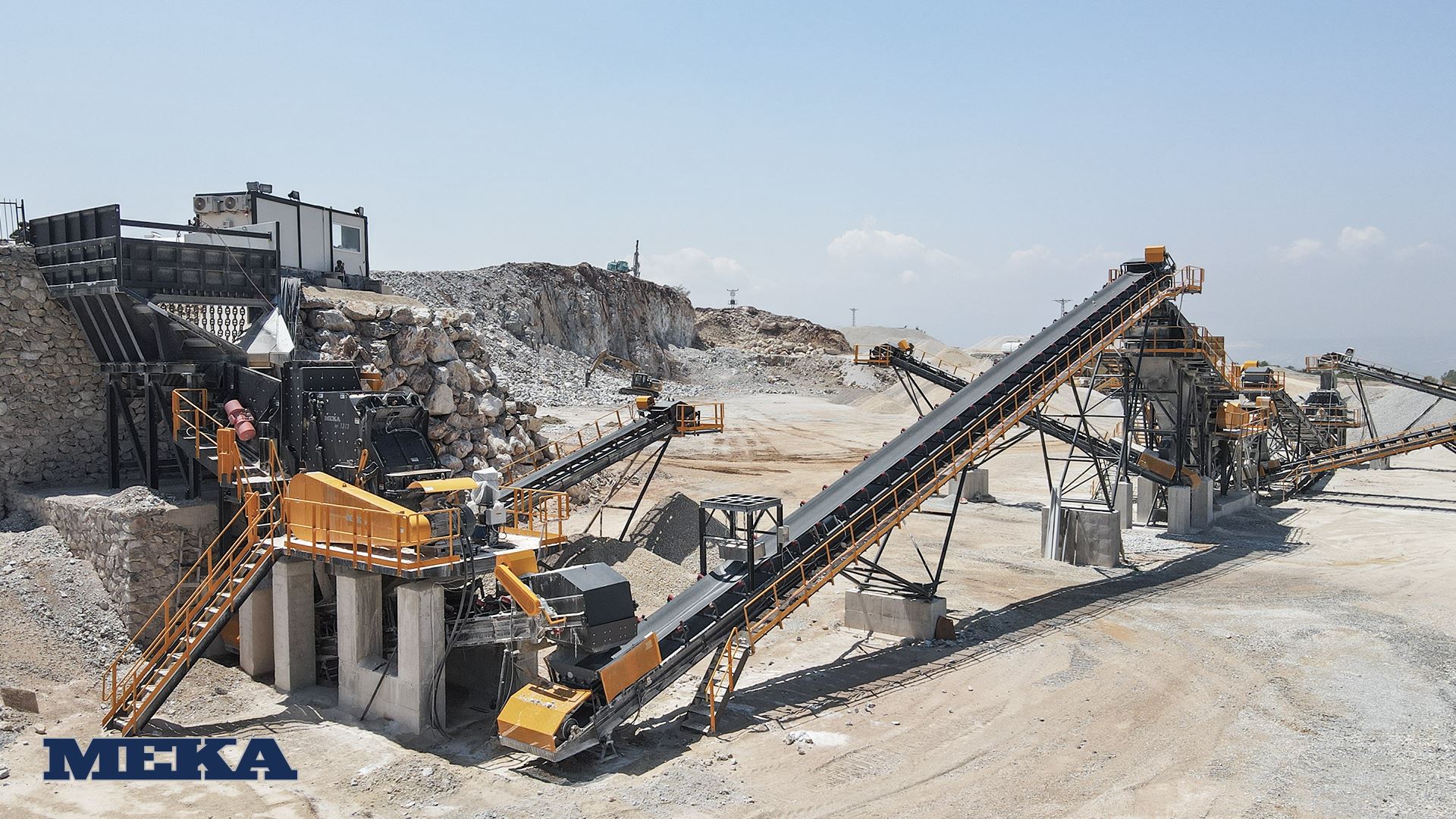

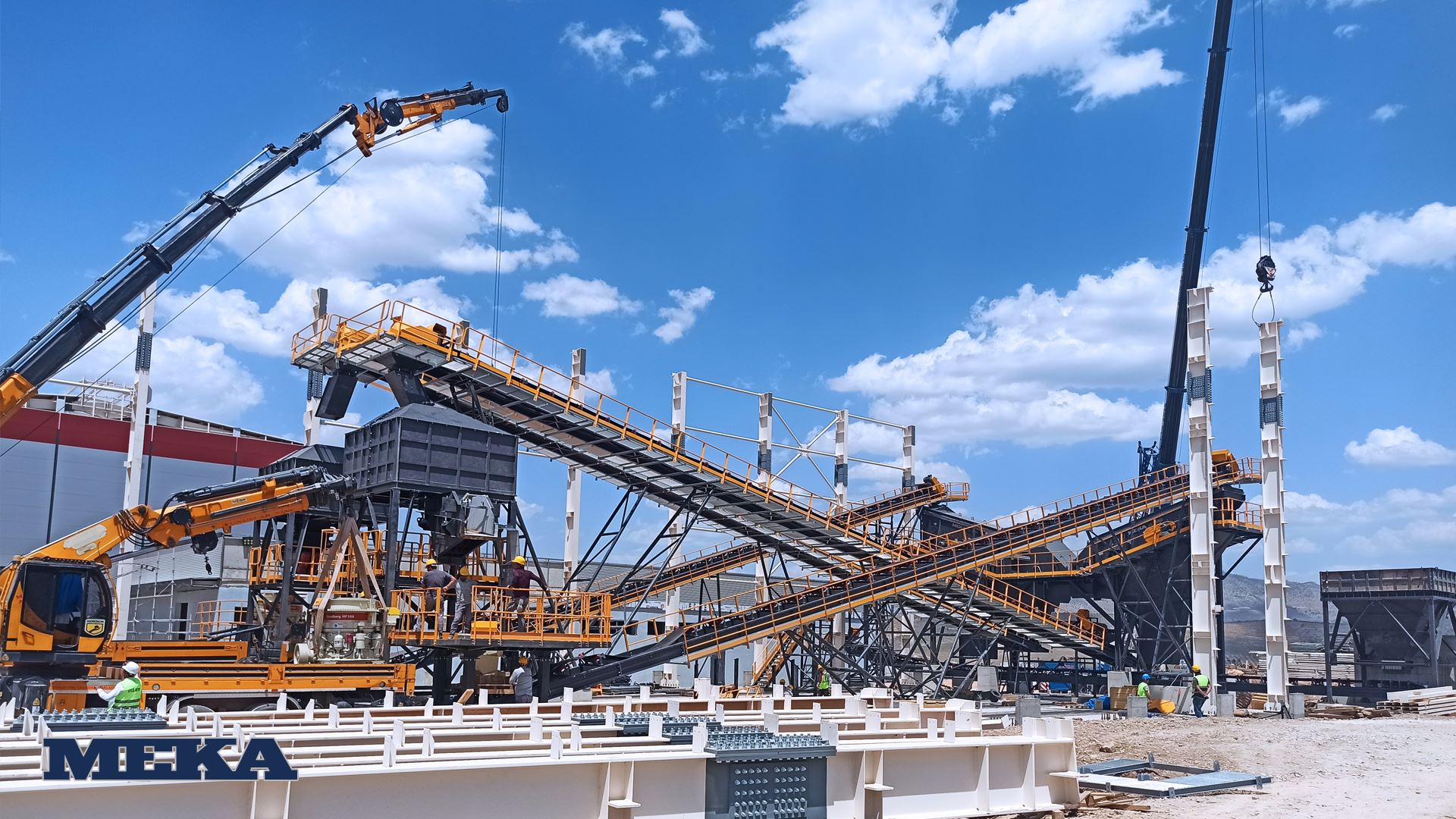

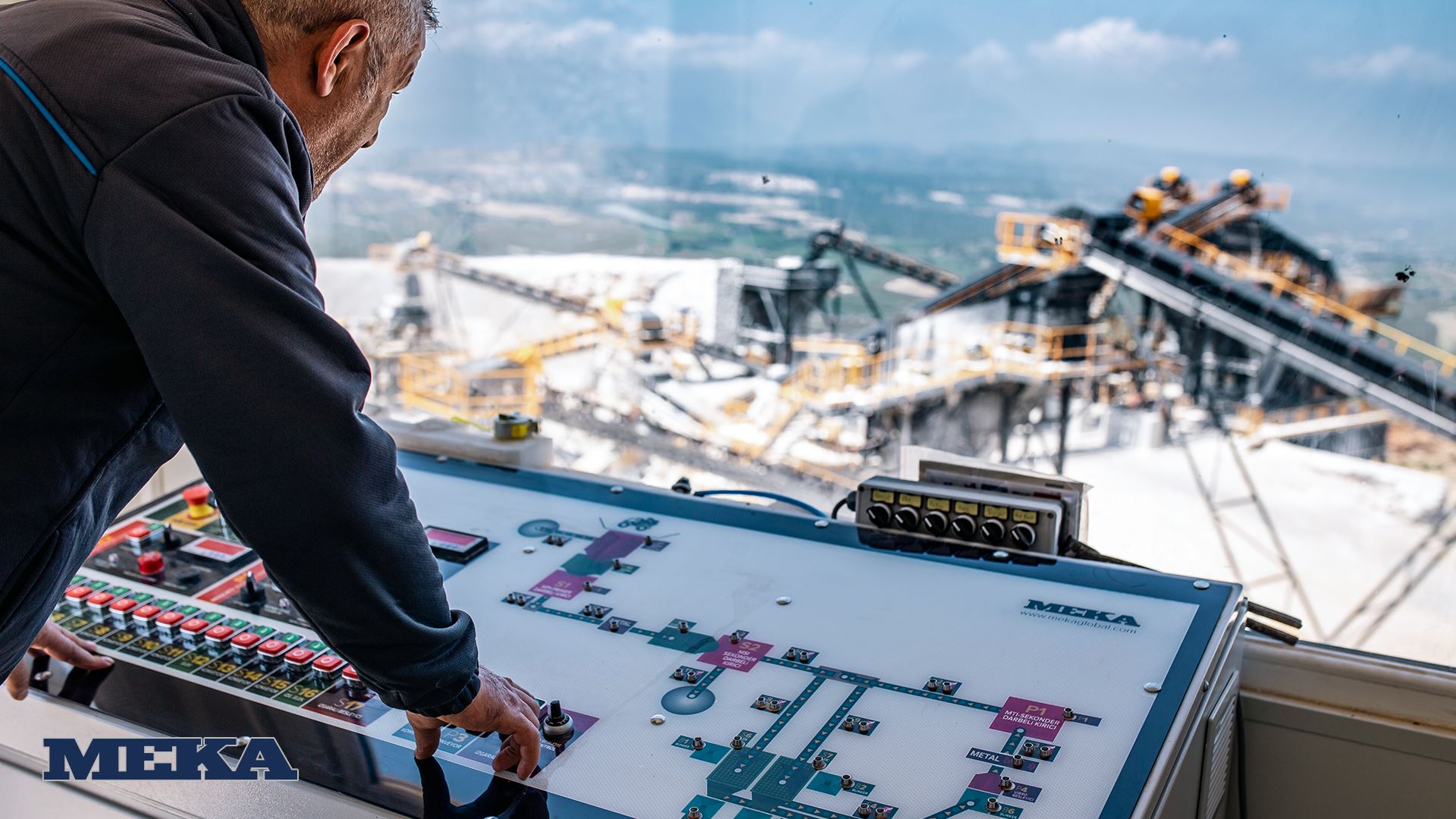

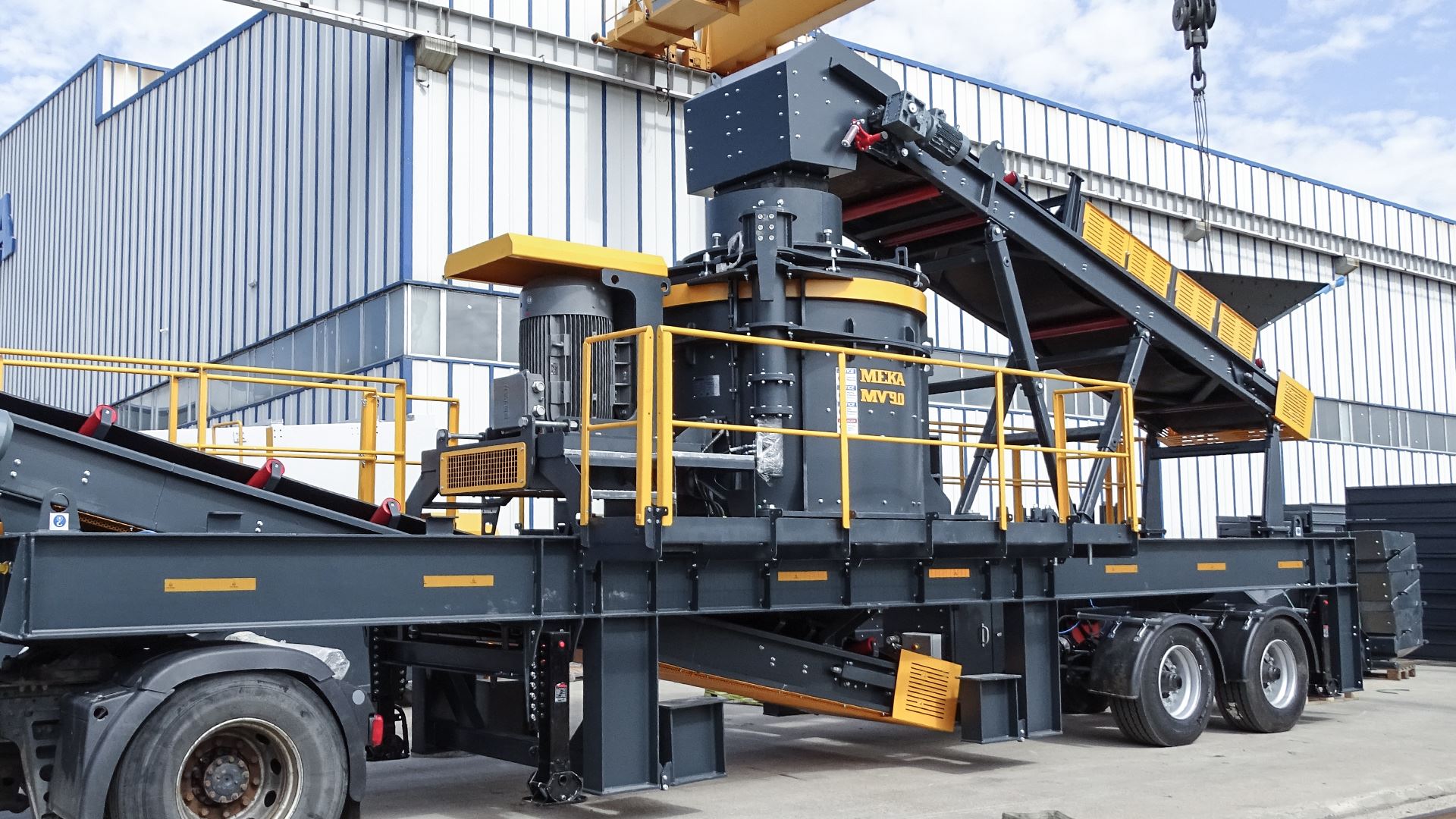

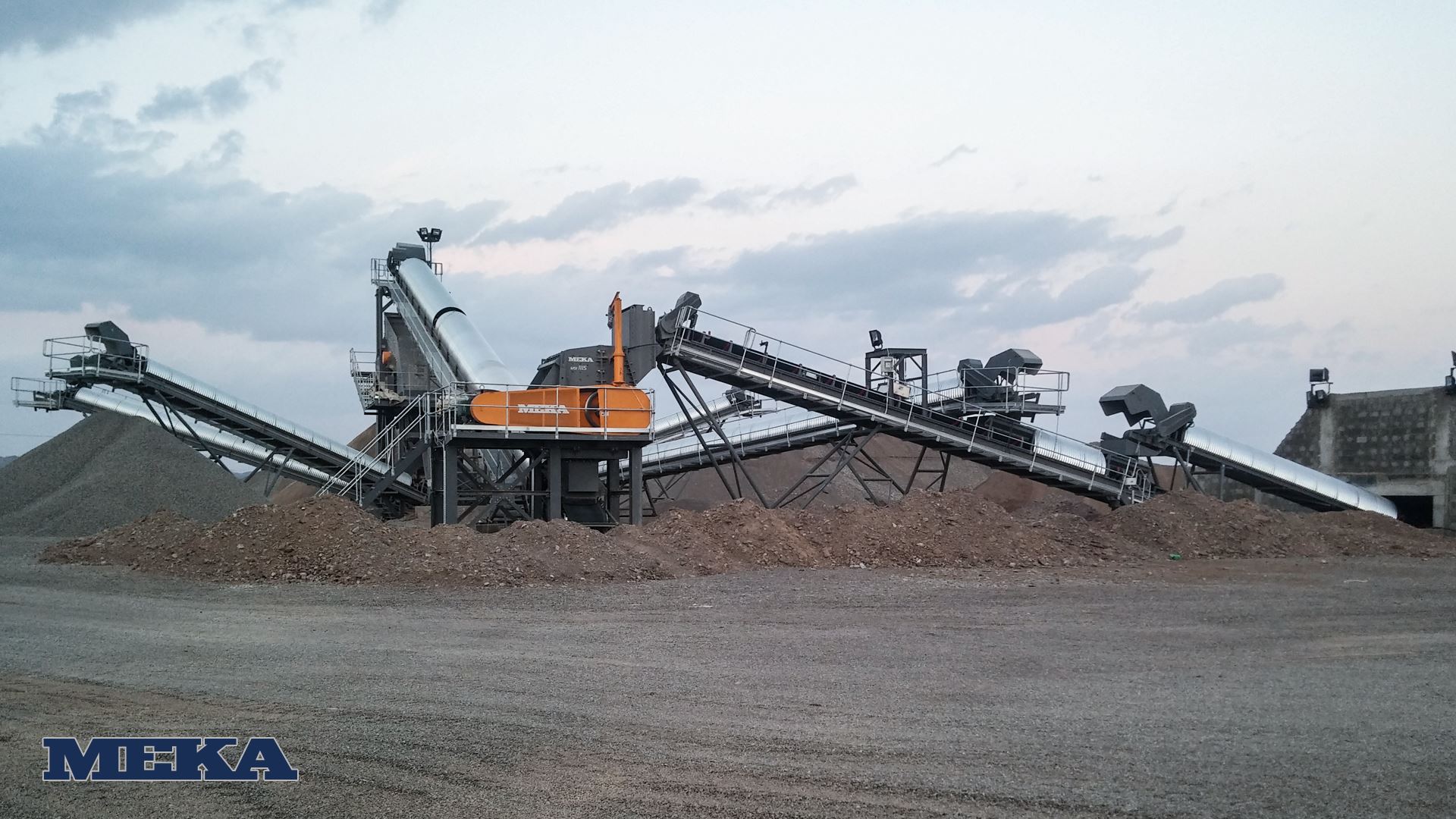

VERTICAL SHAFT IMPACT CRUSHER - L MODEL / GALLERY
