LOG WASHER

Maximum Strength, Maximum Power, Clean Product

Log washers are very high energy units designed to disintegrate tough clay particles. With longer wash tubs they provide significantly increased retention time. Retention can further be increased by switching to straight paddle design and higher working angles. All Crash Crusher Log washers are provided with spray bars to make a final rinse before the product leaves the wash box.

APPLICATIONS
Crash Crusher Log Washers are designed to assist in the removal and breaking down of heavy plastic clay, conglomerate,
and certain types of soft stone that may be present in gravel, crushed rock or ore.
•   Removal of soluble clays
•   Removal of silts for aggregate and mine applications

WHY Crash Crusher LOG WASHER?
•   Breaks down toughest clays
This job is accomplished by a severe abrading action of the corrugated faced Ni-Hard shoes mounted on spuds welded to the log shafts.

•   Produces clean rock from waste
Heavy-duty paddles provides increased scrubbing effectiveness.

•   Durable Wear Parts
Provides superior wear parts life, reduced wear parts cost, improved safety

•   HiCR Two Piece Blades for Maximum Wear Life
Bolted replaceable cast chrome or manganese two piece paddles assemblies

HIGHLIGHTS
•   Extreme duty gear box with oil bath lubrication
•   Seamless steel tub extreme duty log shafts
•   Simple shaft replacement assemblies
•   Outboard pillow block bearing assemblies
•   Linear paddle configuration or Spiral paddle configuration

Crash Crusher Mineral Processing Solutions PDF, 4.71 MB

LOG WASHER / TECHNICAL SPECIFICATIONS

metric imperial	MLW 3630	MLW 4430	MLW 4435	MLW 4835
DIAMETERxLENGTH (mm)DIAMETERxLENGTH (inchxfeet)	945x9175 36x30	1120x9300 44x30	1120x10820 44x35	1225x10500 48x35
Capacity (mtph) Capacity(stph)	50-125 55-138	75-175 83-193	75-175 83-193	110-365 121-400
Material (mm) Material (inch)	75 3	100 4	100 4	150 6
Power (kW) Power (HP)	90-110 125-150	110-160 150-200	160 200	200 270
Screw (rpm) Screw (rpm)	32 32	26 26	26 26	26 26
Weight (kg) Weight (lbs)	26407 58229	32275 71169	37150 81918	42185 93002
Water (m3/h) Water (gpm)	114 500	171 750	171 750	190 850

Capacity values are indicative only, results may vary depending on feed gradation, silt, clay content,density, amount of water used, equipment configuration and application.
Weights shown include drive motor package, support legs, maintenance platform, inlet and outlet chutes.

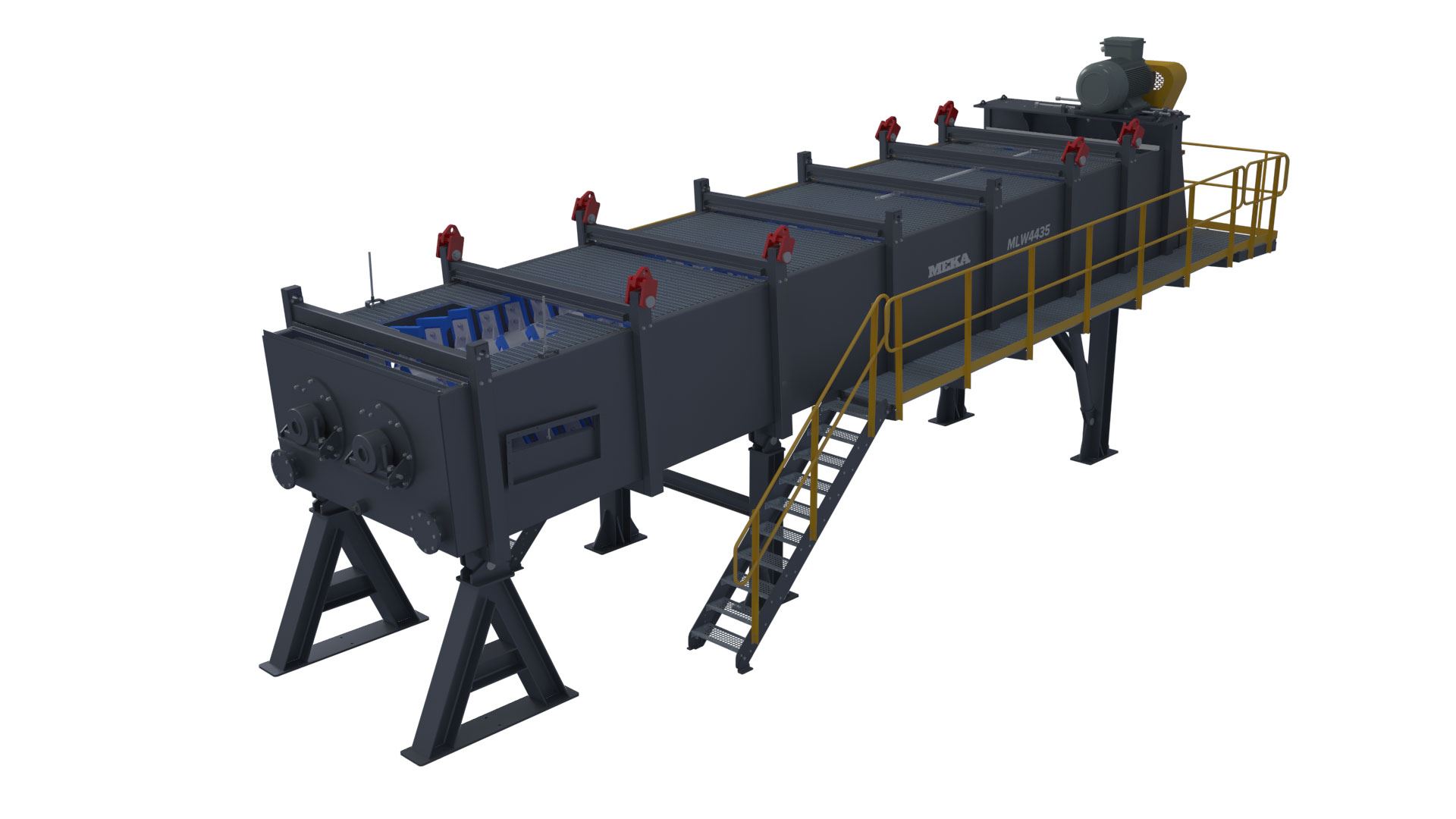

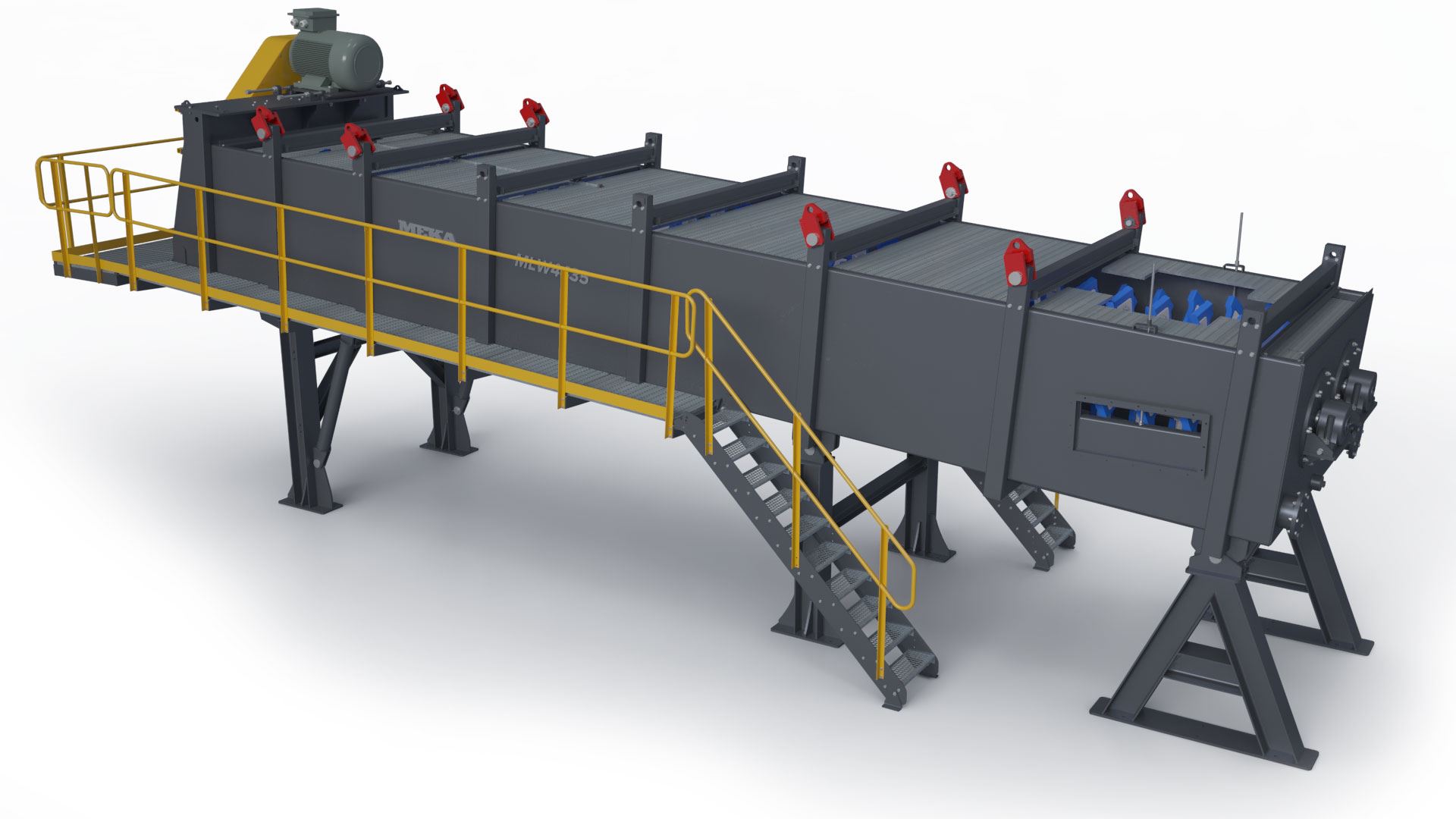

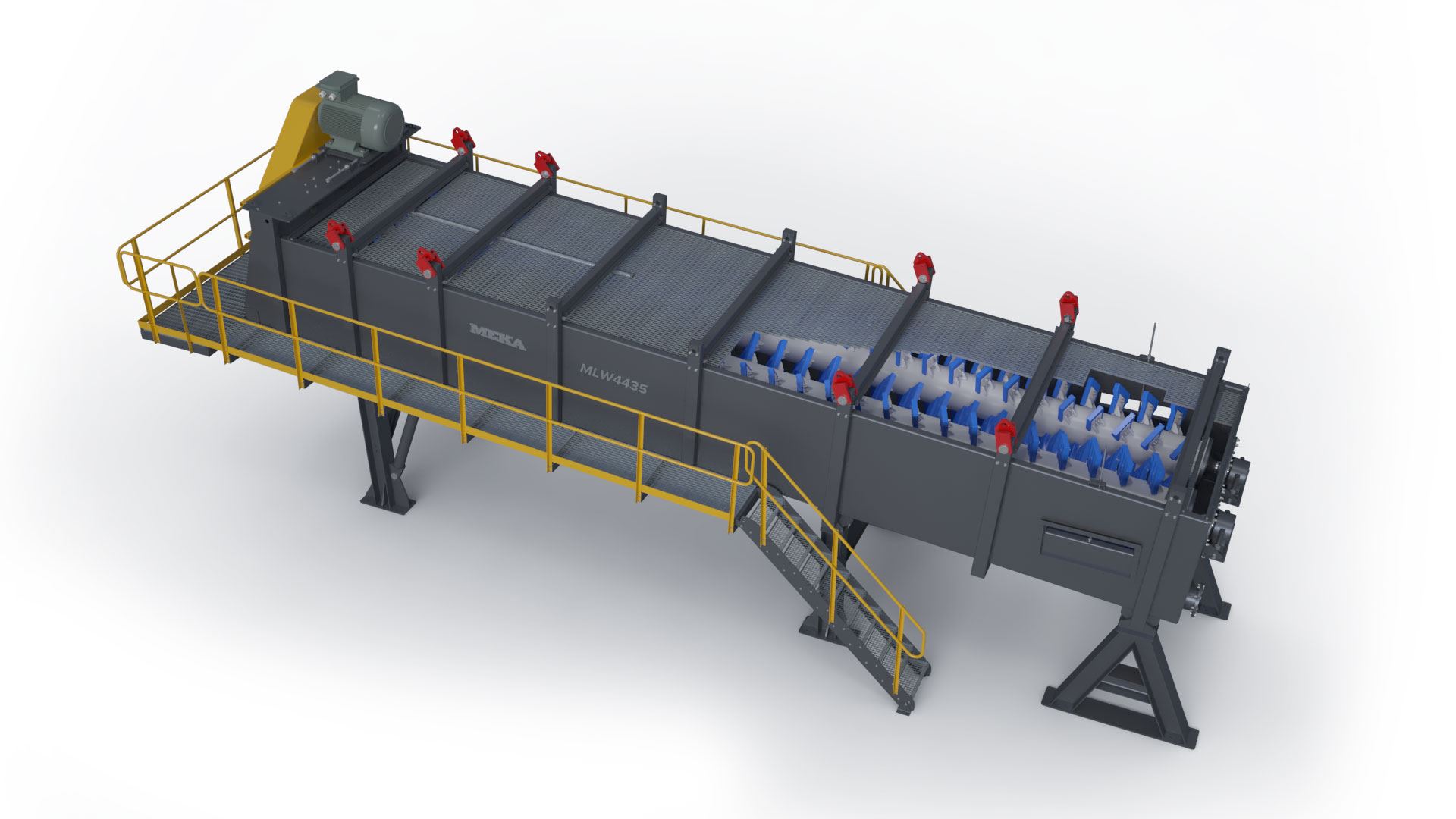

LOG WASHER / GALLERY
