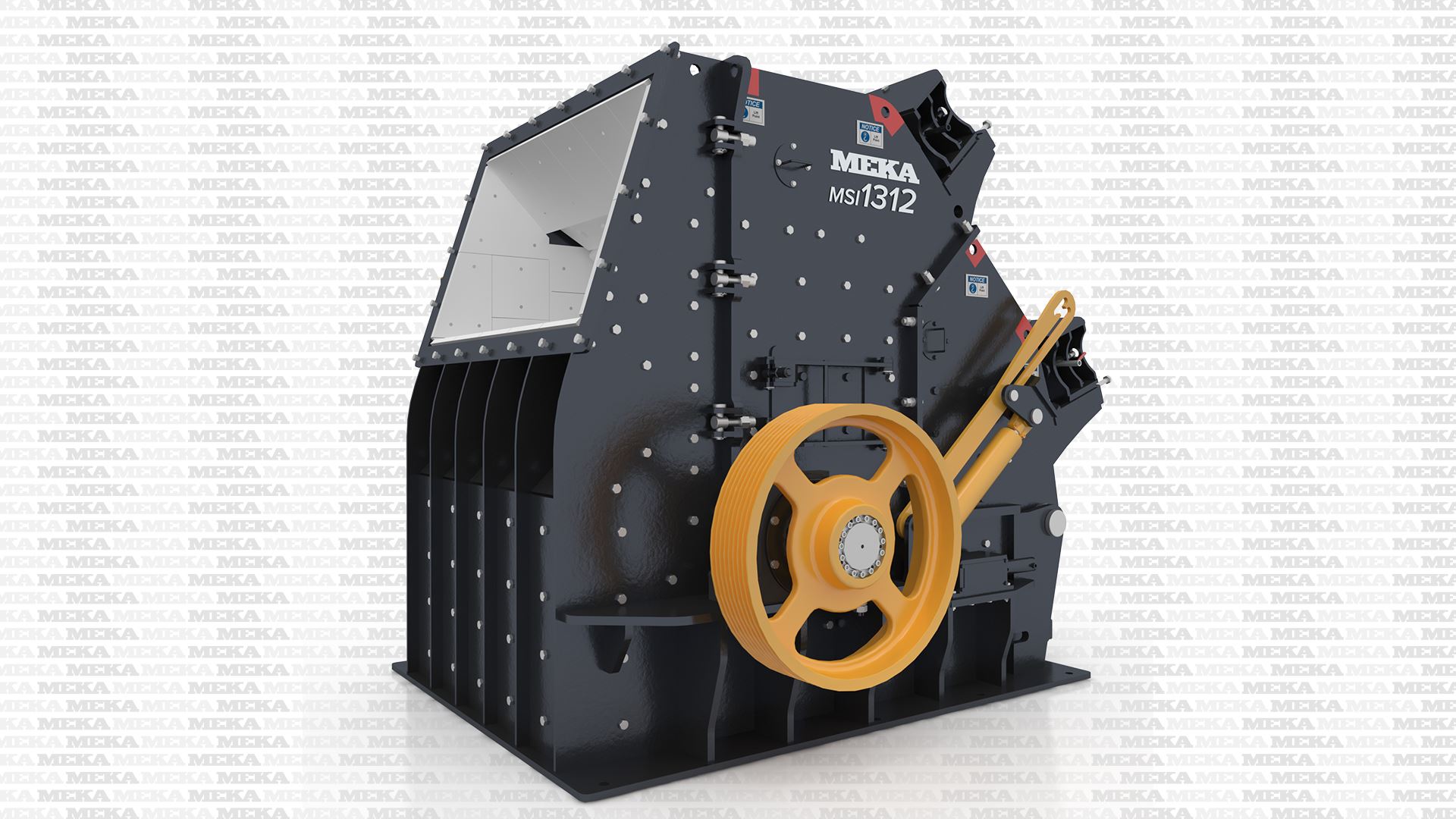

SECONDARY IMPACT CRUSHER

HIGH THROUGHPUT, TWO CURTAIN CRUSHER

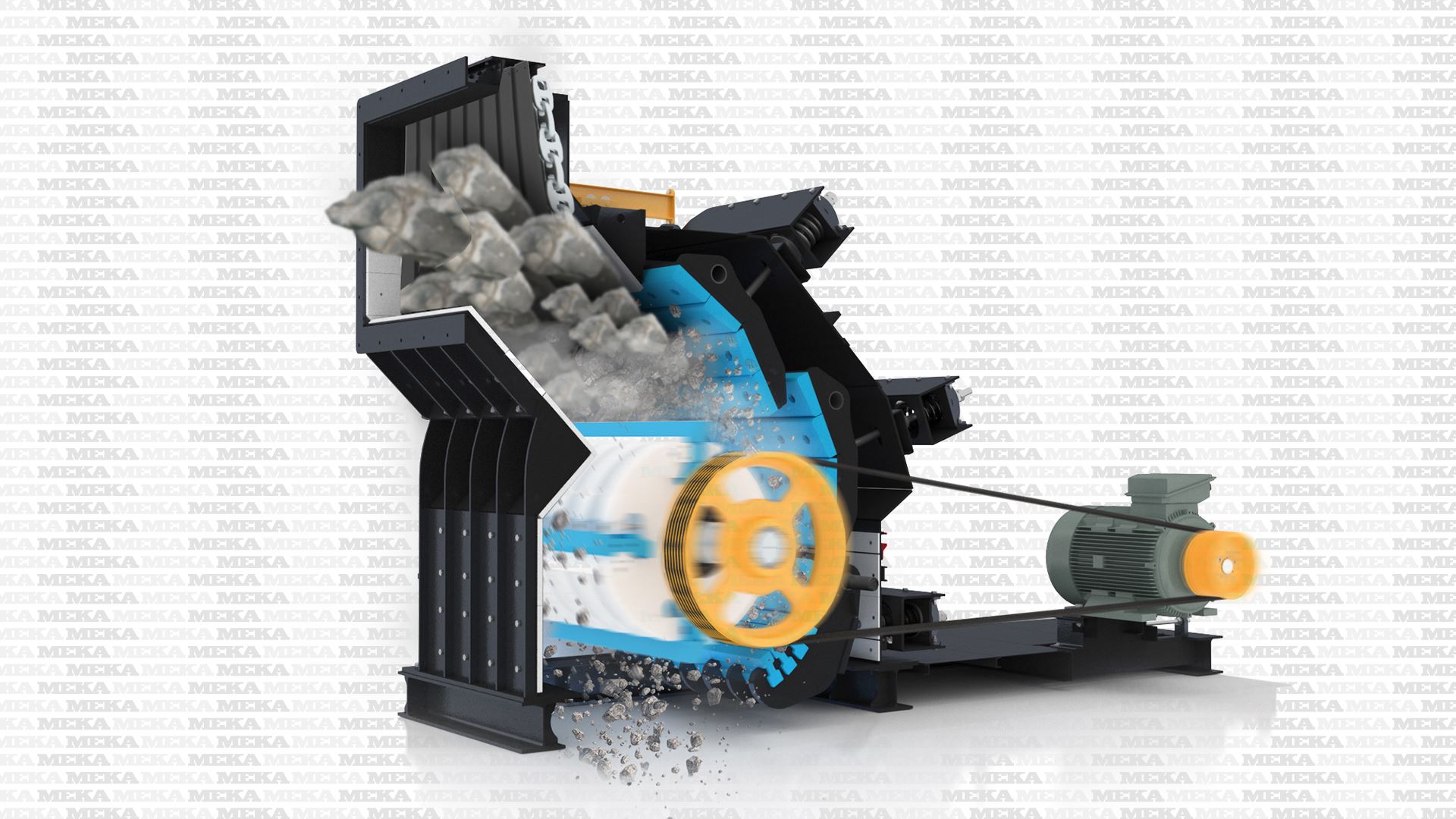

Crash Crusher MSI Series Secondary Impact Crusher is ideally suited to crush soft to medium hard materials down to a highly cubical, well graded product size of 0-80 mm in a single pass. Although this crusher is normally offered within a plant where tertiary crushing is also present, due to its high reduction ratio, the need for tertiary crushing can be eliminated.

APPLICATIONS
The strength of Secondary Impact Crusher (MSI) makes them ideal for diverse applications and configurations.
They have proven their effectiveness in a host of missions from crushing low abrasive materials to industrial applications and are suitable for quarrying and gravel pit industries, cement industry, concrete and asphalt recycling, and slag recycling.

WHY Crash Crusher SECONDARY IMPACT CRUSHER?
•   High Reduction Ratio
MSI series impact crushers achieve a higher reduction with fewer crushing stages,lowering your capital costs and saving energy.

•   Highly Cubic Production
Good cubical shape to meet asphalt and concrete product specifications for flakiness and elongation.

•   High Troughput
We have optimised machine layout to maximise loading, with a bigger crushing chamber, optimised liners and specific rotors to boost productivity in every type of application.

•   Maintenance Benefits
The modularised construction method of the crusher, ensures that all of the hardened cast liners within the crusher are of a single uniform size.

HIGHLIGHTS

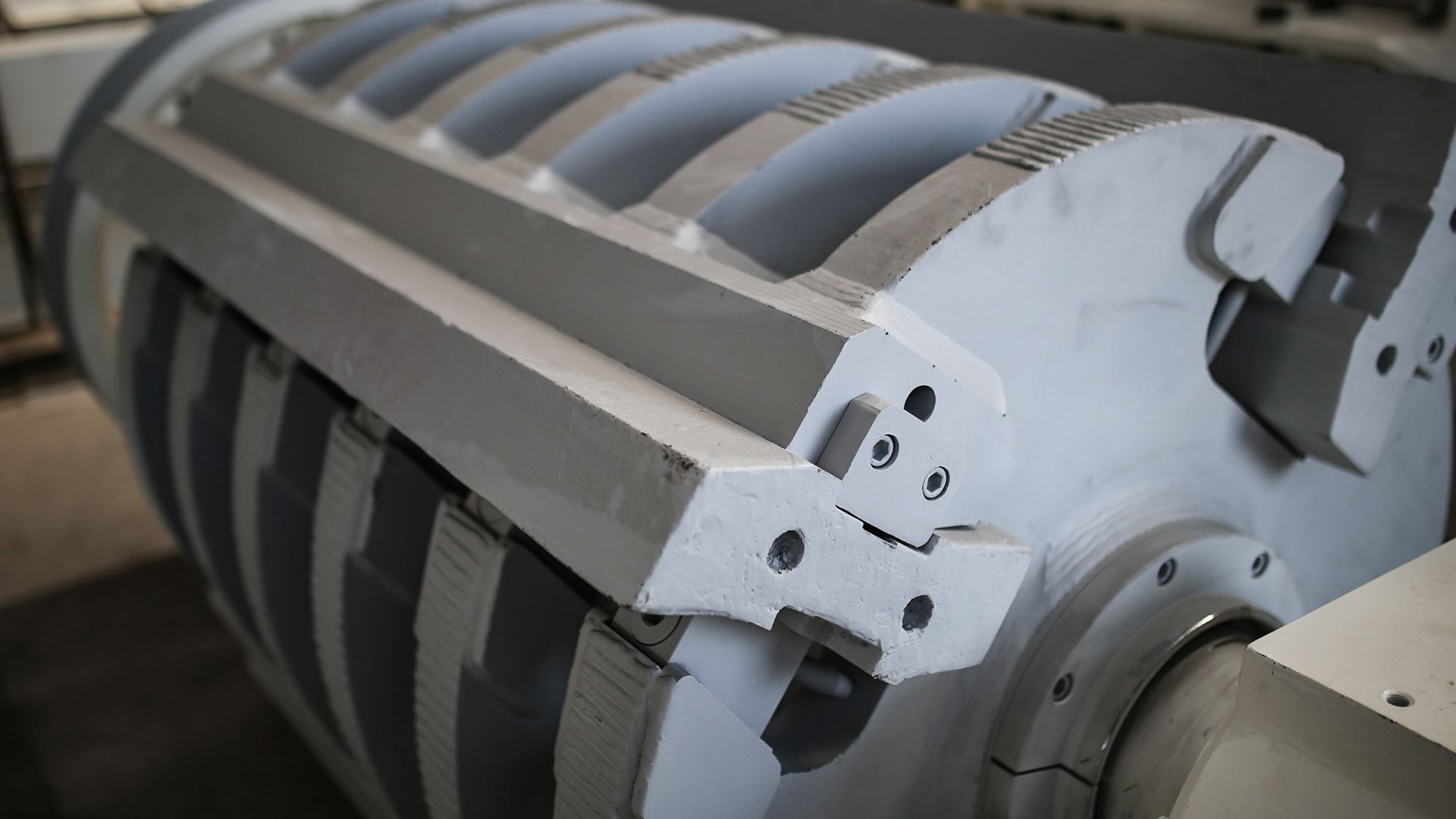

•   Heat Treated, Dynamically Balanced, Hard-Surfaced Rotor
•   Hydraulicly Opening Crushing Chamber for easy maintenance
•   Hydraulicly Assisted Breaker Plate Adjustment
•   Optional third breaker plate to control the top product size in open circuit
•   Positive Rotor Lock for Safe Maintenance

Crash Crusher Mineral Processing Solutions PDF, 4.71 MB

SECONDARY IMPACT CRUSHER / TECHNICAL SPECIFICATIONS

metric imperial	MSI 1210	MSI 1312	MSI 1315	MSI 1110H	MSI 1112H	MSI 1115H	MSI 1415H	MSI 1420H
Rotor Diameter (mm) Rotor Diameter (inch)	1150 45	1300 51	1300 51	1120 44	1120 44	1120 44	1400 55	1400 55
Rotor Width (mm) Rotor Width (inch)	1000 39	1250 49	1500 59	1000 39	1200 47	1500 59	1500 59	2000 79
Feed Opening (mm) Feed Opening (inch)	1020x815 40x32	1290x800 51x31	1540x800 61x31	1030x540 41x21	1280x540 50x21	1530x540 60x21	1530x1000 60x39	2030x1000 80x39
Maximum Feed Size (mm) Maximum Feed Size (inch)	250 10	350 14	350 14	300 12	300 12	300 12	350 14	350 14
Capacity (mtph) Capacity (stph)	100-150 110-165	150-250 165-275	250-350 275-385	130-200 145-220	170-250 187-275	250-350 275-385	350-450 385-495	380-600 418-661
Power (kW) Power (HP)	132-160 180-220	200 275	250-315 340-430	160 220	200 275	250-315 340-430	400 550	500 680
Weight (kg) Weight (lbs)	12400 27340	18000 39680	22600 49820	12280 27070	14320 31570	18800 41450	28760 63400	35000 77160

*For material weighing 1.6 t/m³ or 100 lbs/ft³.
Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design.

** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes.

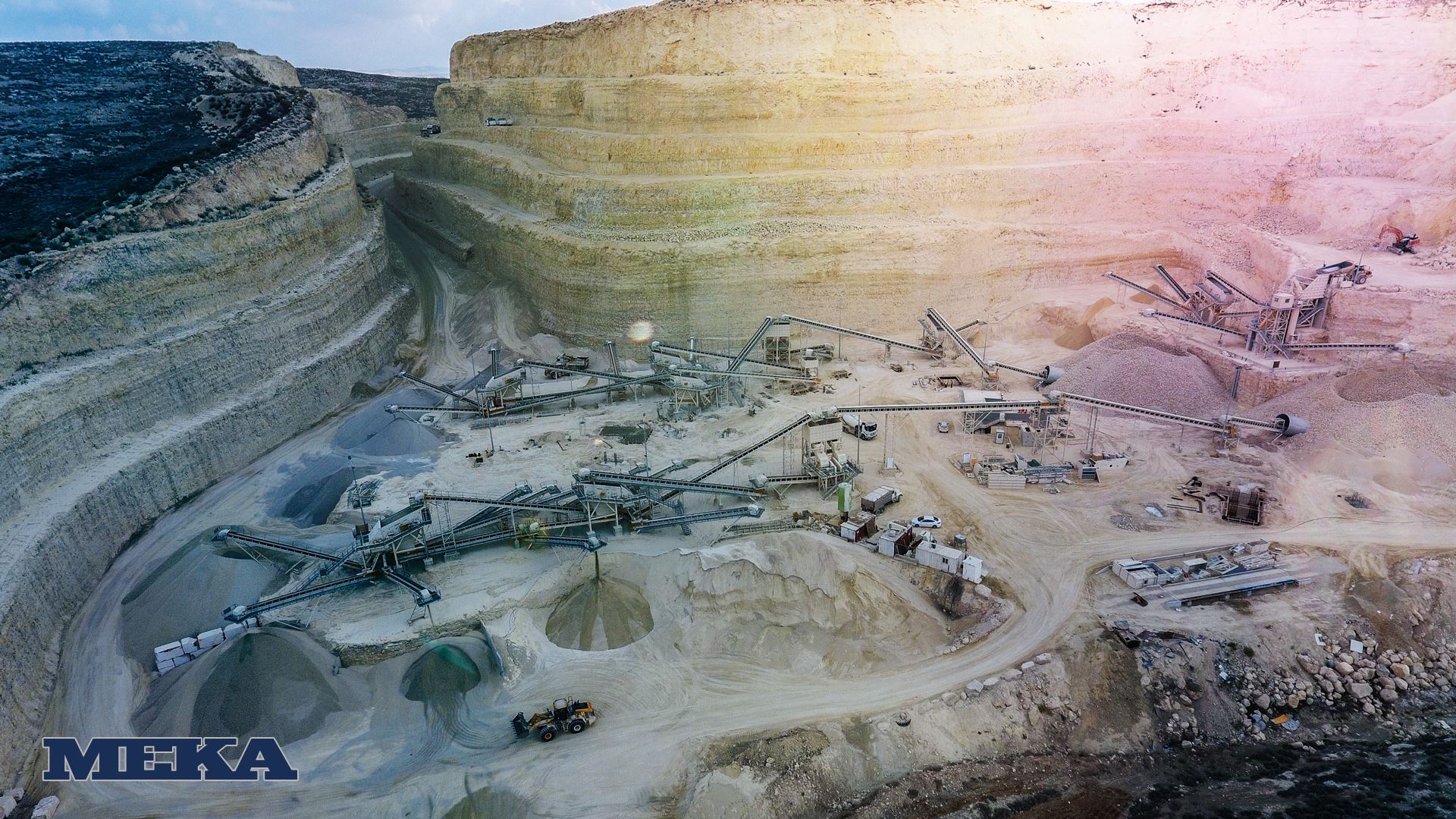

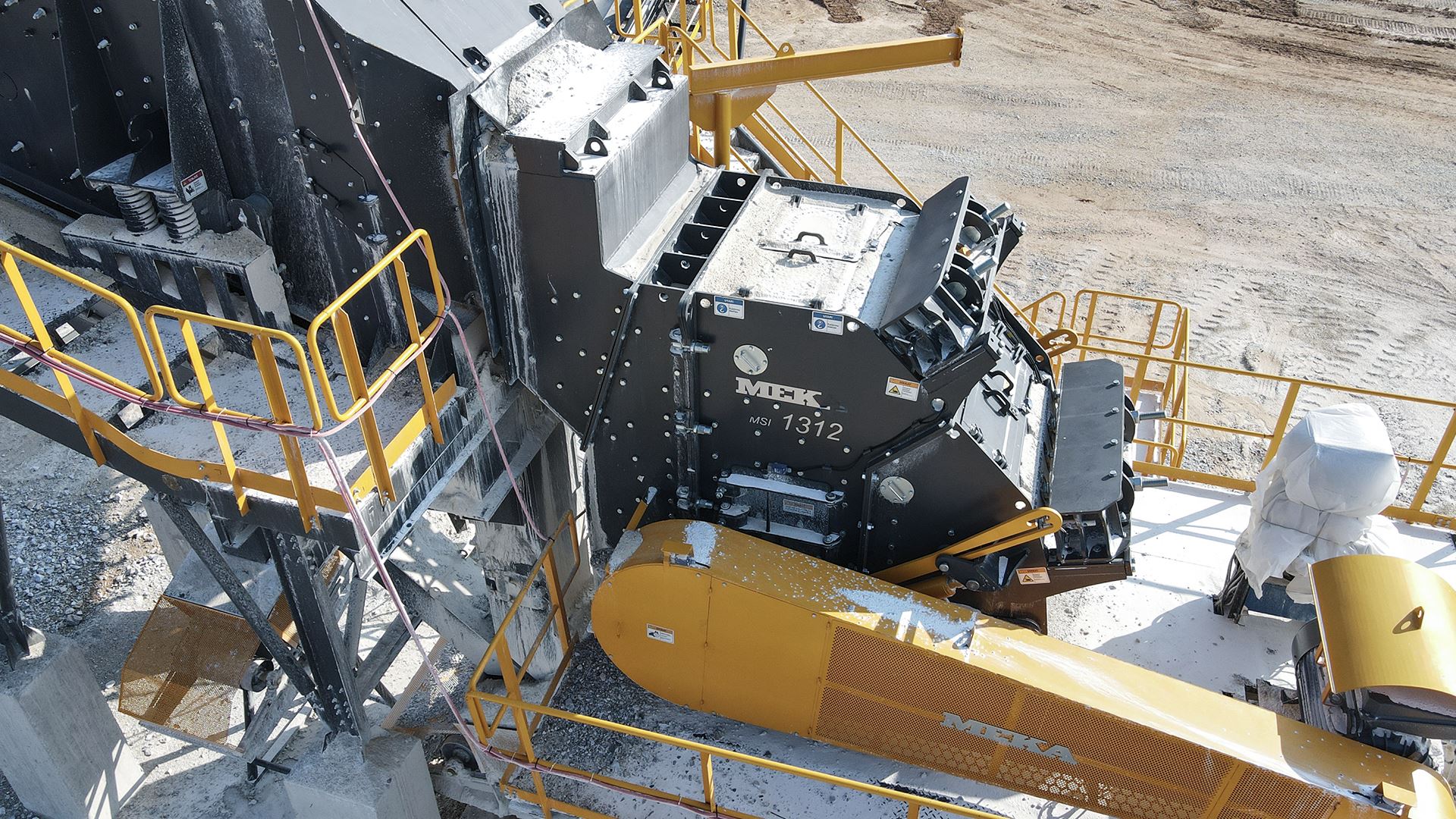

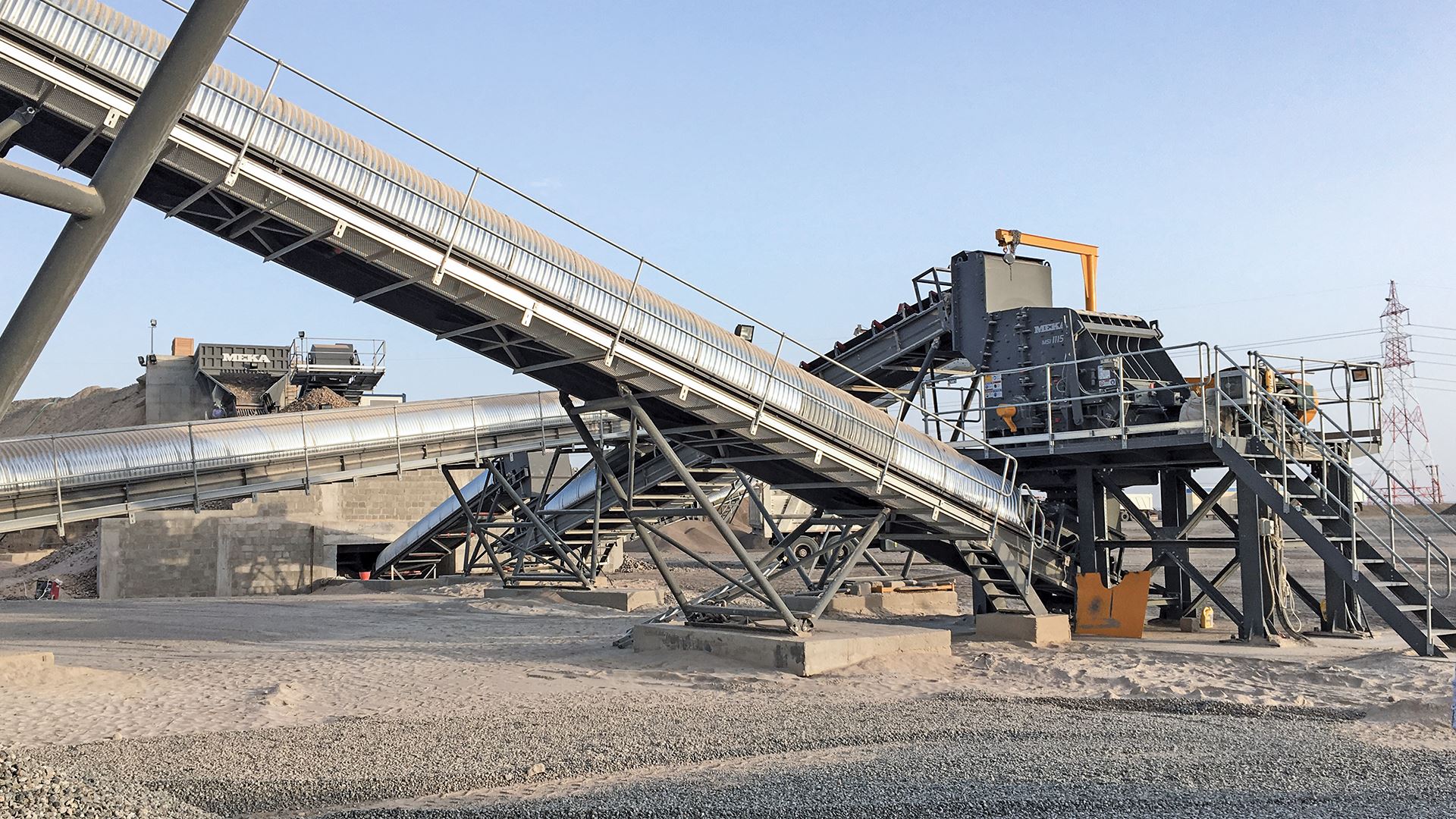

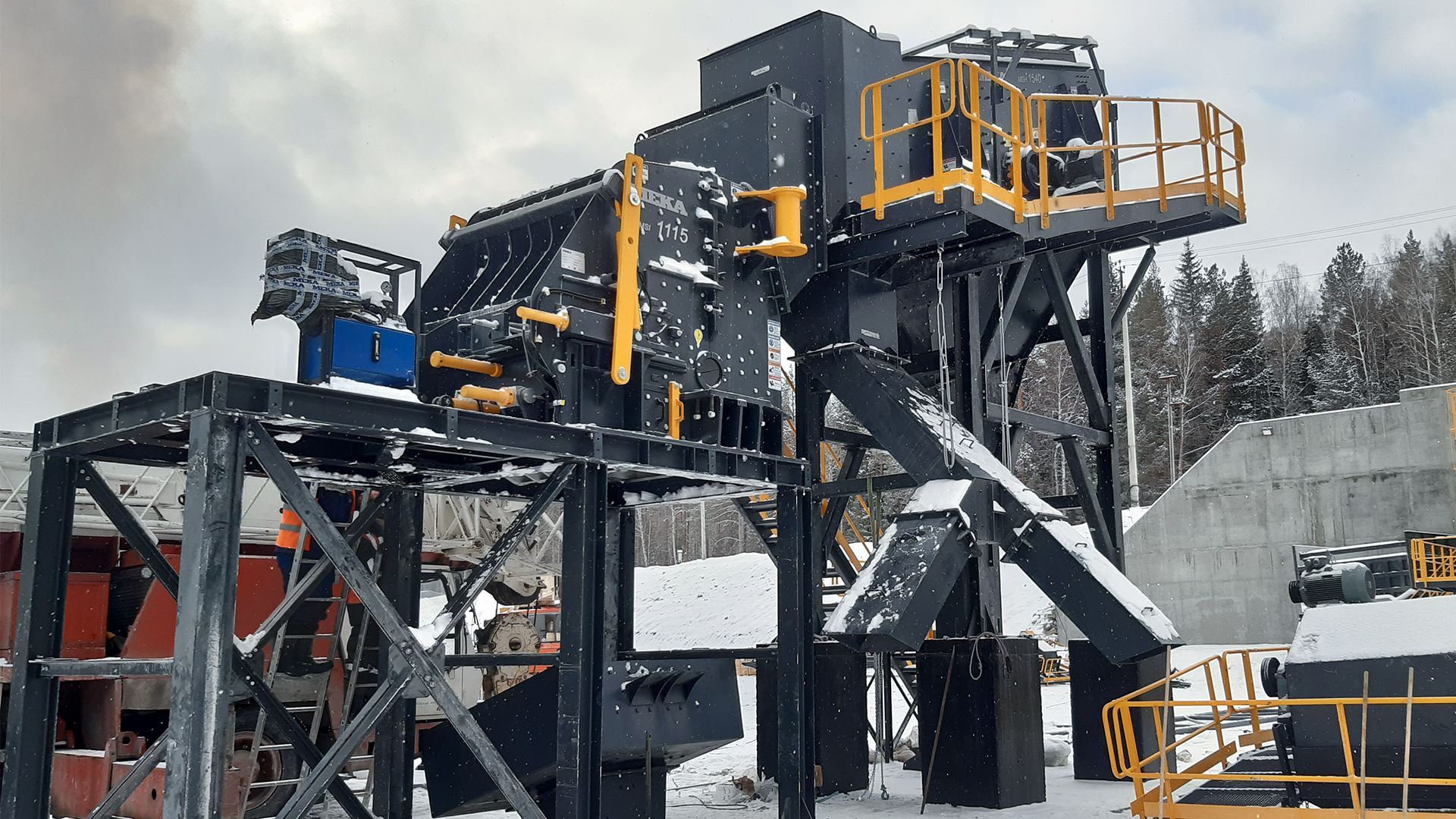

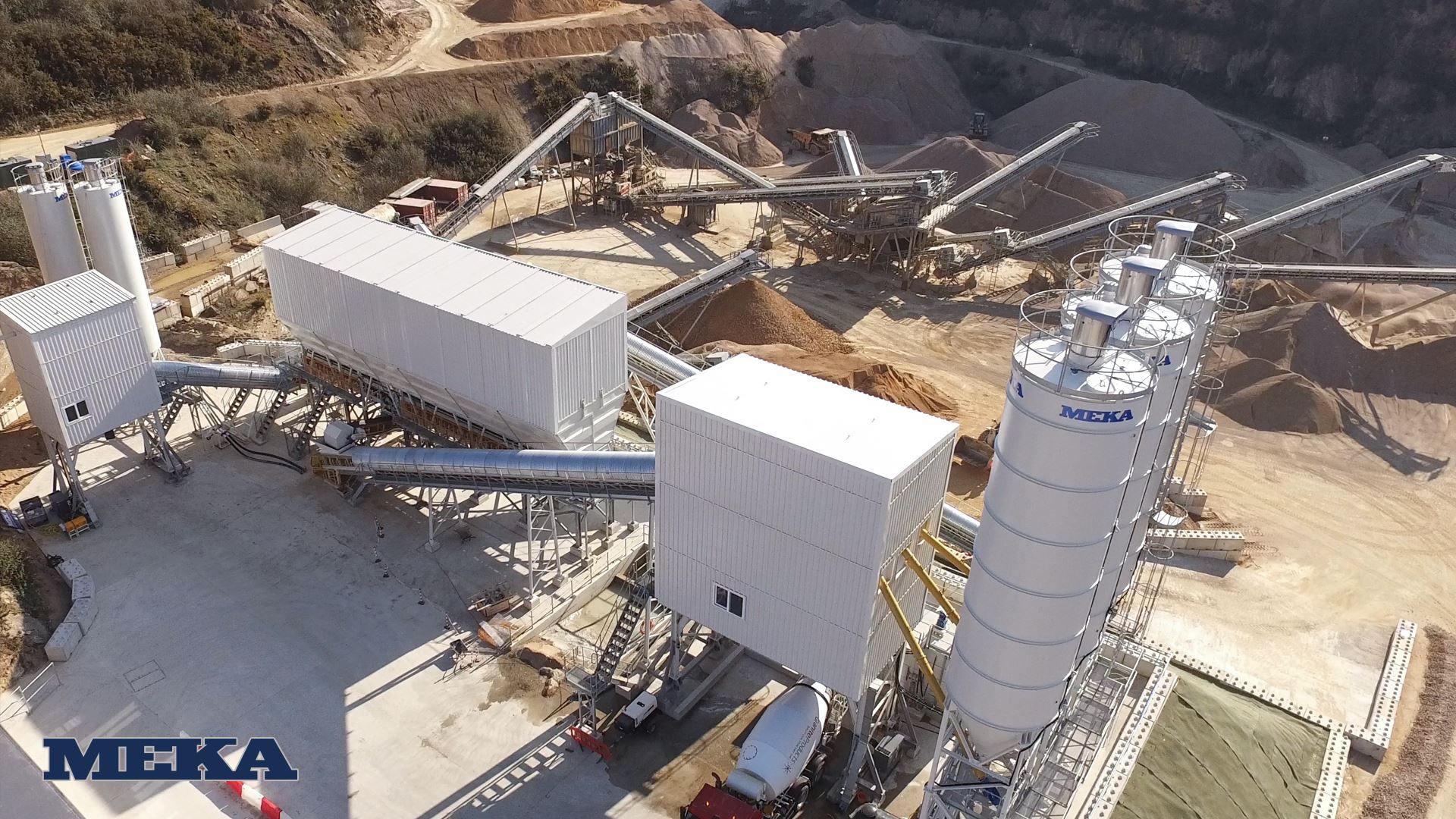

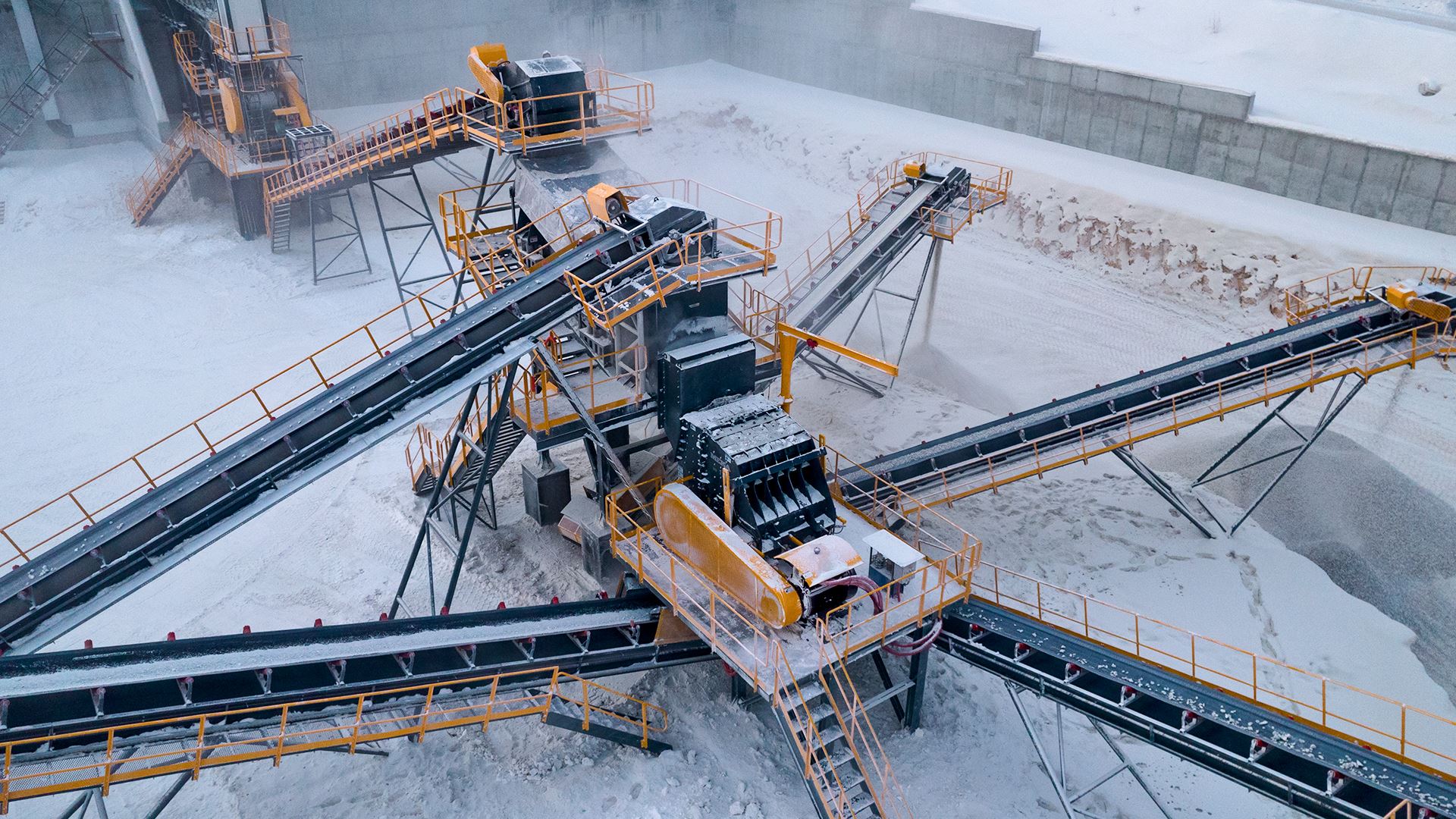

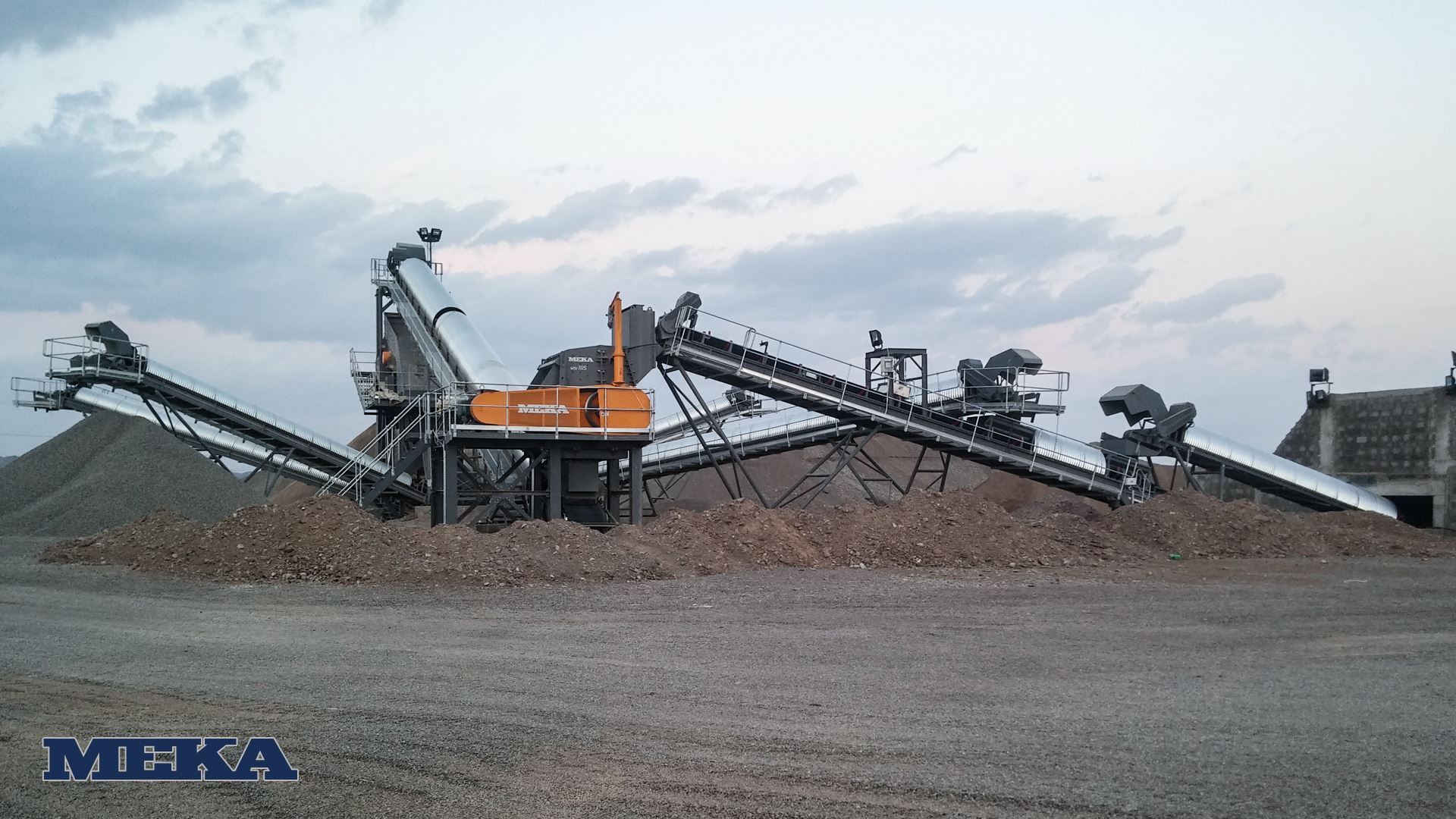

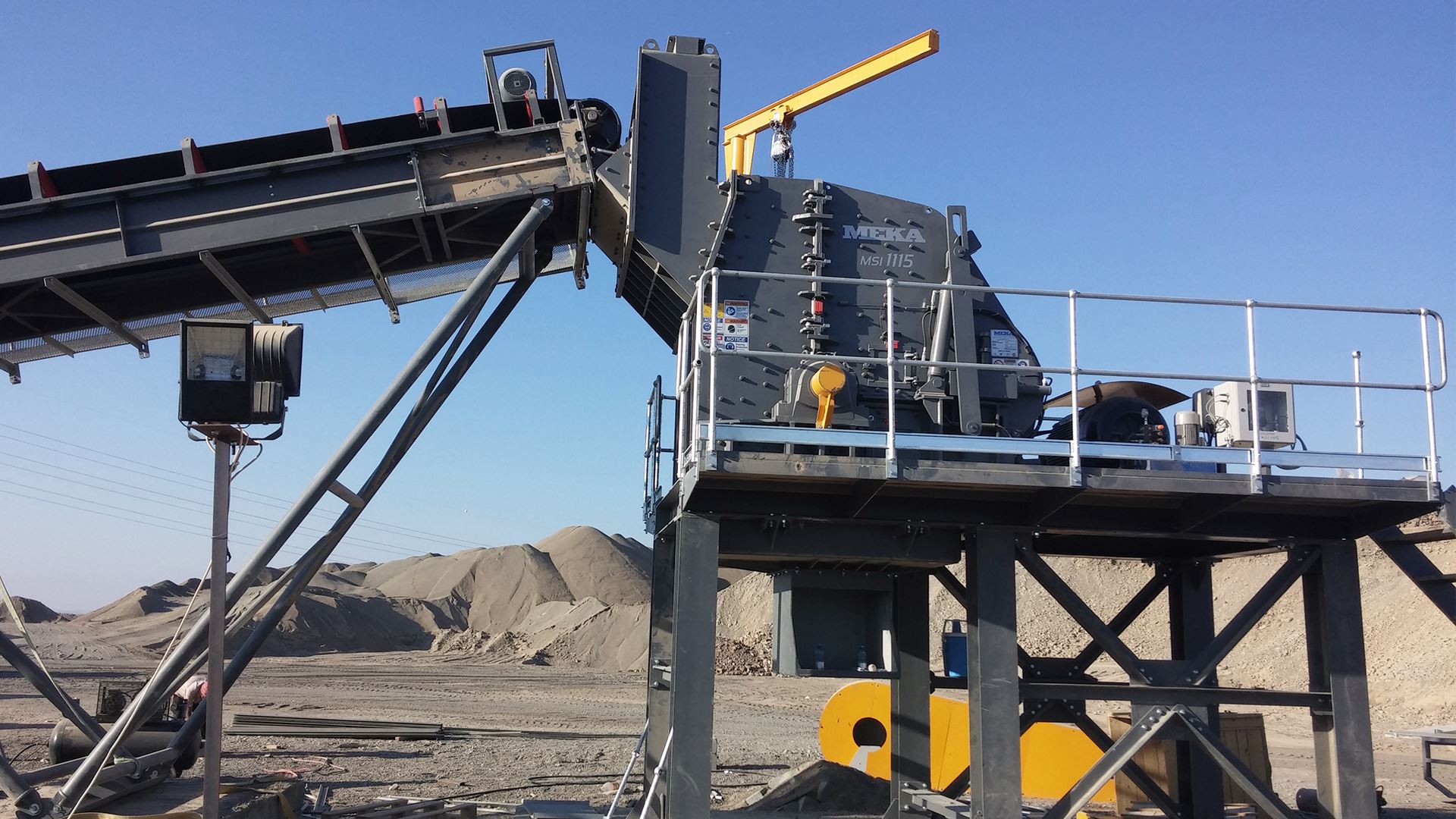

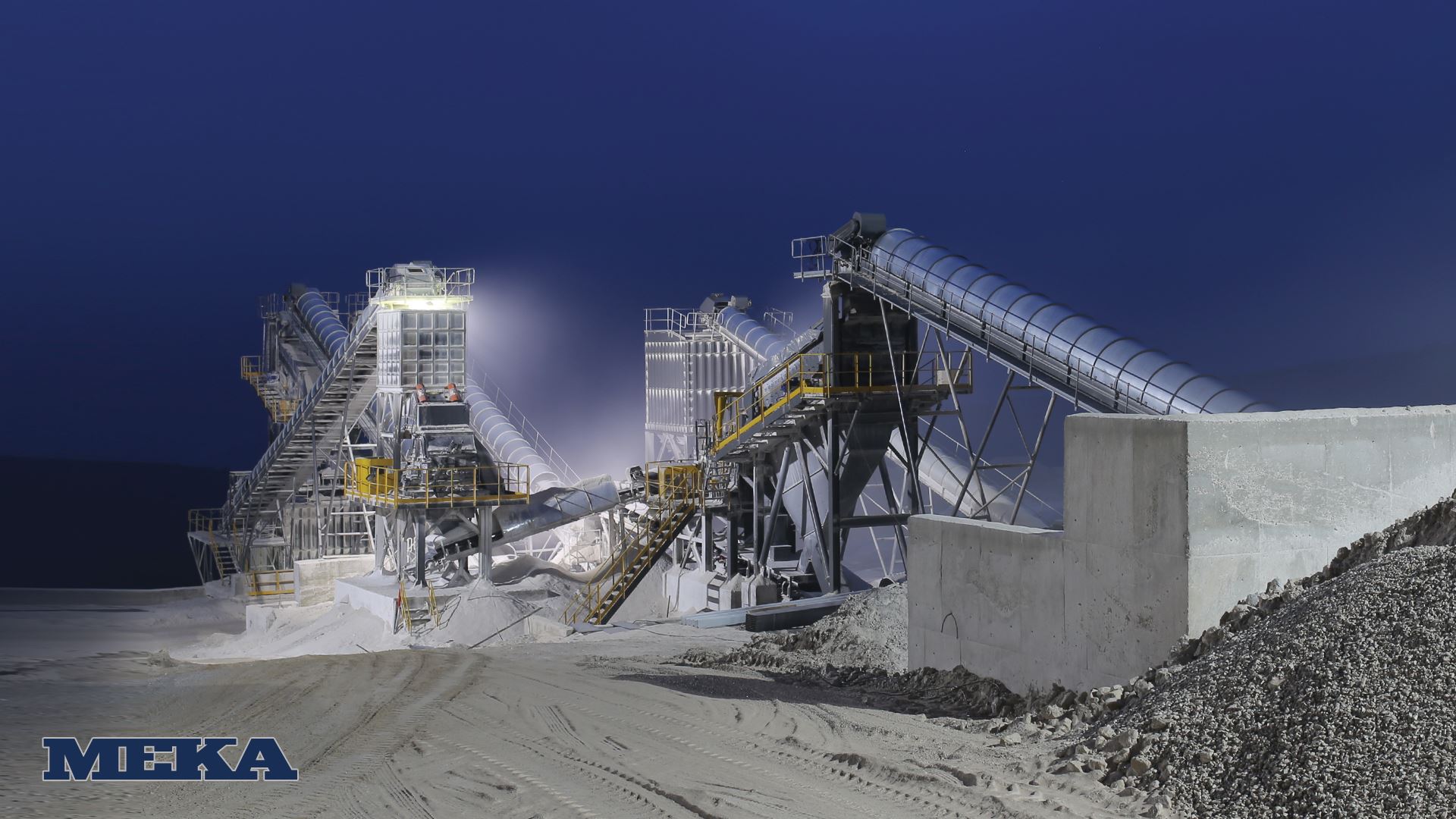

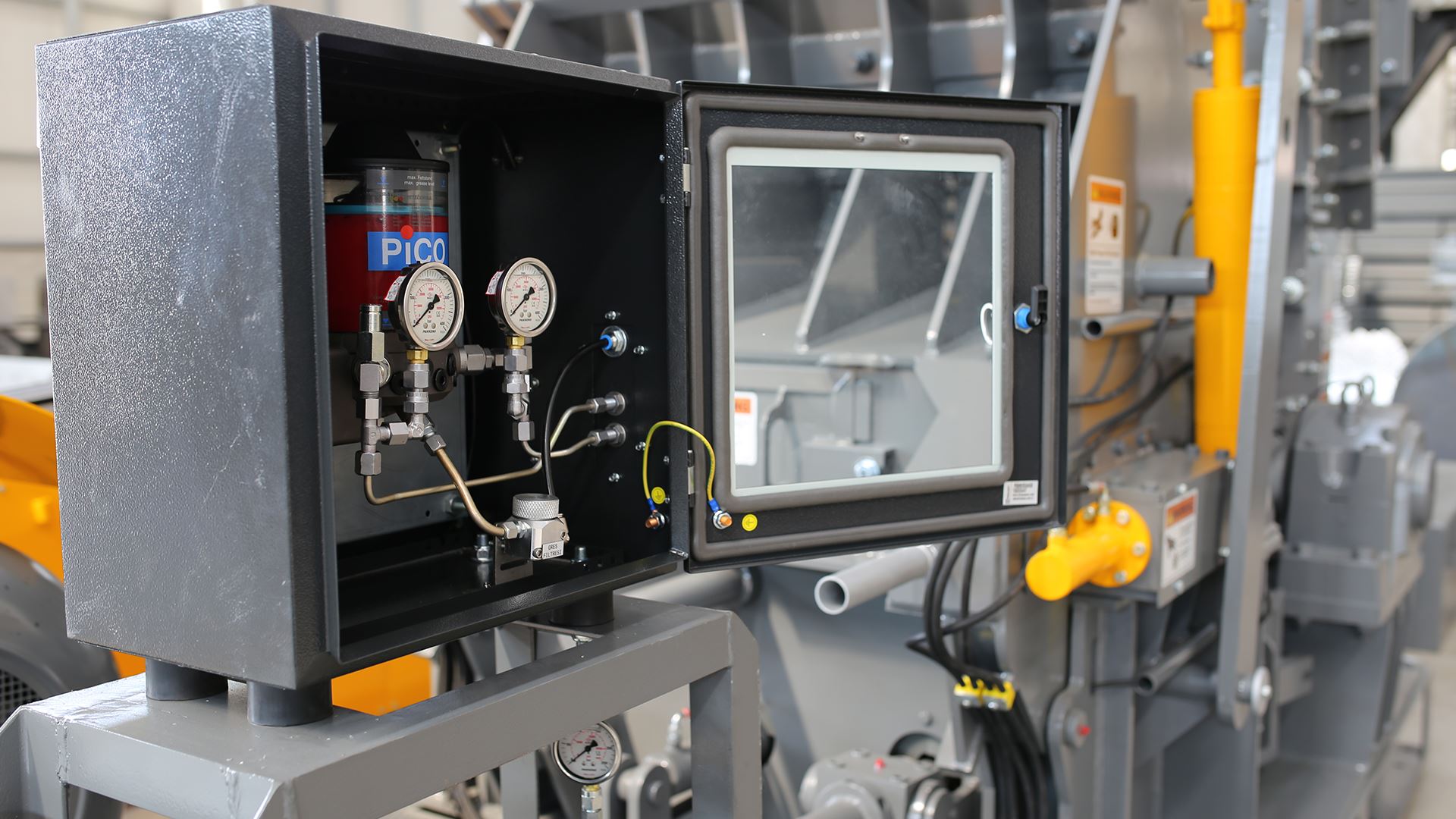

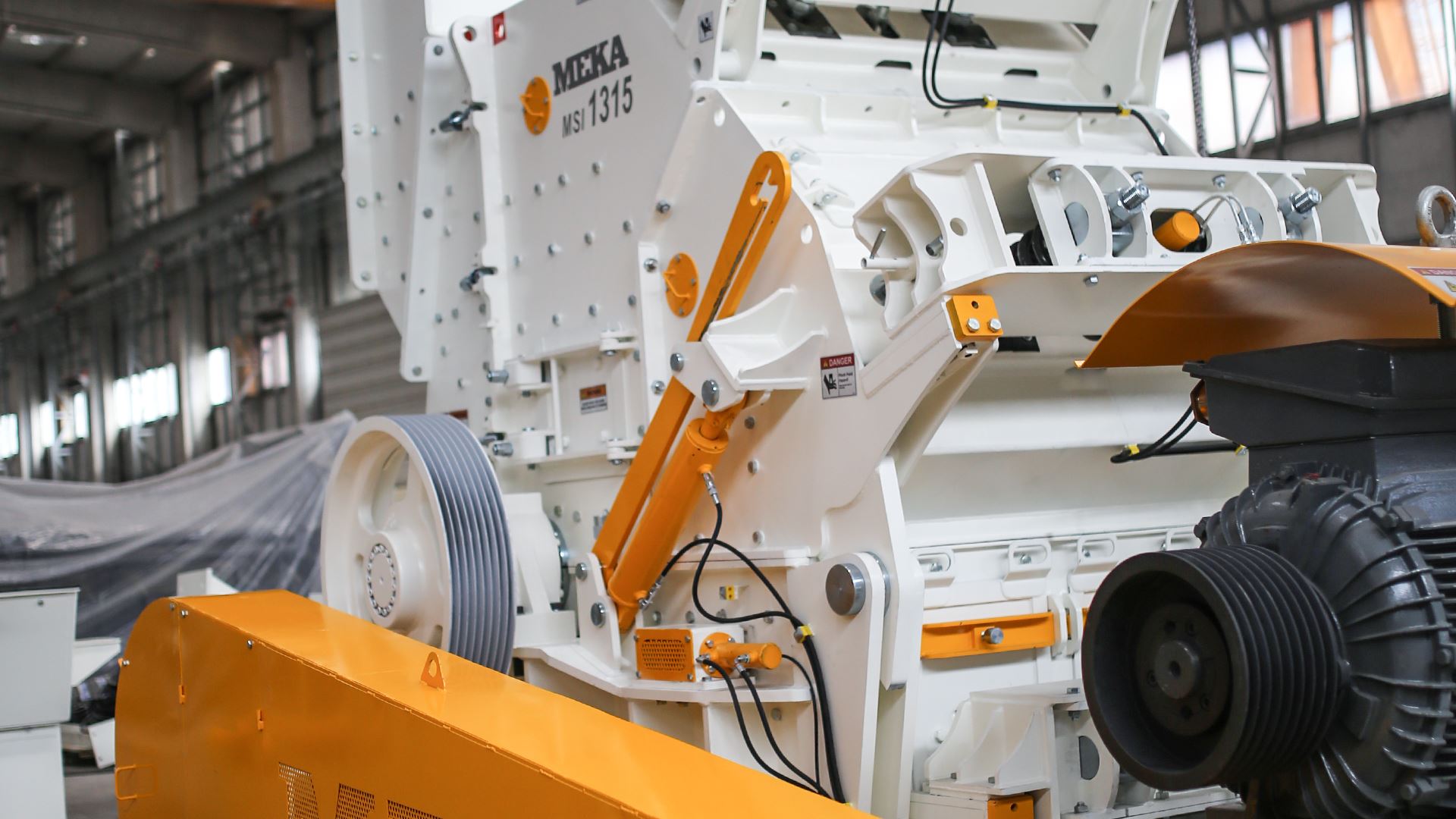

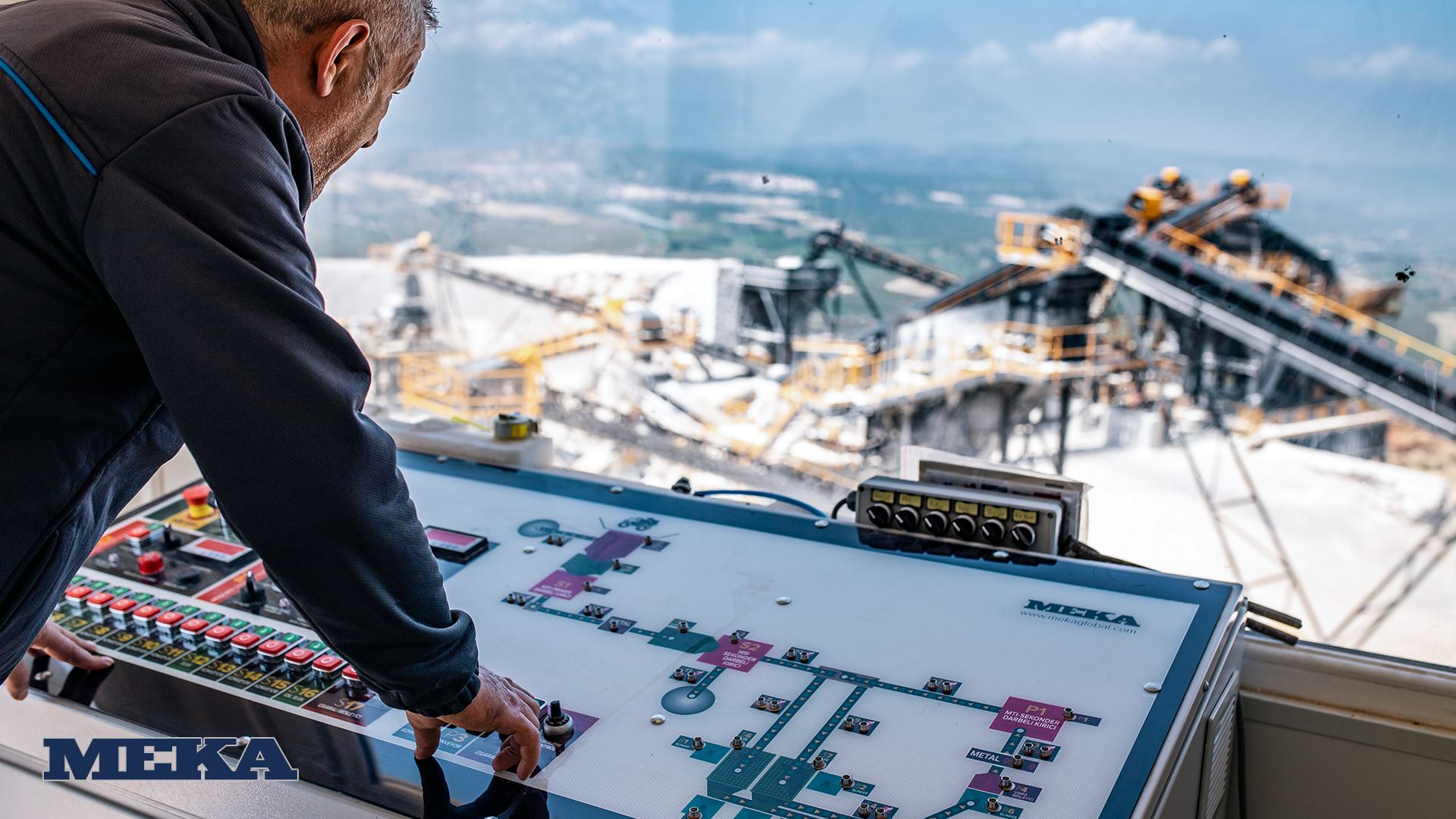

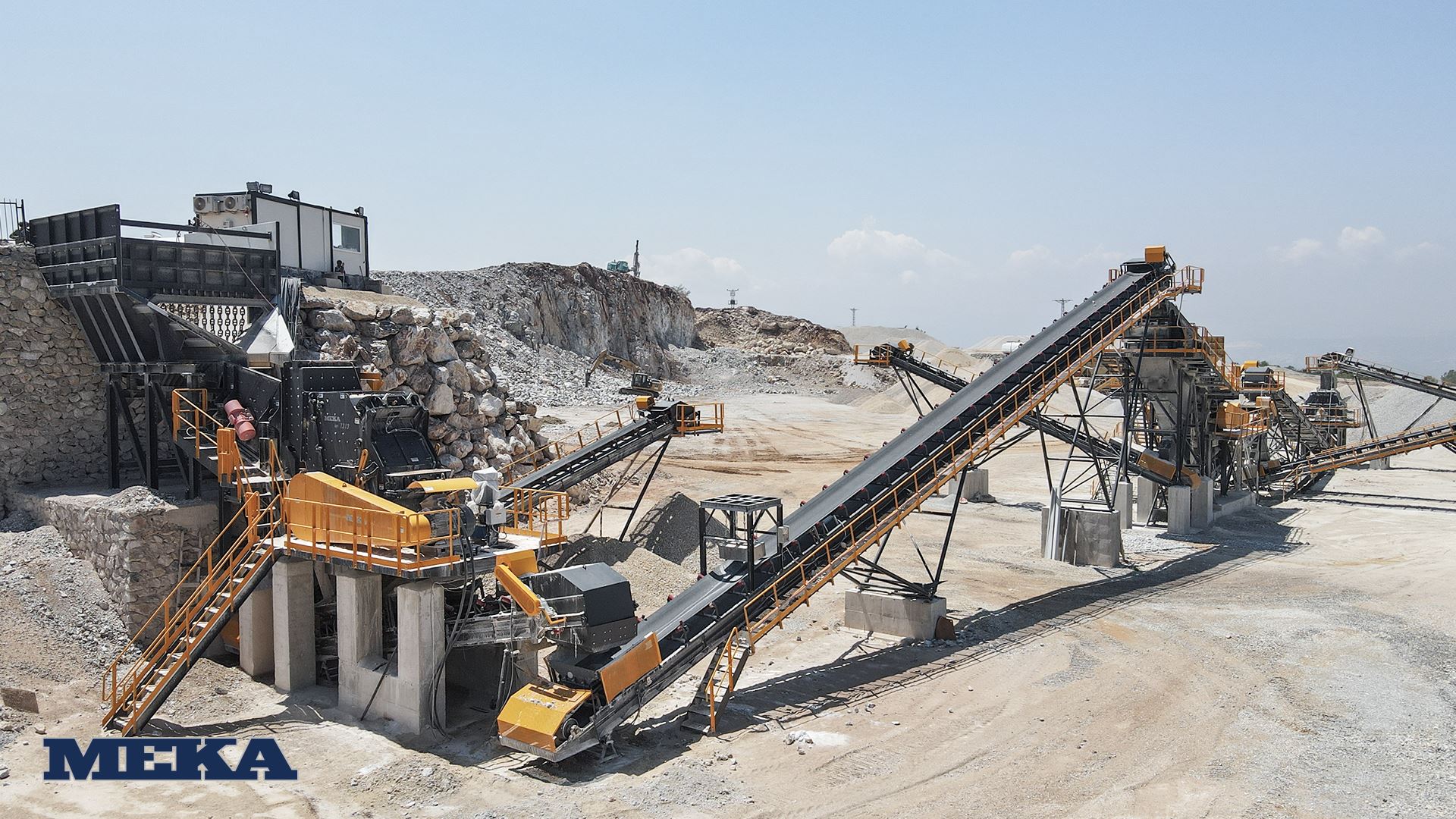

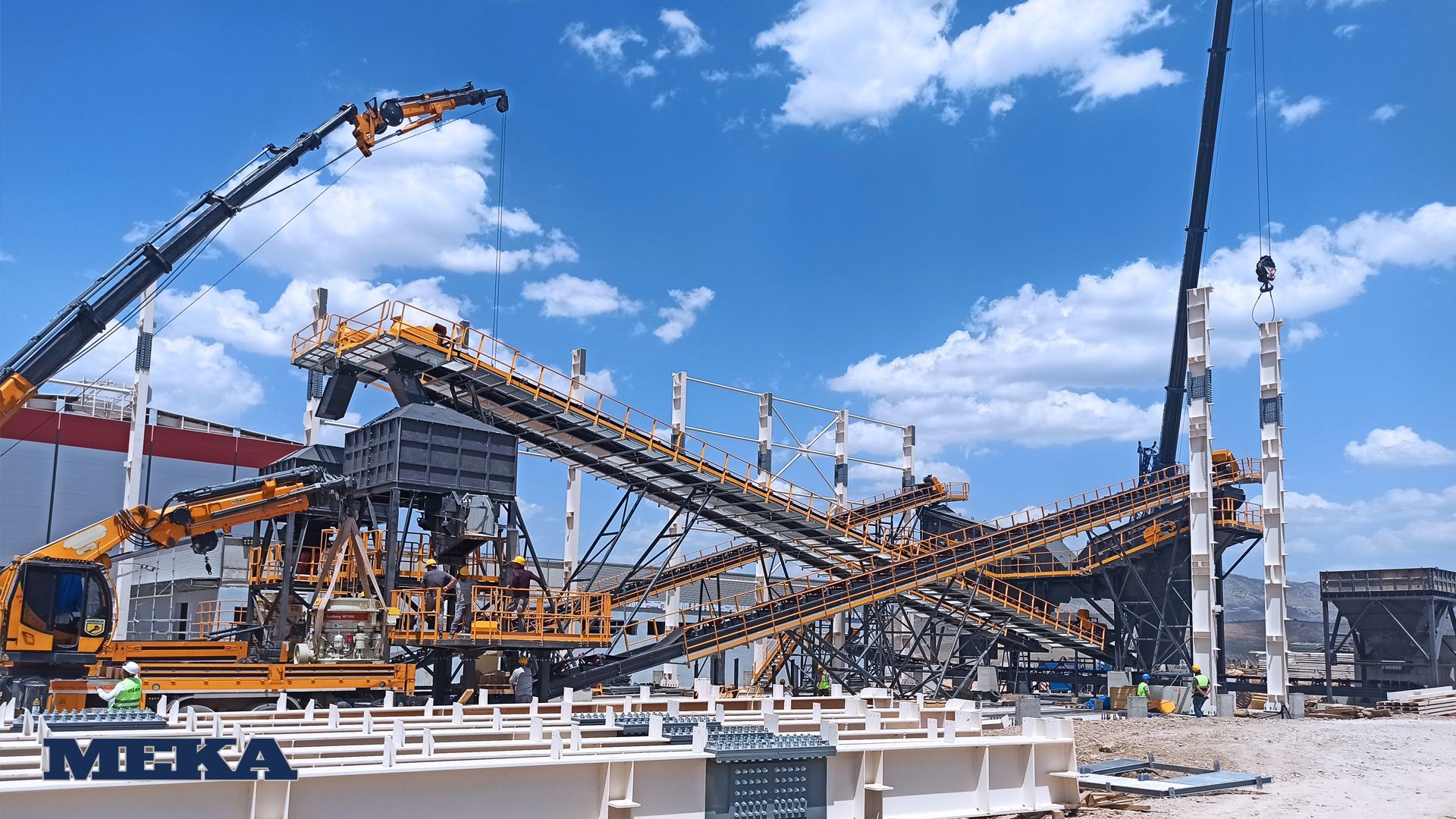

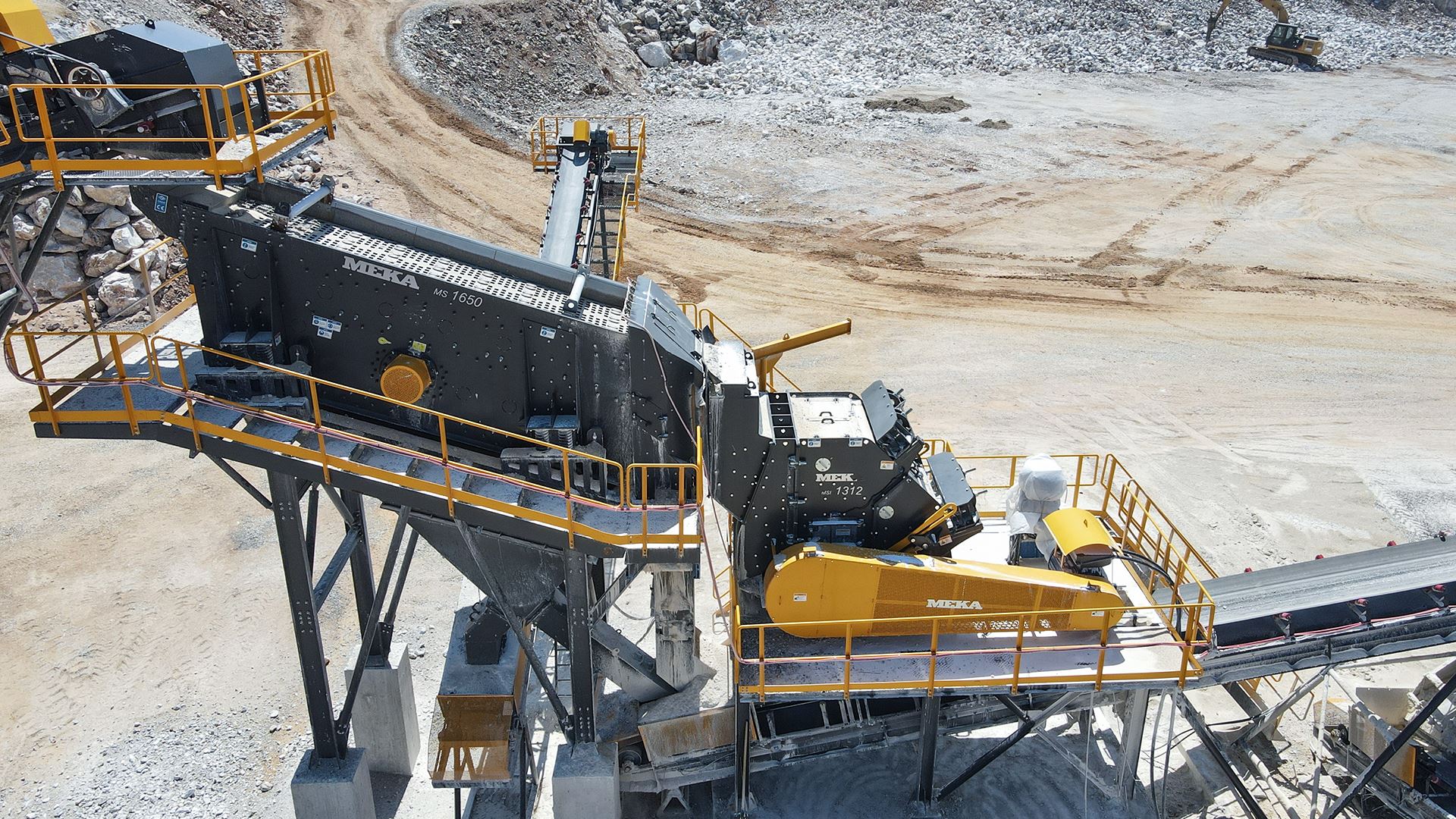

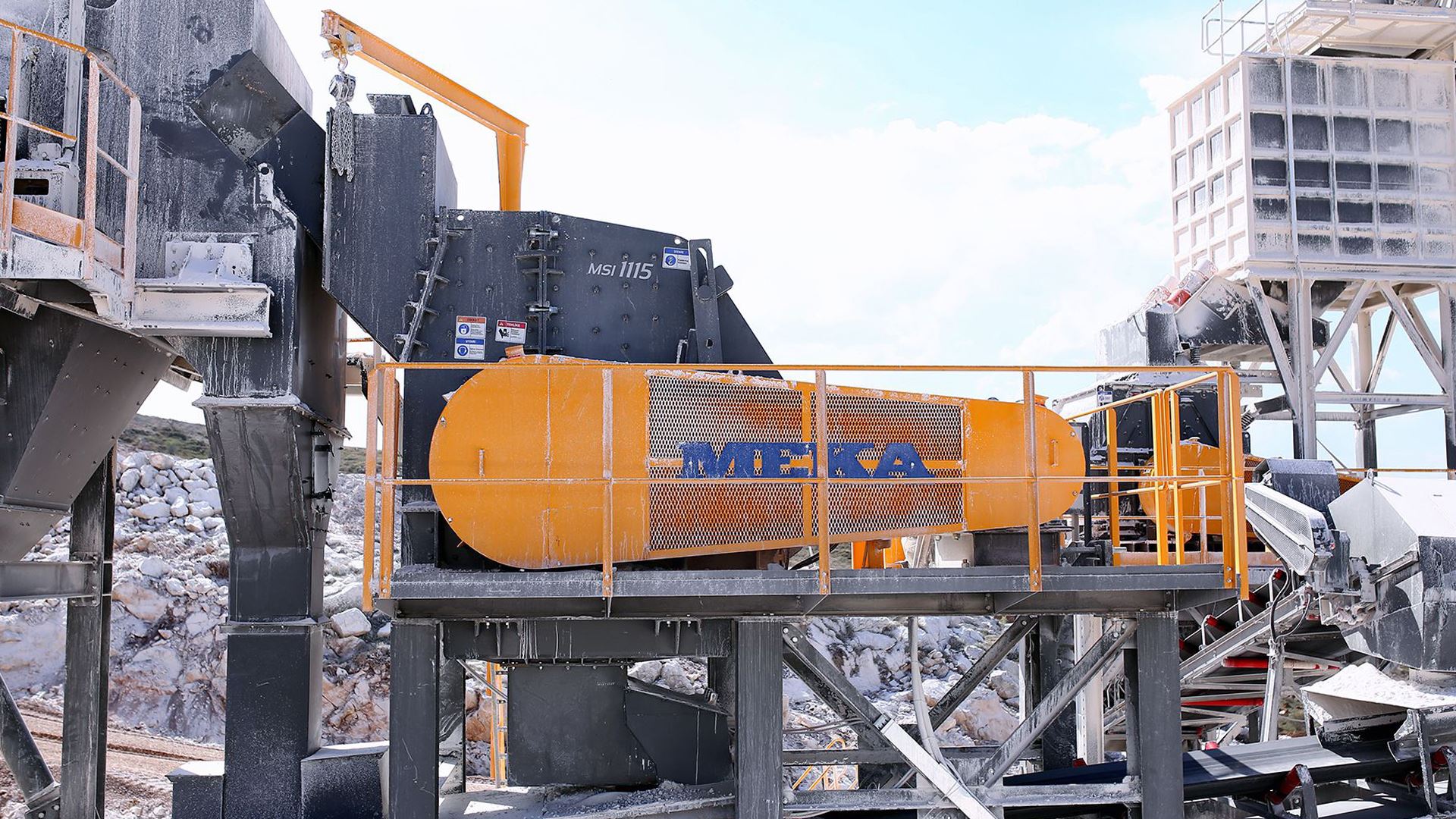

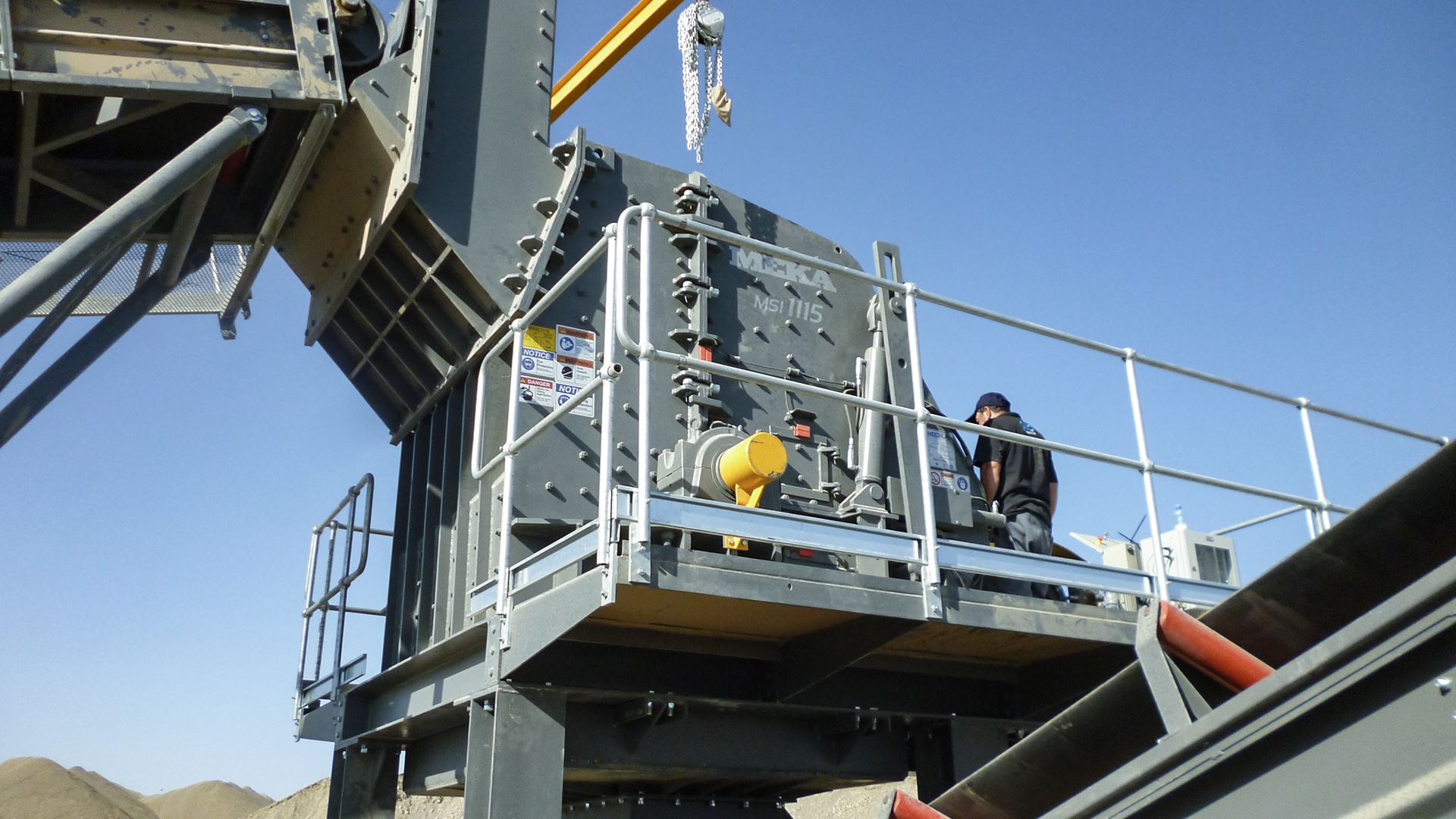

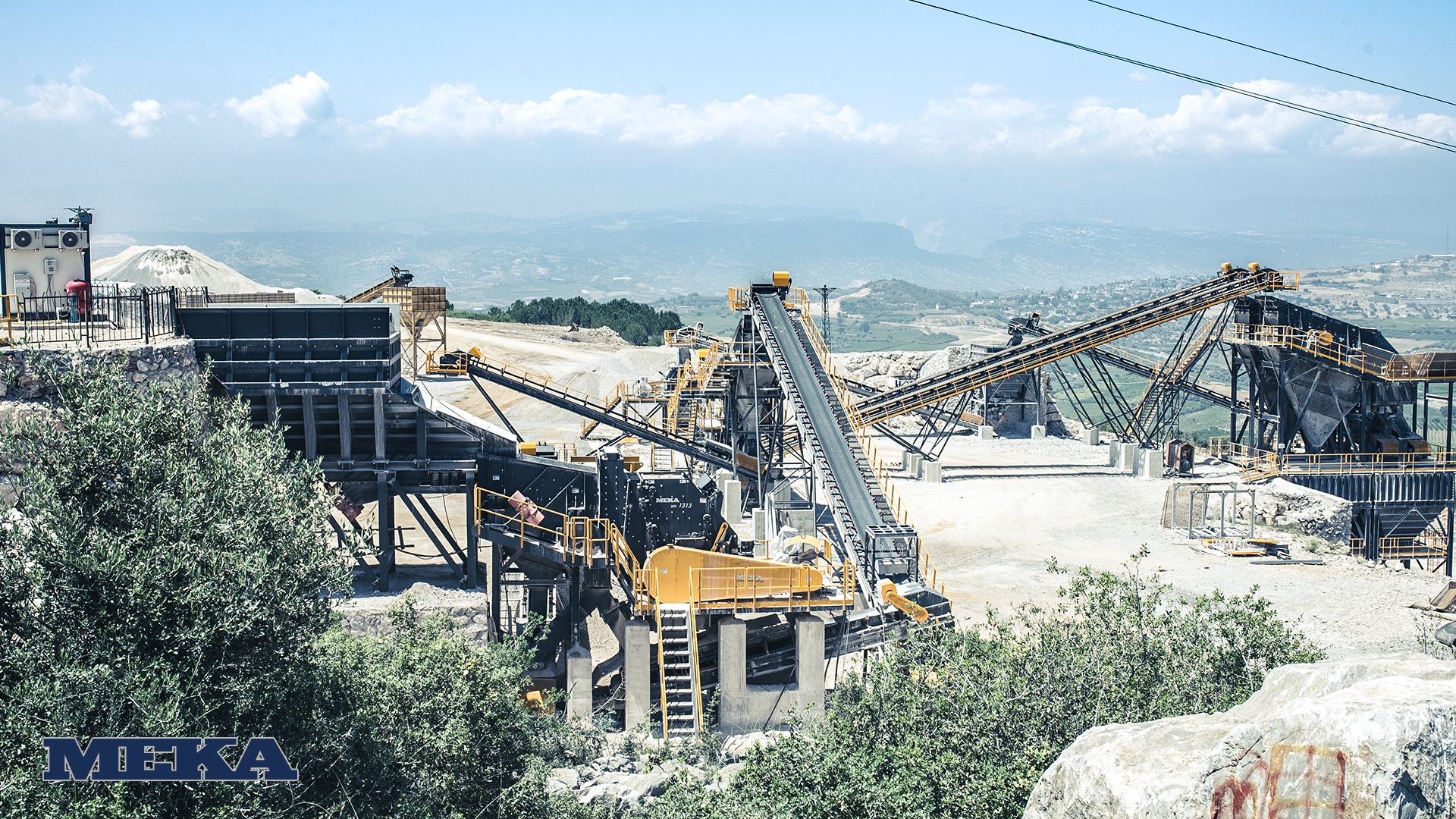

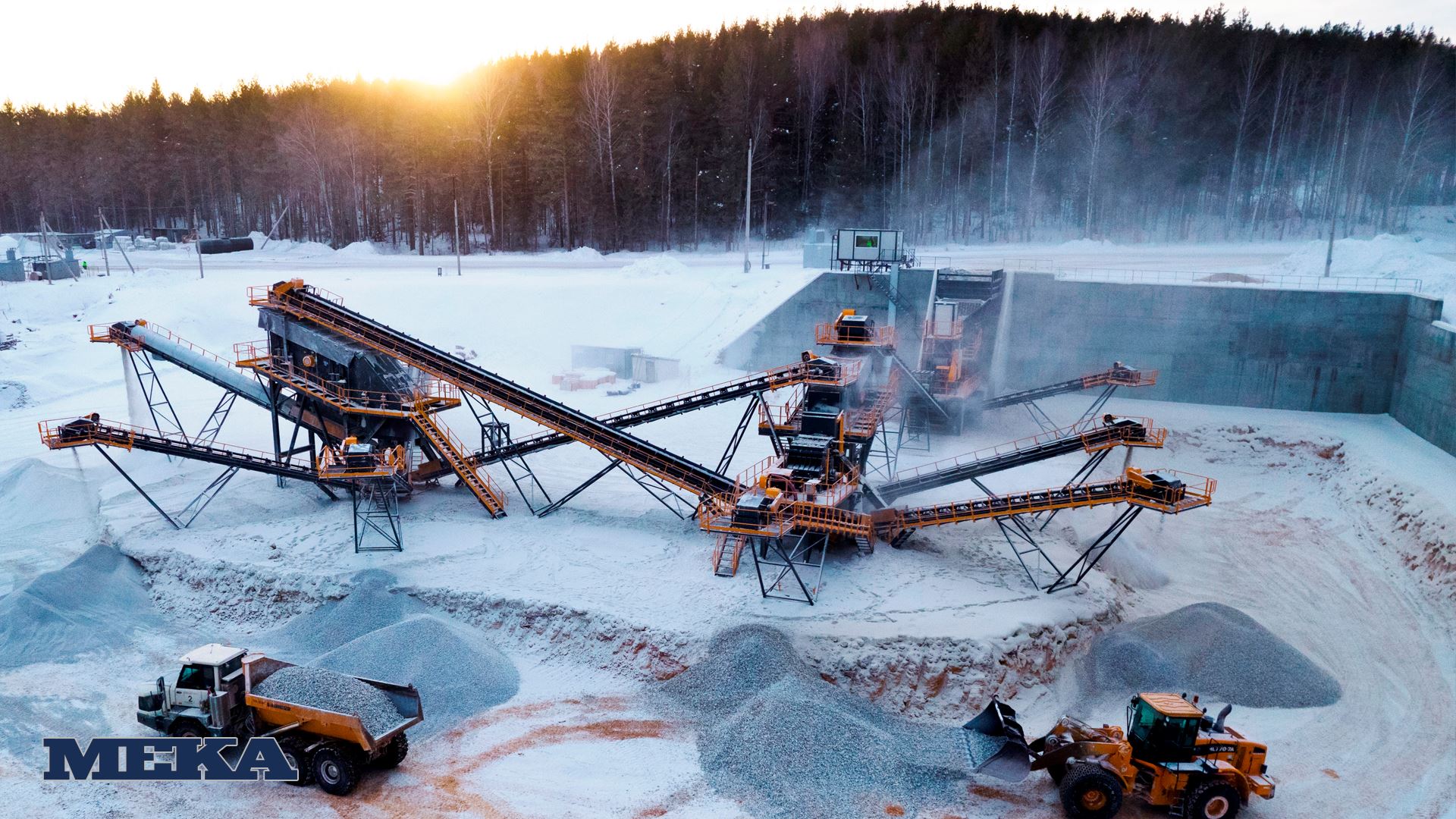

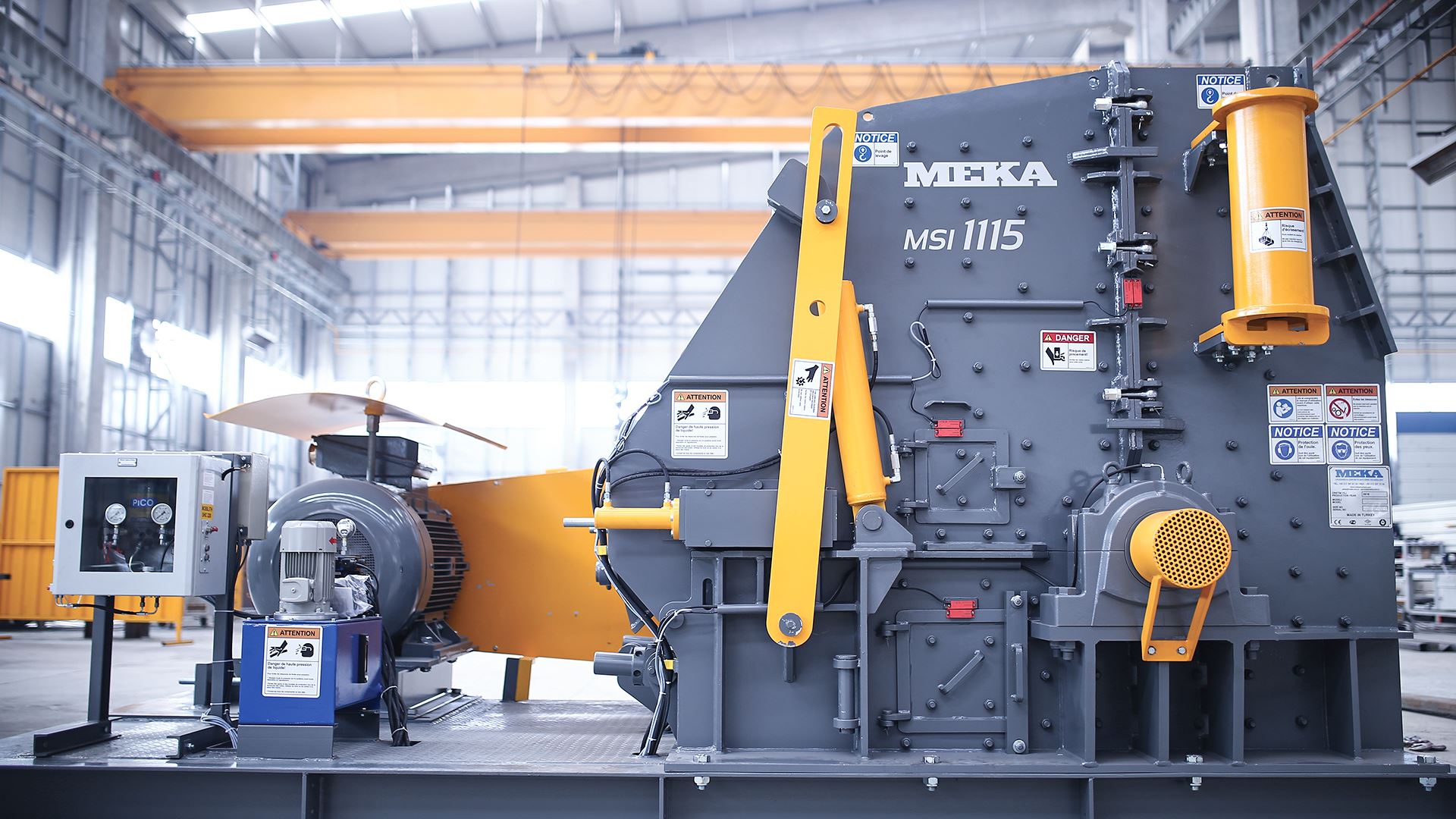

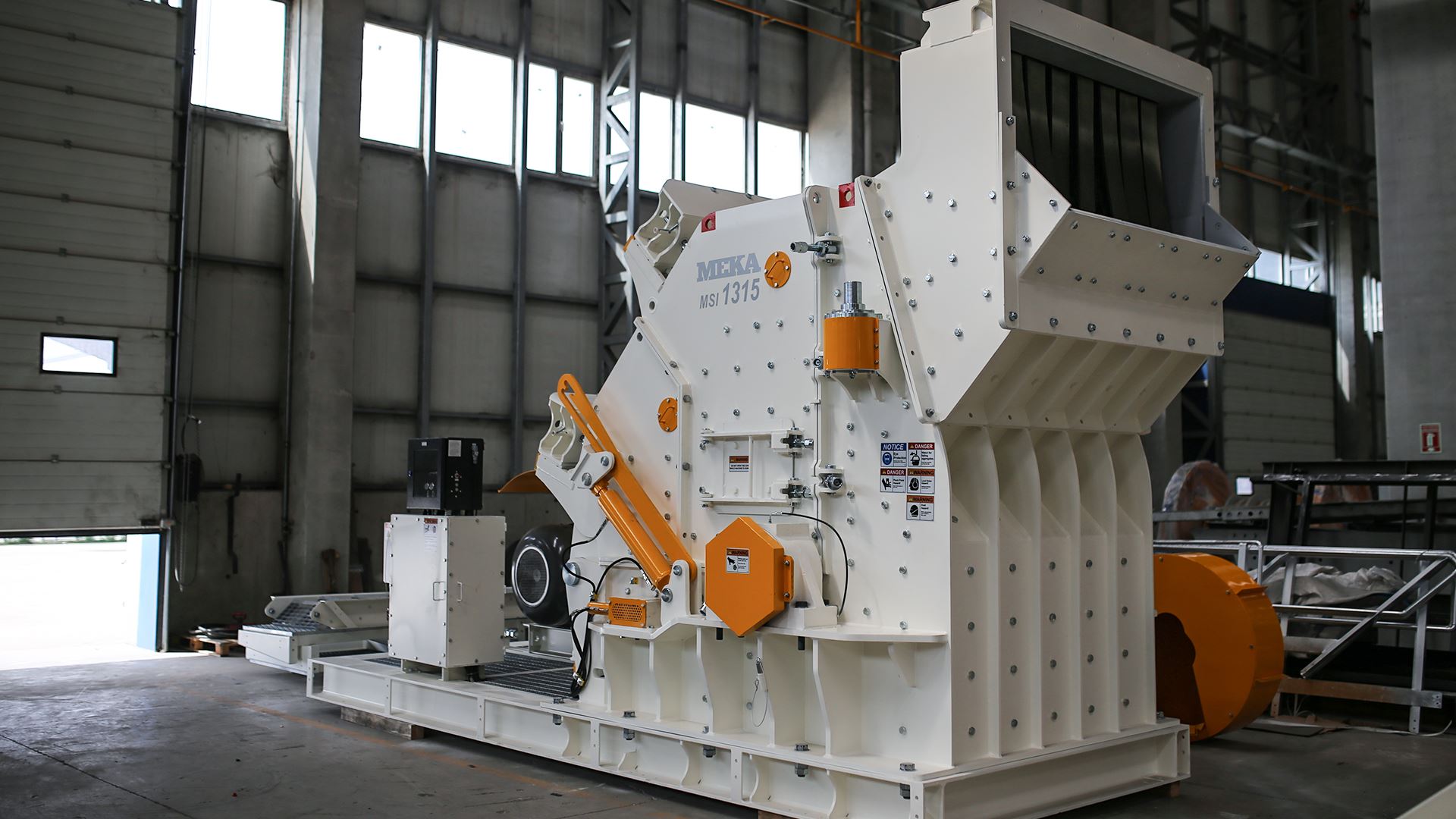

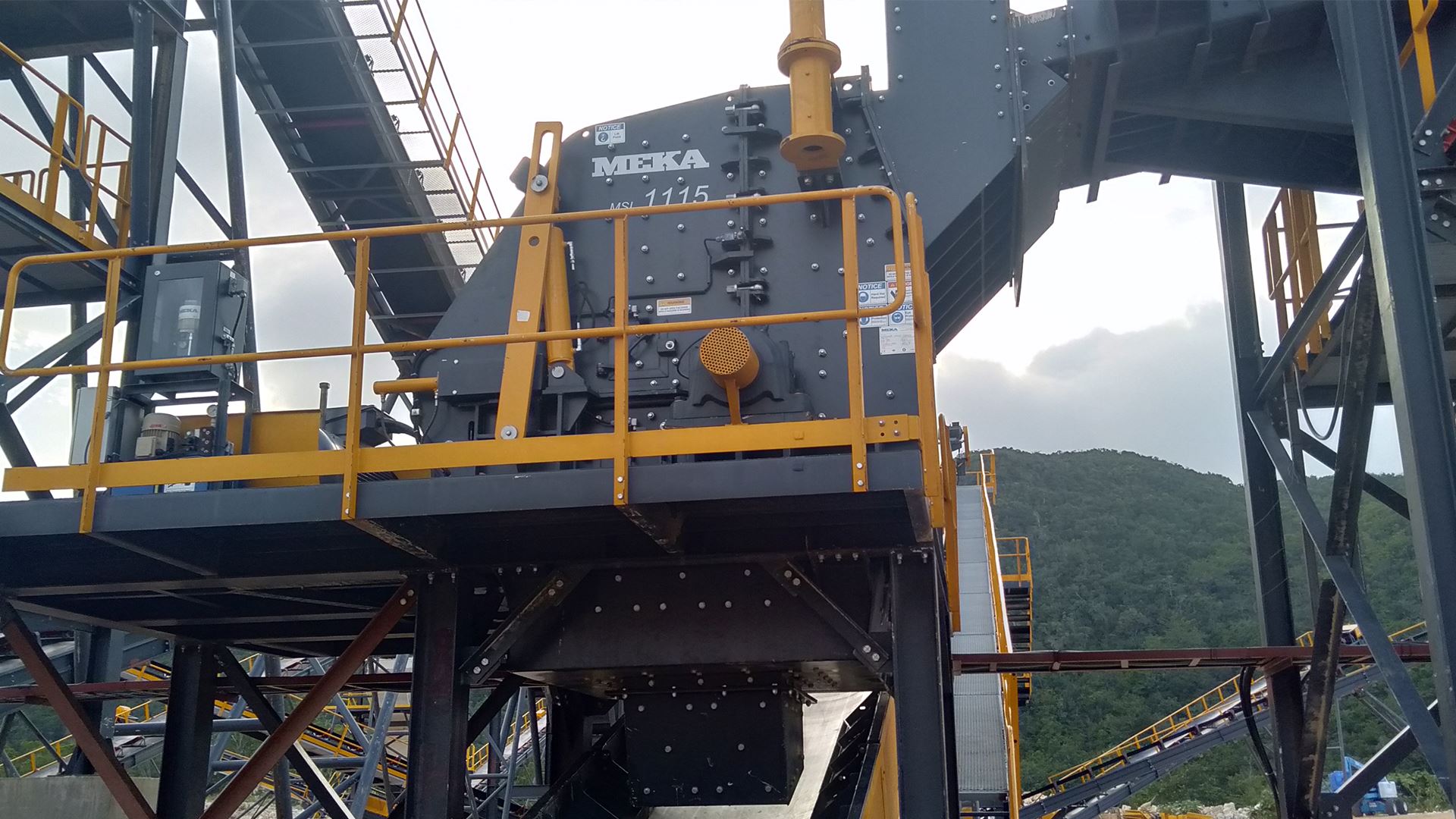

SECONDARY IMPACT CRUSHER / GALLERY
