Crash Crusher WHATSAPP100 m³/hour

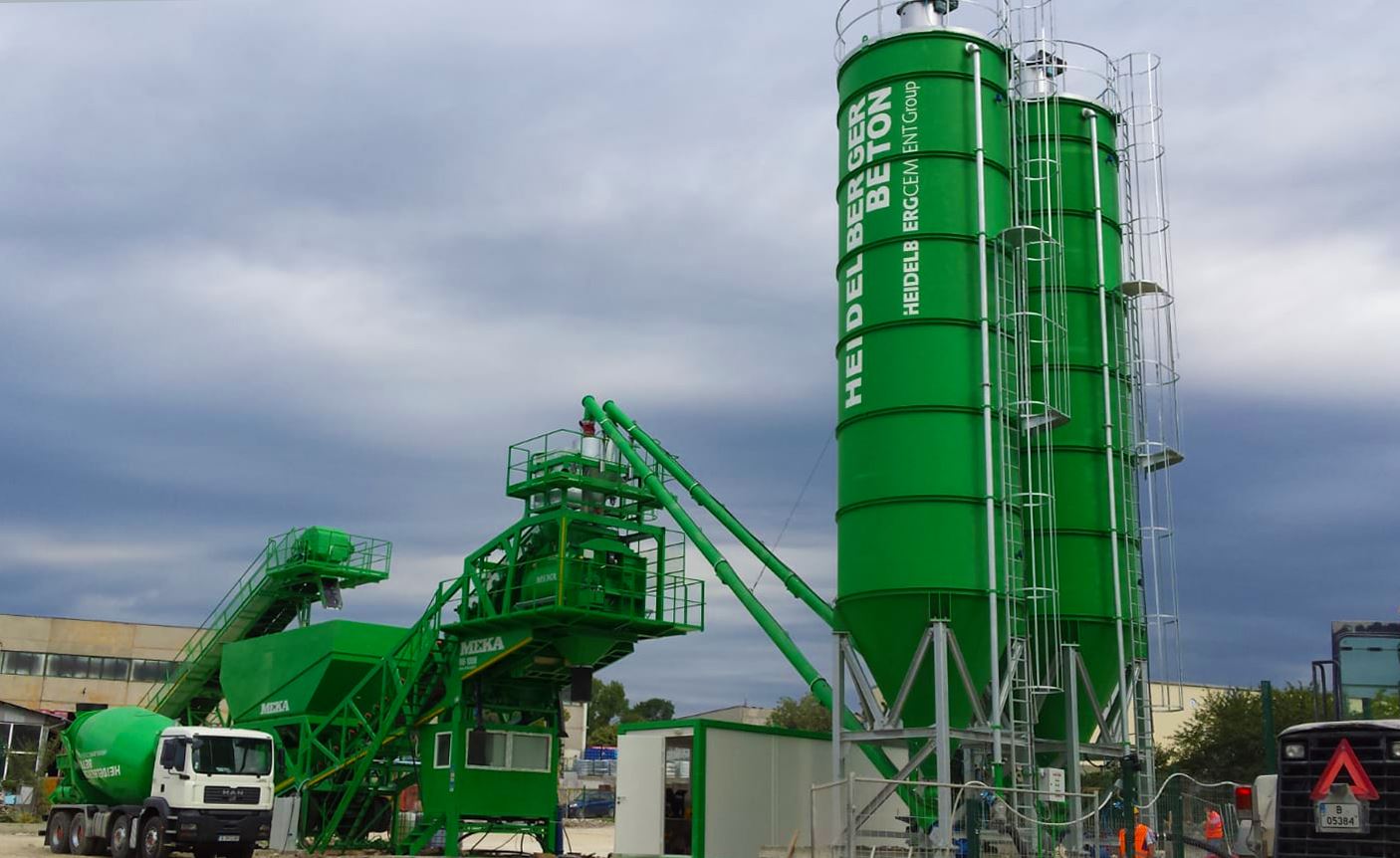

M100 Mobile Concrete Batching Plants
THE MOST PREFERRED MOBILE PLANT FOR SHORT-TERM PROJECTS
M 100 model is the optimum choice for mass production on temporary work sites. The durability offered by stationary batching plants coupled with the flexibility of the mobile design make it an unmatched solution for every professional organization. Installation requires minimum or no foundations, thus reducing operational costs and bringing mobility to a new level.
PLANT CAPACITY
CONCRETE MIXER
Twinshaft Mixer
2,25 m³/cycle
2x37 kW
STORAGE & FEEDING
4x15 m³ Cross Type
Ramp or Pre-Feeding System
HOPPERS
1.000 kg
700 kg
20 kg
HIGHLIGHTS / M100
- Ultra Performance and Flexibility
Crash Crusher M 100 Mobile concrete batching plants are flexible, durable and ensure class-leading productivity. The model is preferred by contractors for temporary works, and by ready-mix concrete firms for its corporate flexibility. - Unique Single-Chassis Design
All of the operational equipment required for production is installed on the main single chassis of the mobile concrete plant and is transported in place. - Transport with a single tow truck
The M 100 concrete plant with two complete sets of screw conveyors, filters and other silo equipment, can be transported aboard a single trailer truck. All Crash Crusher mobile batching plants are equipped with two axles to ensure good weight distribution. - Quick Start Up Time
To reduce the installation time and crane operations, the main components in the M100 mobile concrete plant are installed, pre-wired and tested in the production facilities. - Minimum Foundation Required
Thanks to their design, Crash Crusher mobile batching plants require no or minimal foundations, thus reducing the operating costs and bringing mobility to a new level. - 180 Degree Truck Mixer Aproach
Due to its heavy duty chassis design, the M100 Crash Crusher mobile concrete batching plant requires no front supports. The absence of front supports not only reduces the installation time, but also brings useful operational characteristics, allowing mixer trucks to approach from three angles (180 degrees) and drive through. This feature is very useful for strict and narrow sites.
M100 / TECHNICAL SPECIFICATIONS
Metric |
Imperial |
|
| Compacted Concrete Output | 100 m³/h | - |
| Mixer Capacity (Compacted Concrete) | 2,25 m³/cycle | - |
| Mixer Type | Twinshaft Mixer | |
| Mixer Motor Power | 2x37 kW | - |
| Aggregate Bins | 4x15 m³ Cross Type | - |
| Aggregate Feeding | Ramp or Pre-Feeding System | |
| Aggregate Transfer | Belt | - |
| Air Compressor | Piston Type (7,5 kW) | - |
| Cement Weighing Hopper | 1.000 kg | - |
| Water Weighing Hopper | 700 kg | - |
| Additive Weighing Hopper | 20 kg | - |
| Cement Screw Conveyor | Ø 273 x 15.000 mm | - |
Click for the comparison table of technical specifications of Crash Crusher Mobile Concrete Batching Plants.
