Crash Crusher WHATSAPP160 m³/hour

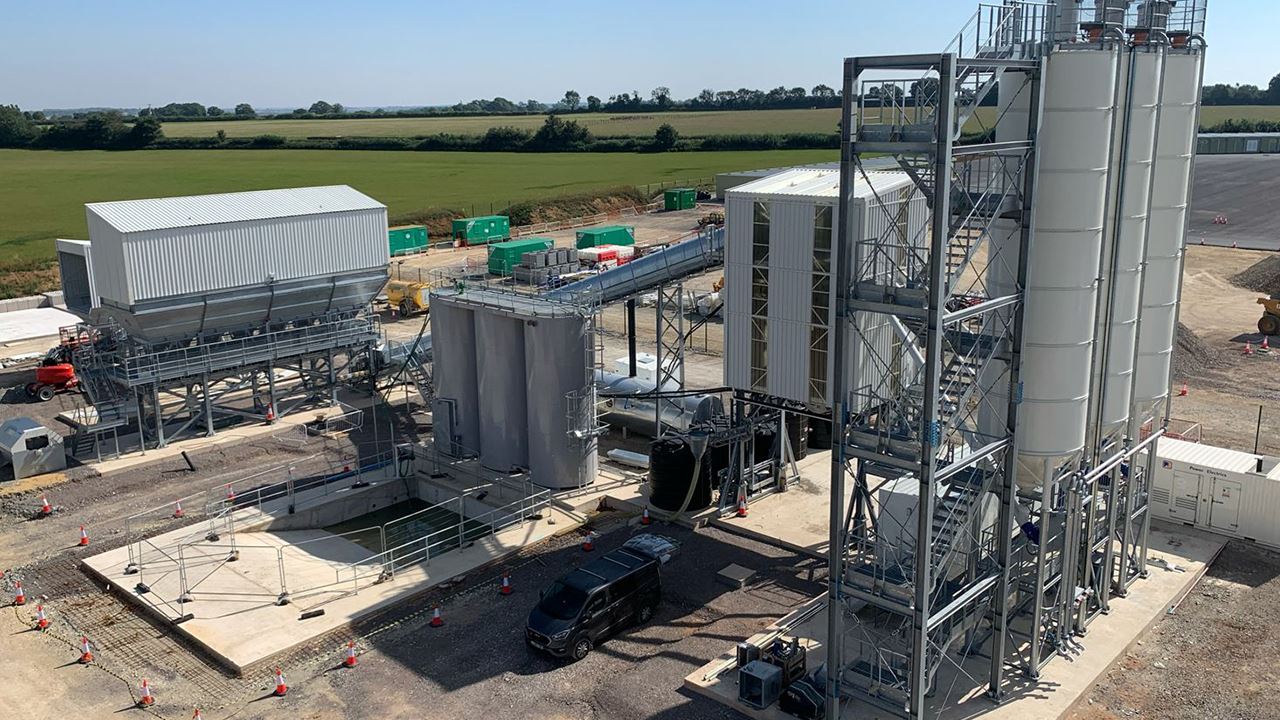

K 200 Stationary Concrete Batching Plant
K 200 model, which is the biggest in Crash Crusher stationary batching plants range with a single mixer, is designed for maximum capacity, flexibility, efficiency, and reliability for producing all types of high-quality mass production.
PLANT CAPACITY
CONCRETE MIXER
Twinshaft Mixer
5,0 m³/cycle
2x90 kW
STORAGE & FEEDING
5x25 m³ Inline Type / 5x35 m³ Inline Type
Ramp or Pre-Feeding System
HOPPERS
2.250 kg
1.200 kg
60 kg
HIGHLIGHTS / K-200
- Ultra Performance and Smart Solution
Crash Crusher K 200 Stationary concrete batching plants are flexible, durable, and give class-leading productivity. The plant is preferred by contractors for ready-mix concrete needs, and ready-mix concrete firms for an efficient, unique, and fast solution. - Flexibility to produce any type of concrete
A powerful 5,0 m³ Twin-shaft mixer offers a wide range of concrete applications such as RCC (Roller Compacted Concrete), road pavement, and others. A wide range of options makes these plants highly configurable for any specific needs. - High Aggregate Storage Capacity
K 200 Stationary concrete plant comes with separate high aggregate storage capacity bins. While offering 5x25 m³ capacity as a standard much more variants are among the possible options. The aggregate bins have got 2 or 4 independently controlled pneumatic discharge gates per compartment. - Highly Configurable
High capacity is very important during mass production but it also must be flexible to meet any request coming from the market. K 200 is one of the most configurable models in its segment. Twin discharge, wet&dry option, additional weighing hoppers like GGBS, Microsilica (dry or slurry), Ice, and many other options are all available to be used on any K 200 concrete batching plant. - Rigid Robust Chassis
Heavy and stable main chassis allows extreme durability, safe transportation, continuous long-life operation and sensitive weighing by minimizing the vibrations to the scales.
K-200 / TECHNICAL SPECIFICATIONS
Metric |
Imperial |
|
| Compacted Concrete Output | 200 m³/h | - |
| Mixer Capacity (Compacted Concrete) | 5,0 m³/cycle | - |
| Mixer Type | Twinshaft Mixer | |
| Mixer Motor Power | 2x90 kW | - |
| Aggregate Bins | 5x25 m³ Inline Type / 5x35 m³ Inline Type | - |
| Aggregate Feeding | Ramp or Pre-Feeding System | |
| Aggregate Transfer | Belt | - |
| Air Compressor | Screw Type (11 kW) | - |
| Cement Weighing Hopper | 2.250 kg | - |
| Water Weighing Hopper | 1.200 kg | - |
| Additive Weighing Hopper | 60 kg | - |
| Cement Screw Conveyor | Ø 323 x 12.000 mm | - |
Click for the comparison table of technical specifications of Crash Crusher Mobile Concrete Batching Plants.
