Crash Crusher WHATSAPP105-117 m³/hour

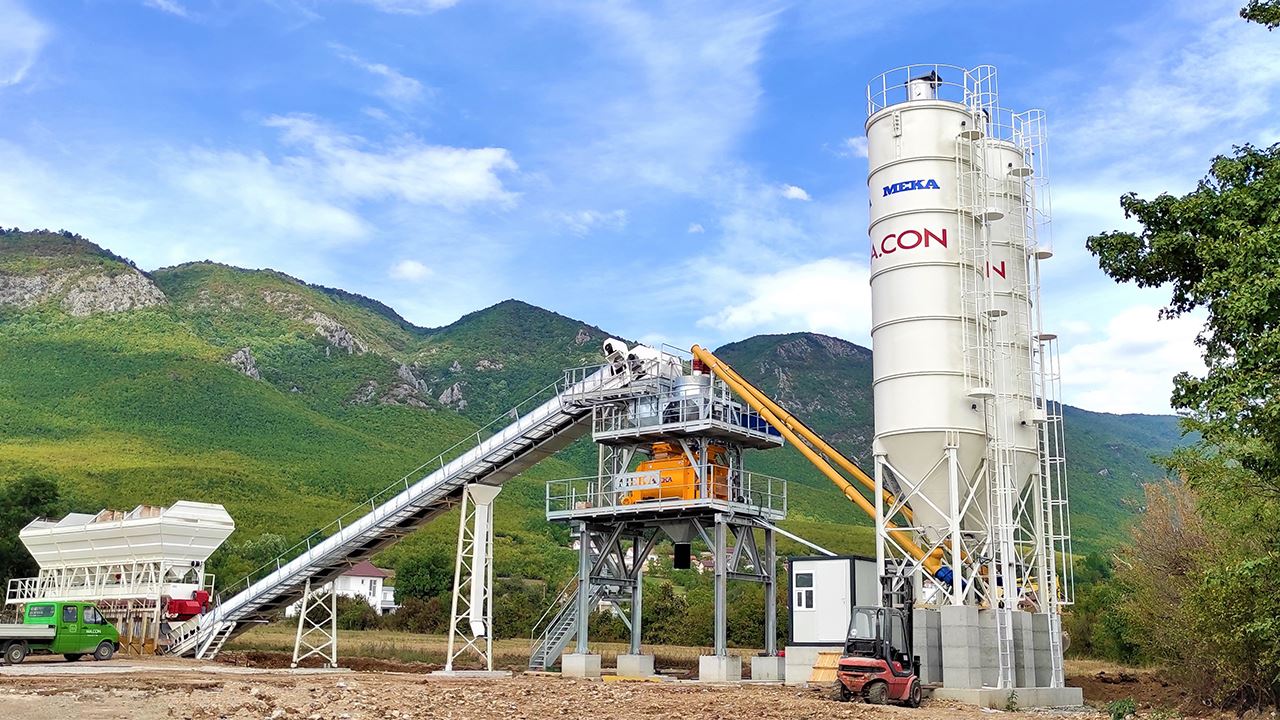

K 110 Stationary Concrete Batching Plant
K 110 Stationary Concrete Batching Plant
WITH GALVANIZED Crash Crusher K 110 BATCH PLANT, WE PROMISE LONG LASTING, RELIABILITY AND PERFORMANCE
K 110 model is designed for maximum capacity, flexibility, efficiency, and reliability for producing all types of high-quality in mass production. Fully galvanized modular main chassis allows easy transportation in 40'OT containers and perfect rust protection for longevity.
PLANT CAPACITY
CONCRETE MIXER
Twinshaft Mixer
2,25 m³/cycle
2x37 kW
STORAGE & FEEDING
4x25 m³ Inline Type / 4x35m³ Inline Type
Ramp or Pre-Feeding System
HOPPERS
1.250 kg
700 kg
20 kg
HIGHLIGHTS / K-110
- Multi-Purposed Production
Thanks to its multi-purpose Crash Crusher Twin Shaft Mixer located at the heart of the plant, the K 110 can produce any type of concrete (Ready-mix concrete, CVC, precast, etc). This exceptional productivity power gives the investor a significant business advantage. - Ultra Performance and Smart Solution
Crash Crusher K 110 Compact concrete batching plants are flexible, durable, and give class-leading productivity. The plant is preferred by contractors for ready-mix concrete needs, and ready-mix concrete firms for an efficient, unique, and fast solution. - Extra Production Capacity
The plant has max concrete production capacity due to its additional aggregate holding hopper which shortens the cycle time. - Hot Dip Galvanized Construction
A completely galvanized heavy and stable main chassis allows extreme durability, safe transportation, continuous long-life operation, and sensitive weighing by minimizing the vibrations to the scales. - Suitable for Container Transport
Concerned about Transport costs? Nowhere is too far or too expensive to supply or purchase a proper concrete batching plant, as our K 110 compact model fits in standard 40’ OT containers. - High Aggregate Storage Capacity
K 110 Compact concrete plant comes with separate high aggregate storage capacity bins. While offering 4x25 m³ capacity as a standard much more variants are among the possible options. The aggregate bins have got 2 or 4 independently controlled pneumatic discharge gates per compartment.
K-110 / TECHNICAL SPECIFICATIONS
Metric |
Imperial |
|
| Compacted Concrete Output | 105-117 m³/h | - |
| Mixer Capacity (Compacted Concrete) | 2,25 m³/cycle | - |
| Mixer Type | Twinshaft Mixer | |
| Mixer Motor Power | 2X37 kW | - |
| Aggregate Bins | 4x25 m³ Inline Type / 4x35m³ Inline Type | - |
| Aggregate Feeding | Ramp or Pre-Feeding System | |
| Aggregate Transfer | Belt | - |
| Air Compressor | Piston Type (7,5 kW) | - |
| Cement Weighing Hopper | 1.250 kg | - |
| Water Weighing Hopper | 700 kg | - |
| Additive Weighing Hopper | 20 kg | - |
| Cement Screw Conveyor | Ø 273 x 11.500 mm | - |
Click for the comparison table of technical specifications of Crash Crusher Mobile Concrete Batching Plants.
