Crash Crusher WHATSAPP120 m³/hour

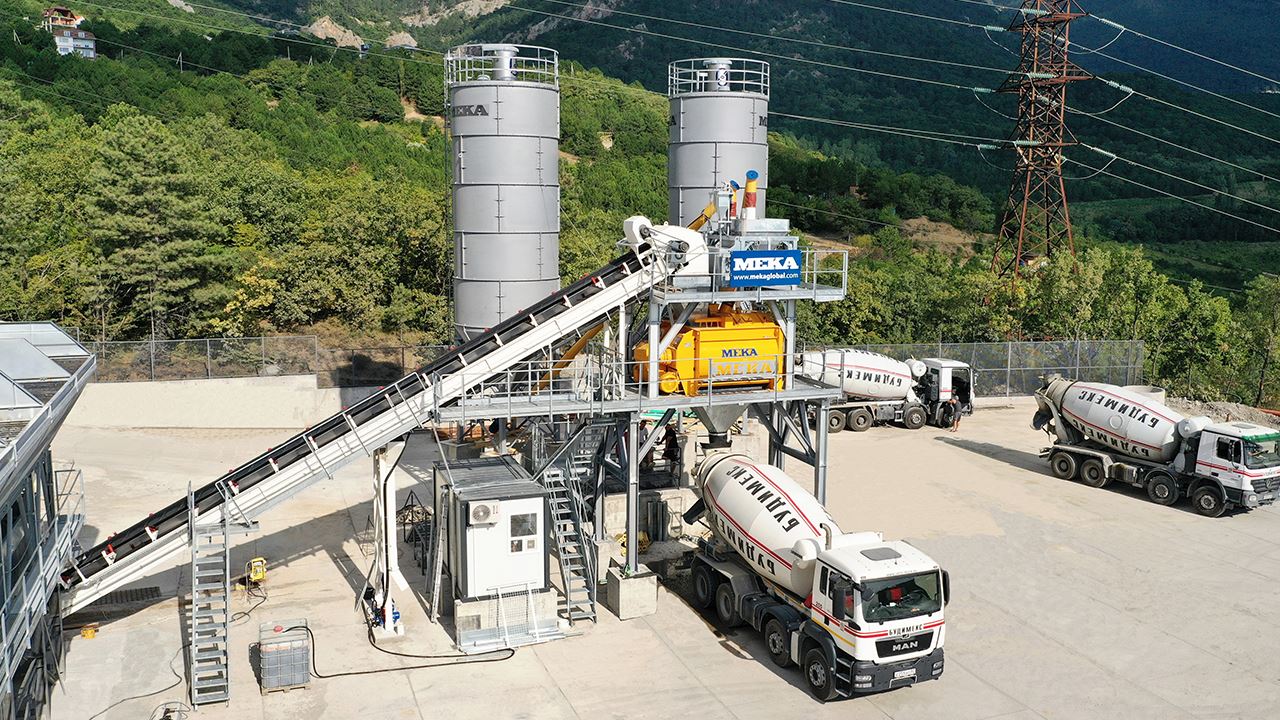

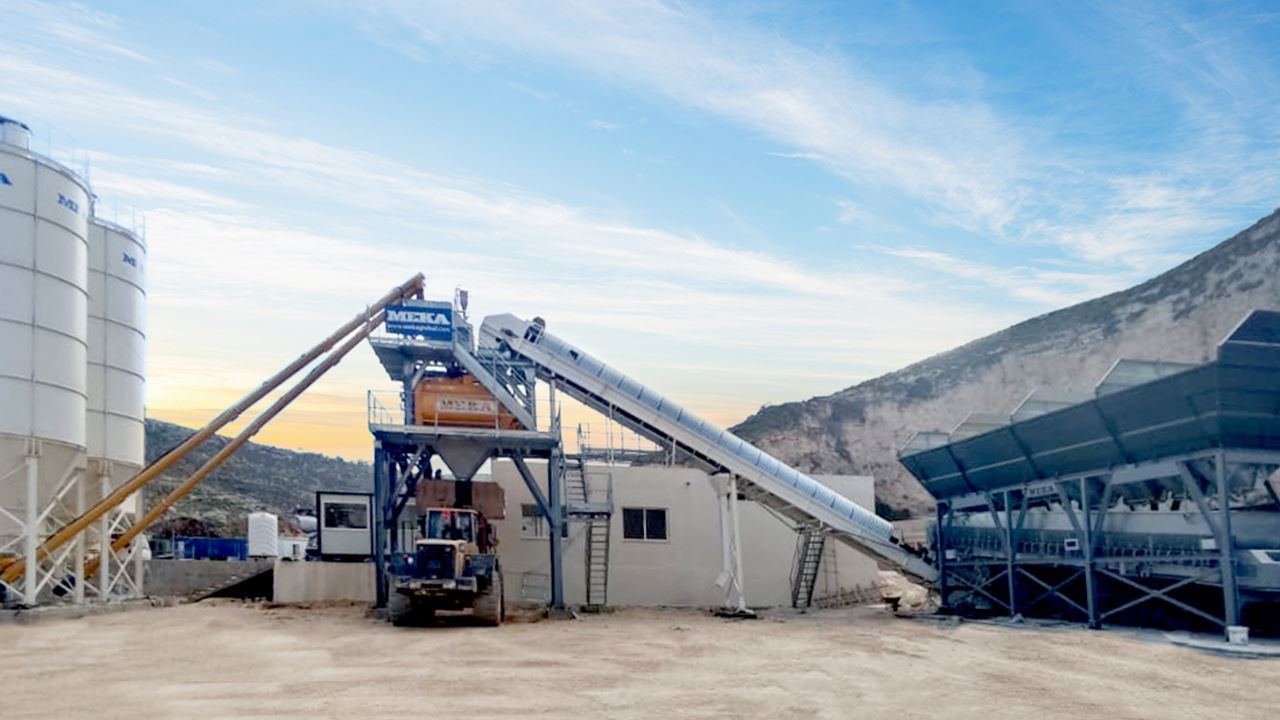

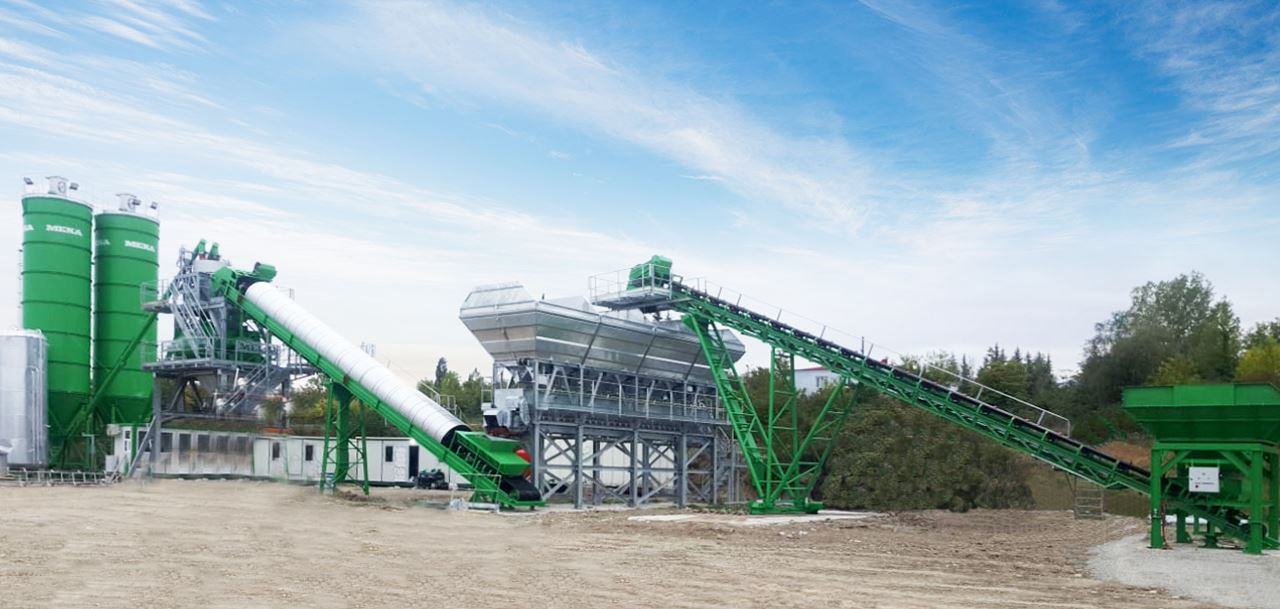

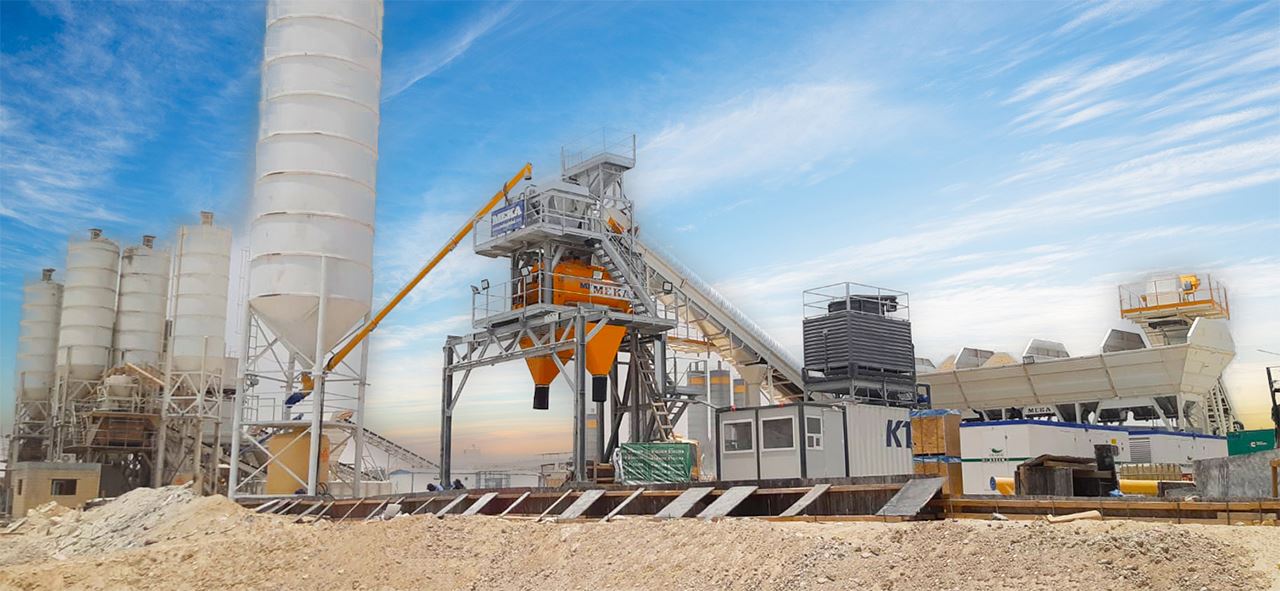

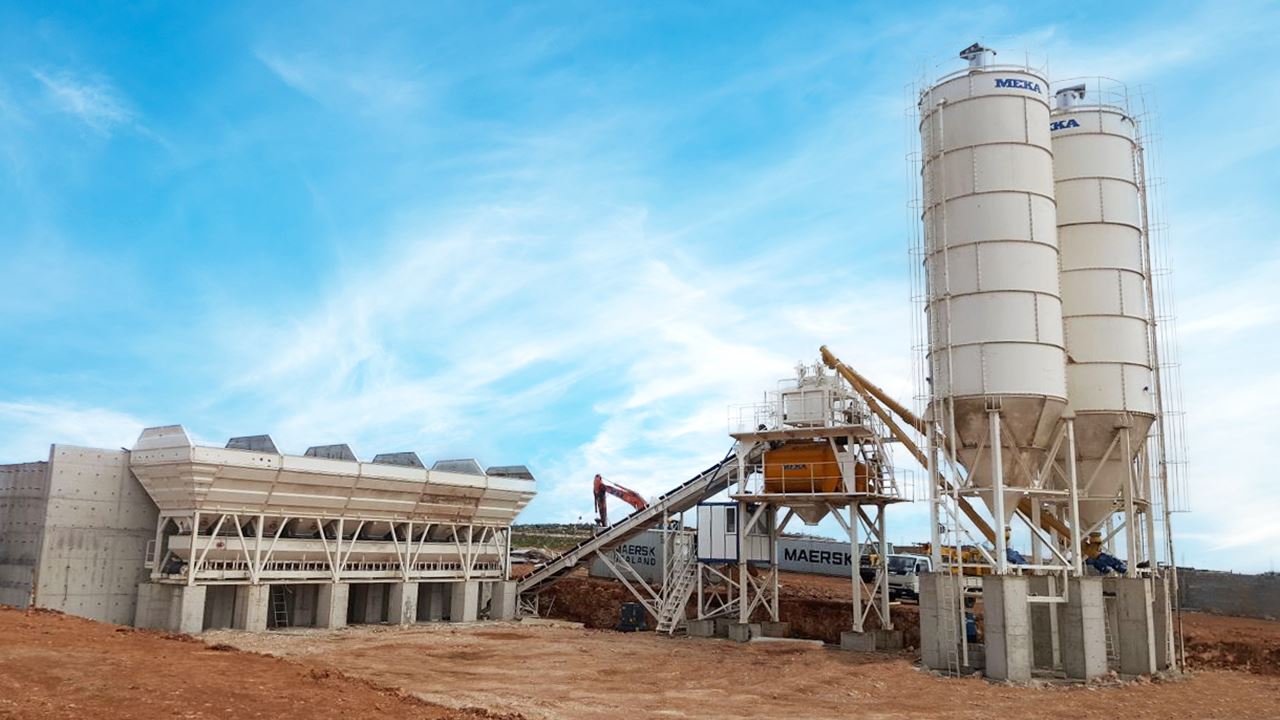

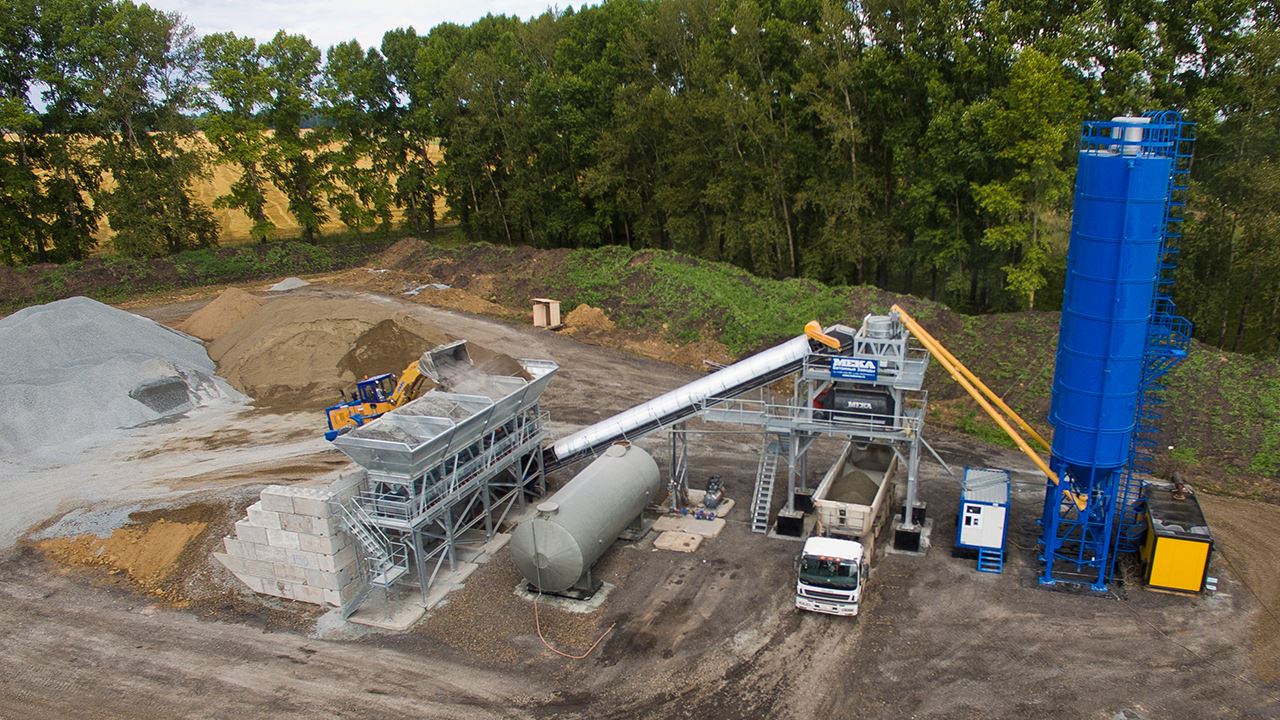

C120 Compact Concrete Batching Plants
C120 Compact Concrete Batching Plants
ENGINEERED FOR SPACE SAVING AND HIGH PRODUCTIVITY
C 120 model is the best choice for mass production on any work site. Combining the durability, and high performance of stationary batching plants with the flexibility of the compact design it becomes an unmatched solution for every professional. The installation requires minimum or no foundations, reducing operational costs and bringing mobility to a new level.
PLANT CAPACITY
CONCRETE MIXER
Twinshaft Mixer
3,33 m³/cycle
2x55 kW
STORAGE & FEEDING
4x25 m³ Inline Type / 4x35 m³ Inline Type
Ramp or Pre-Feeding System
HOPPERS
1.750 kg
1.000 kg
40 kg
HIGHLIGHTS / C120
- Multi Purposed Production
Thanks to its multi-purpose Crash Crusher Twin Shaft Mixer located at the heart of the plant, the C 120 can produce any type of concrete (Ready-mix concrete, CVC, precast, etc). This exceptional productivity power gives the investor a significant business advantage. - Ultra-Performance and Smart Solution
Crash Crusher C 120 Compact concrete batching plants are flexible, durable, and give class-leading productivity. The plant is preferred by contractors for ready-mix concrete needs, and ready-mix concrete firms for an efficient, unique, and fast solution. - Hot Dip Galvanized Construction
A completely galvanized heavy and stable main chassis allows extreme durability, safe transportation, continuous long-life operation, and sensitive weighing by minimizing the vibrations to the scales. - Suitable for Container Transport
Concerned about Transport costs? Nowhere is too far or too expensive to supply or purchase a proper concrete batching plant, as our C 120 compact model fits in standard 40’ OT containers. - High Aggregate Storage Capacity
C 120 Compact concrete plant comes with separate high aggregate storage capacity bins. While offering 4x25 m³ capacity as a standard much more variants are among the possible options. The aggregate bins have got 2 or 4 independently controlled pneumatic discharge gates per compartment and are the same as stationary model plants’ bins. - Quick Start-Up Time
C 120 compact concrete plants are designed to minimize work on-site during installation and are pre-wired with maximum equipment installed, plumbed, and tested at the manufacturing facilities.
C120 / TECHNICAL SPECIFICATIONS
Metric |
Imperial |
|
| Compacted Concrete Output | 120 m³/h | - |
| Mixer Capacity (Compacted Concrete) | 3,33 m³/cycle | - |
| Mixer Type | TwinShaft Mixer | |
| Mixer Motor Power | 2x55 kW | - |
| Aggregate Bins | 4x25 m³ Inline Type / 4x35 m³ Inline Type | - |
| Aggregate Feeding | Ramp or Pre-Feeding System | |
| Aggregate Transfer | Belt | - |
| Air Compressor | Piston Type (7,5 kW) | - |
| Cement Weighing Hopper | 1.750 kg | - |
| Water Weighing Hopper | 1.000 kg | - |
| Additive Weighing Hopper | 40 kg | - |
| Cement Screw Conveyor | Ø 273 x 15.000 mm | - |
Click for the comparison table of technical specifications of Crash Crusher Mobile Concrete Batching Plants.
LEARN MORE ABOUT THE PRODUCT
Didn’t find what you are looking for? Feel free to get in touch with us. Just call +90-312-397-91-33 and we will help you in any way we can. You can also send an e-mail to [email protected], or fill in the inquiry form if you would like to pass us a detailed inquiry or project information. Use the Call Back option if you would like to be contacted by our sales team.
